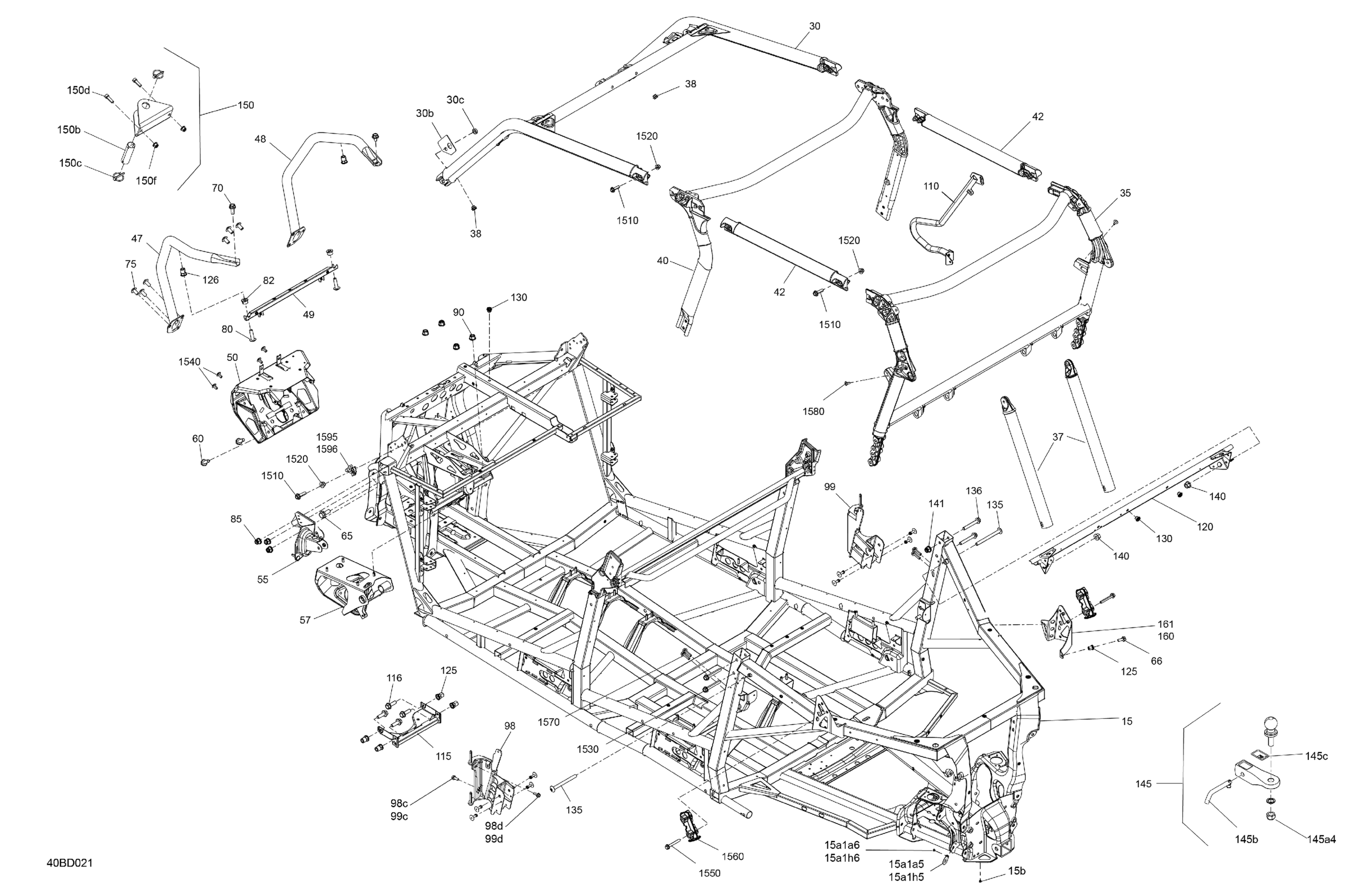

Can-Am CE - Maverick MAX Sport 1000R - DPS - 9JRC - Fiery Red Metallic - 60" Width ABS, 2024 Frame - System Diagram

#

Description
Price

15

Chassis Ass'y | Includes 15 to 15a2y3

715008770

$2,969.99

15a1a5

Shim

705209479

$2.96

15a1a6

Pop Rivet 3/16 X ,425

293150293

$0.30

15a1h5

Shim

705209479

$2.96

15a1h6

Pop Rivet 3/16 X ,425

293150293

$0.30

15b

Pop Rivet 3/16 X ,425

293150293

$0.30

30

Deep Black, Front Cage Kit | Includes 30 to 30c

715009362

$619.99

30b

Shim

705210164

$11.18

30c

Bushing

705210165

$34.30

35

Deep Black, Rear Cage Ass'y

715009349

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.91

40

Mid Cage Max

703501203

$519.99

42

Deep Black, Cage Extension

705209848

$41.99

47

LH Front Bumper

705206303

$107.43

48

RH Front Bumper

705206308

$107.43

49

Cross Member

705206313

$35.79

50

Deep Black, Front Bumper

705209043

$453.70

55

Brake Support

705206217

$46.24

57

DPS Support

705206294

$64.15

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

75

Torx Truss Screw M8 X 16

250000746

$3.19

80

Hex Torx Truss M8 X30

250000745

$2.96

82

Bushing

705207229

$10.67

85

Hex. Elastic Flange Nut M8

233281416

$1.43

90

Hex. Elastic Flange Nut M8

233281416

$1.43

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$422.36

98c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

98d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.88

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$422.36

99c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

99d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.88

110

RH Protector Tube (Sandtex Black)

705207629

$64.15

115

Bearing Support

705211563

$44.00

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

120

Central Tube

705209434

$142.51

125

Insert Half Hex Body M8 x 1.25

293450307

$1.97

126

Insert Half Hex Body M8 x 1.25

293450307

$1.97

130

Insert Half Hex Body M6 x 1.0

250100199

$2.91

135

Torx Truss M8 X 90

250000806

$7.06

136

Torx Screw M6 X 70

250000954

$1.79

140

Hex. Flange Nut M8

233081416

$1.87

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

145

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

145a4

Elastic Flange Nut M20

250100104

$11.15

145b

Hitch Pin

705204490

$52.96

145c

Hitch Approval Decal

704906897

$16.39

150

Front Anchorage Strap Ass'y | Includes 150 to 150f

705211695

$43.25

150b

Deep Black, Tube

705211696

$13.85

150c

Pin

605456518

Unavailable

150d

Socket Screw M10 x 30 | XT

205003044

$3.00

150f

Hex. Flange Elastic Nut M10

233201414

$1.45

160

LH Rear Anchorage Support

705211569

$17.88

161

RH Rear Anchorage Support

705211571

$17.88

1510

Hex. Flange Screw M10 X 35

250000855

$1.67

1520

Flange Elastic Nut M10

233201466

$3.01

1530

Hex. Flange Screw M10 X 70

207607056

$3.88

1540

Torx Truss Screw M8 X 16

250000746

$3.19

1550

Hex. Flange Screw M8 x 60

207686044

$2.94

1560

Sleeve

705210648

$8.42

1570

Hex. Flange Screw M10 X 25

207502546

$2.00

1580

Torx Truss M/S M8 X 20

250000953

$2.00

1595

LH Front Anchorage

705209913

$34.30

1596

RH Front Anchorage

705209914

$34.30
