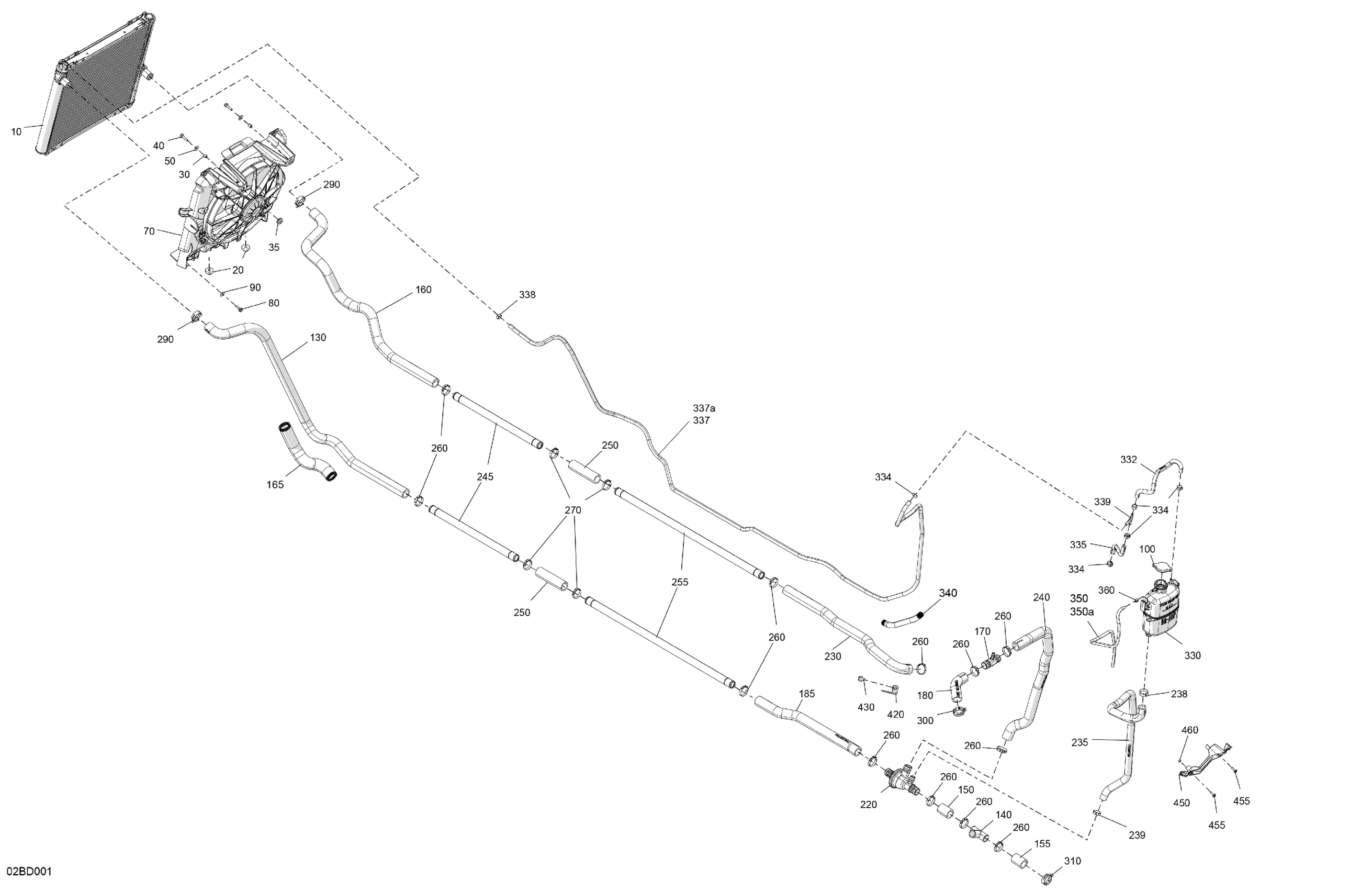

Can-Am CE - Maverick MAX Sport 1000R - DPS - 9JRC - Fiery Red Metallic - 60" Width ABS, 2024 Engine - Cooling Diagram

Description

Price

Radiator

709200703

$350.74

Grommet

709200948

$7.09

Bushing

293900105

$6.26

Overmolded Grommet

293720130

$4.38

Hex. Flange Screw M6 X 25

207662544

$0.53

Flat Washer 6 mm

234062410

$0.64

Fan Ass'y

709200665

$313.82

Hex. Flange Screw M6 X 20

207662044

$1.66

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

130

Radiator Inlet hose

709200793

$64.58

140

T-Fitting

509001313

$15.35

150

Pump Hose

709200672

$8.45

155

Pump Hose

709200672

$8.45

160

Radiator Outlet Hose

709200797

$36.89

165

Tubing 35 MM 1000MM Long

219704428

$8.57

170

T-Fitting

509000510

$11.52

180

Intermediate Outlet Hose

709200729

$36.89

185

Intermediate Inlet Hose

709200794

$41.51

220

Thermostat Housing

709200967

$101.51

230

Radiator Hose

709200795

$10.98

235

Coolant Tank Hose

709200736

$36.89

238

Oetiker Gear Clamp

293650165

$4.32

239

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

240

Thermostat Inlet Hose

709200796

$36.89

245

Heater Tubing

709200664

$13.98

250

Hose

709200742

$13.52

255

Heater Tubing

709200657

$13.98

260

Gear Clamp

509000162

$7.37

270

Gear Clamp

509000162

$7.37

290

Norma Spring Clamp

293650166

$4.28

300

Norma Spring Clamp

293650166

$4.28

310

Norma Spring Clamp

293650166

$4.28

330

Coolant Tank

709201323

$78.43

332

Bleeding Hose

709200799

$23.05

334

Crimp Clamp, 15.3-706R

293650047

$2.64

335

Bleeding Hose

709200717

$18.43

337

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$10.00

337a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$10.00

338

Oetiker Clamp

293650042

$1.40

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.83

420

Hose Support

709201348

$9.29

430

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

450

Support

709200746

$4.60

455

Screw PT Type K-50 X 16

250000959

$1.74

460

Bushing

709200761

$10.68
