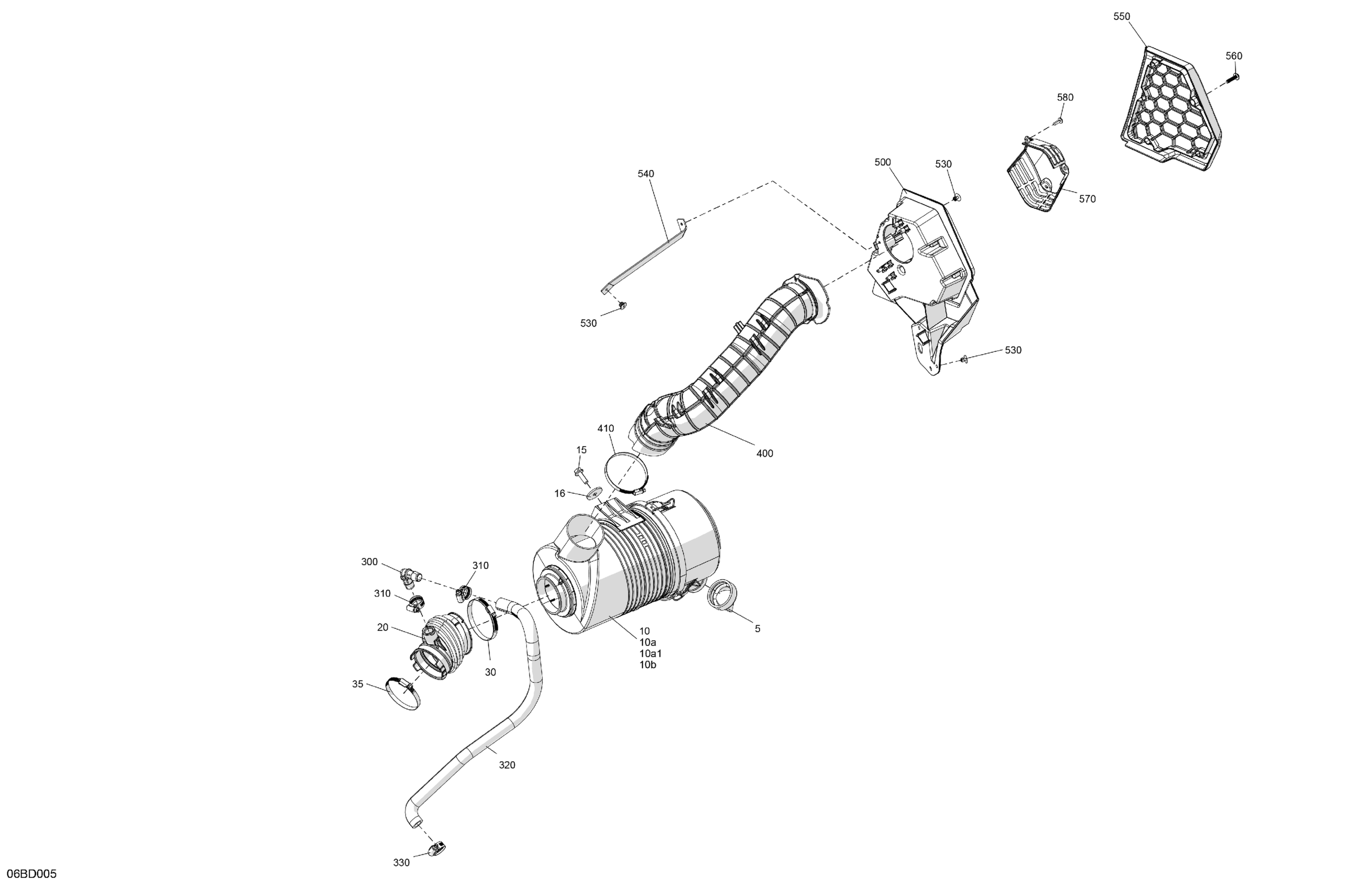

Can-Am CE - Maverick MAX Sport 1000R - DPS - 9JRC - Fiery Red Metallic - 60" Width ABS, 2024 Engine - Air Intake Diagram

Description

Price

Duct Bill Valve

715003114

$13.49

Air Box | Includes 10 to 10b

707801034

$194.99

10a

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$22.49

10a

Silencer-Air Cover | Includes 10a to 10a1

715900528

$93.99

10a1

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$22.49

10b

Air Filter

715900422

$52.99

Hex. Flange Screw M8 X 25

207682544

$1.35

Flat Washer M8

250200158

$2.11

Air Intake Adapter

707800754

$28.99

Norma Clamp

293650096

$3.17

Norma Clamp

293650091

$11.12

300

Elbow Fitting 90

293710155

$9.39

310

Tridon Gear Clamp

293650173

$3.09

320

Blow-By Hose

707800755

$28.99

330

Tridon Gear Clamp

293650173

$3.09

400

Inlet Hose

707800756

$46.49

410

Norma Clamp

293650096

$3.17

500

Air Intake Box

707800865

$37.99

530

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

540

Duct Support

707801109

$5.39

550

Air Intake Grid

707800751

$48.99

560

Hex. Screw Pt K60 X 25

250000980

$2.11

570

Baffle

707800762

$19.99

580

Torx Screw K50 X 16

250000720

$1.69
