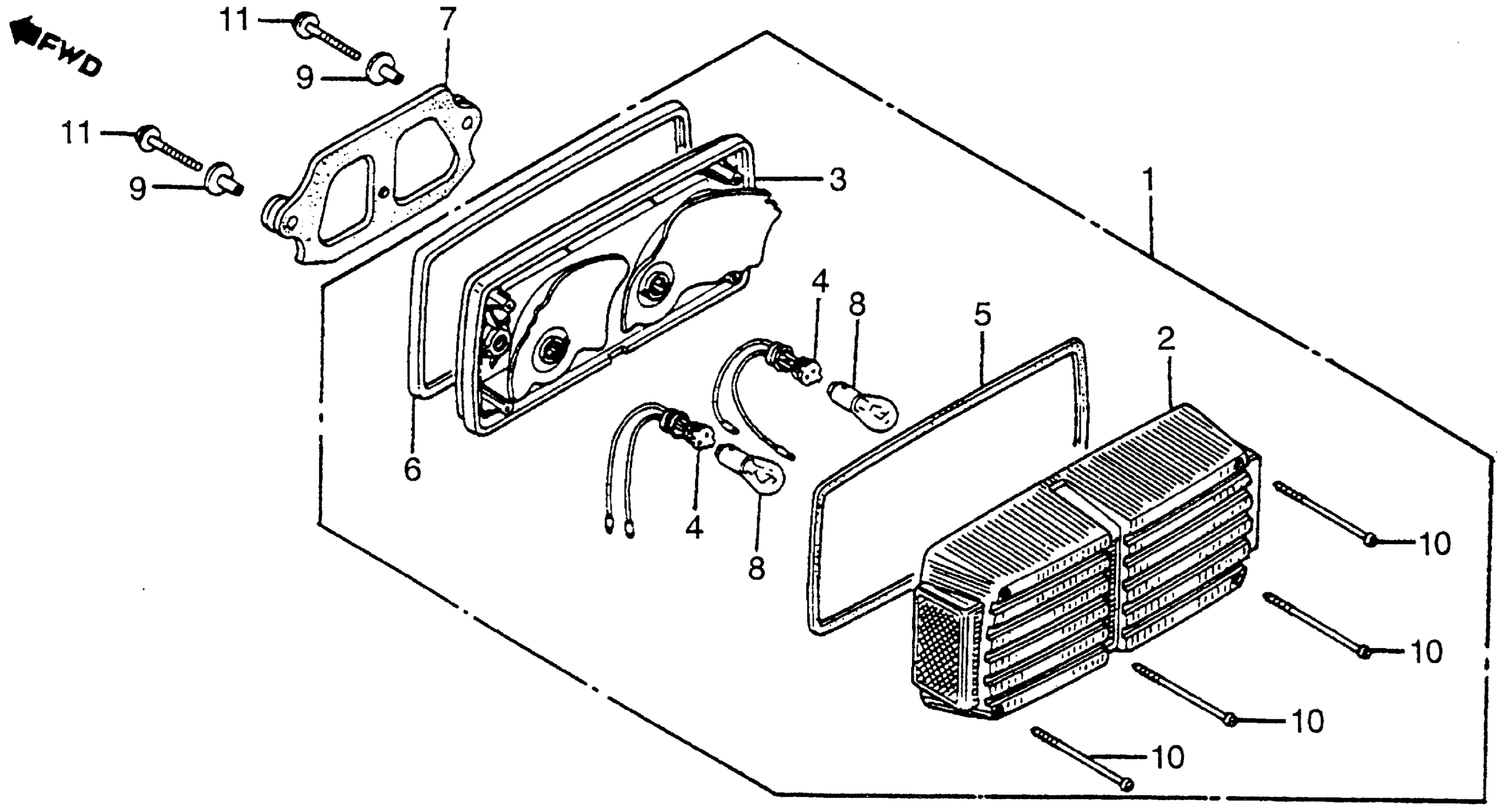

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-463-671

Unavailable

2

LENS, TAILLIGHT

33702-422-671

Unavailable

3

BASE B, TAILLIGHT (NOT AVAILABLE)

33703-463-670

Unavailable

4

CABLE, TAILLIGHT This part replaces 33708-371-601.

33708-147-003

Unavailable

5

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33709-422-003

Unavailable

6

RIM, TAILLIGHT (NOT AVAILABLE)

33710-422-003

Unavailable

7

RUBBER, TAILLIGHT SETTING (NOT AVAILABLE)

33715-463-000

Unavailable

8

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$3.95

8

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$3.95

9

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

9

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

10

SCREW, TAPPING (4X60)

90147-147-671

$2.50

11

BOLT, FLANGE (6X25)

95700-06025-08

$1.79

11

BOLT, FLANGE (6X25)

95701-06025-08

$1.79
