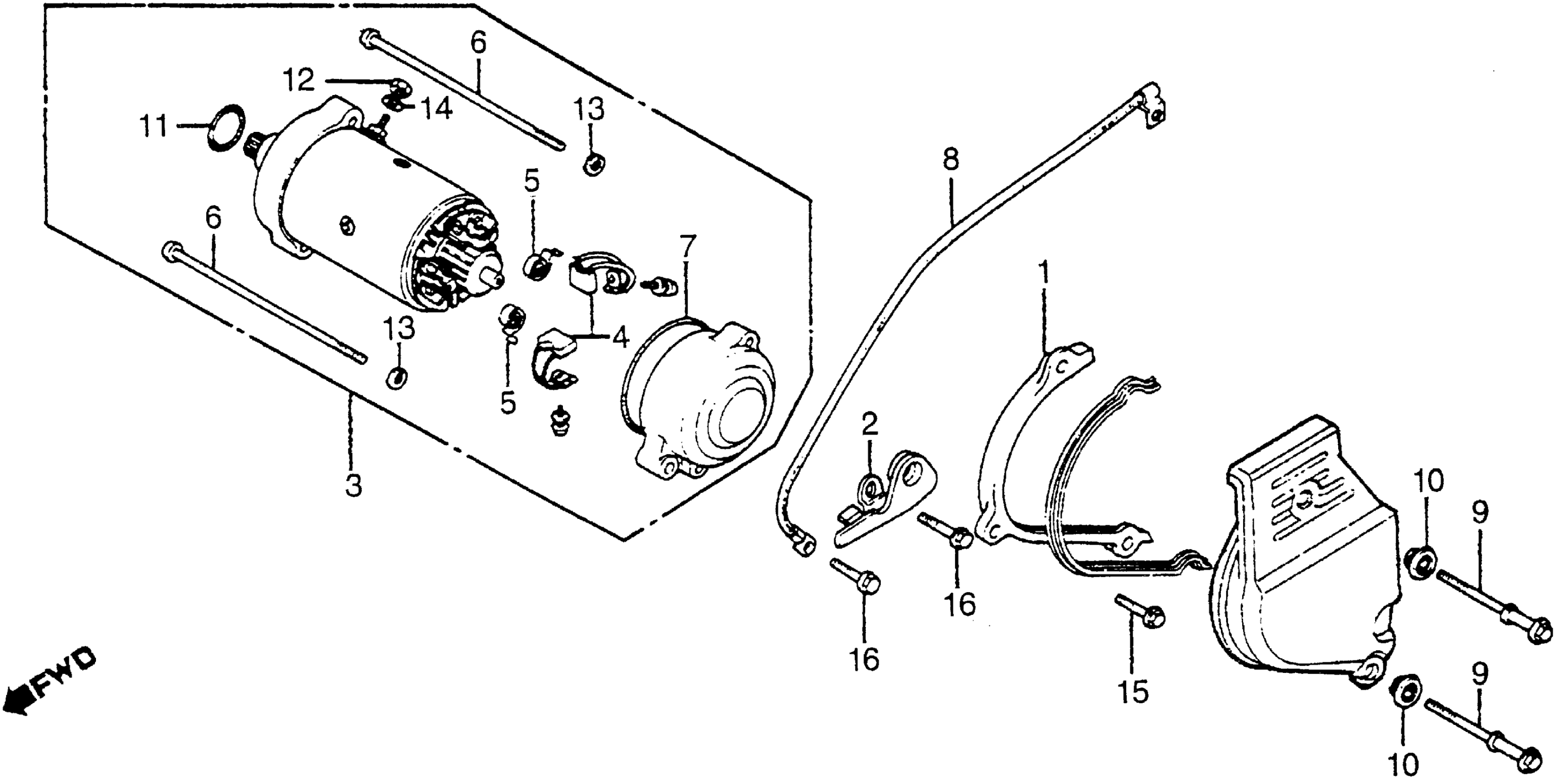

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 STARTER MOTOR Diagram

#

Description
Price

1

SPACER, L. RR. COVER (NOT AVAILABLE)

11342-422-000

Unavailable

2

PROTECTOR, CHAIN (NOT AVAILABLE)

11344-422-000

Unavailable

3

STARTER MOTOR ASSY. This part replaces 31200-MA2-000.

31200-MA2-405

Unavailable

4

BRUSH SET, CARBON

31201-292-158

$26.15

5

SPRING, CARBON BRUSH

31204-292-158

$3.83

6

BOLT, STARTER MOTOR COVER (NOT AVAILABLE)

31205-413-780

Unavailable

7

O-RING (60X1.4)

31206-402-008

Unavailable

8

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-422-000

Unavailable

9

BOLT, SPECIAL (6X64) (NOT AVAILABLE)

90048-422-003

Unavailable

10

RUBBER B, SETTING (NOT AVAILABLE)

90542-422-000

Unavailable

11

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1)

91312-MG7-003

$6.34

12

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

12

NUT, HEX. (6MM)

94002-06000-0S

$1.49

13

WASHER, SPRING (5MM)

94111-05000

$1.49

14

WASHER, SPRING (6MM)

94111-06000

$1.49

15

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

15

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

16

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

16

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
