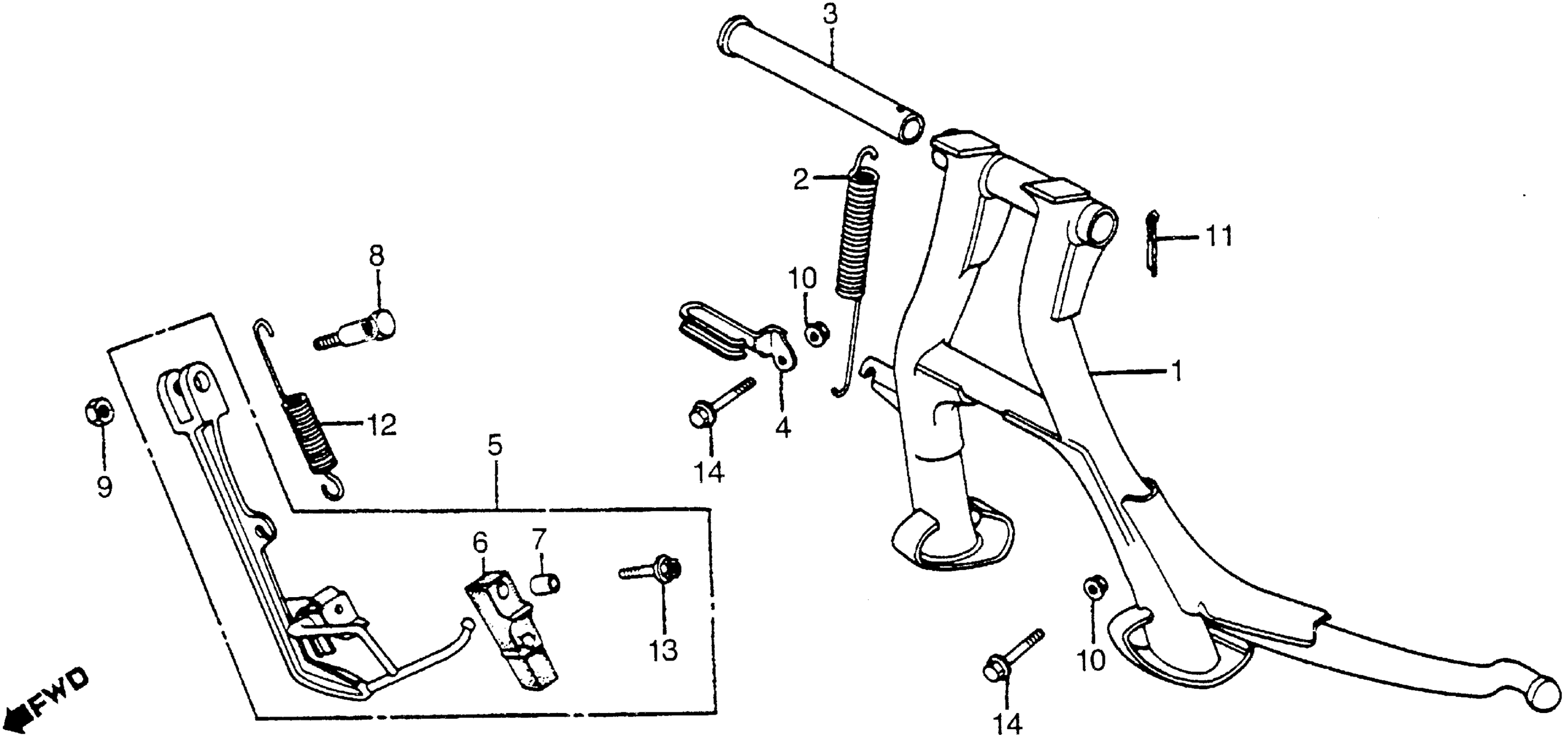

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 STAND Diagram

#

Description
Price

1

STAND, MAIN (NOT AVAILABLE)

50500-MA2-000

Unavailable

2

SPRING, MAIN STAND (NOT AVAILABLE)

50510-MA2-000

Unavailable

3

PIPE, MAIN STAND PIVOT (NOT AVAILABLE)

50526-MA2-000

Unavailable

4

GUIDE, DRAIN PIPE (NOT AVAILABLE)

50527-MA2-000

Unavailable

5

STAND ASSY., SIDE (NOT AVAILABLE)

50540-MA2-000

Unavailable

6

RUBBER, STAND

50548-356-700

$9.63

7

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.50

8

BOLT, SIDE STAND PIVOT (NOT AVAILABLE)

90108-422-000

Unavailable

9

NUT, HEX. (12MM)

94002-12080-0S

$1.60

10

NUT, FLANGE (6MM)

94050-06080

$0.60

11

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.96

11

PIN, SPLIT (2.5X30)

94201-25300

$0.96

12

SPRING D, SIDE STAND

95014-72402

$2.80

13

BOLT, FLANGE (6X28)

95700-06028-00

$1.68

13

BOLT, FLANGE (6X28)

95701-06028-00

$1.68

14

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.69

14

BOLT, FLANGE (6X40)

95701-06040-08

$1.69
