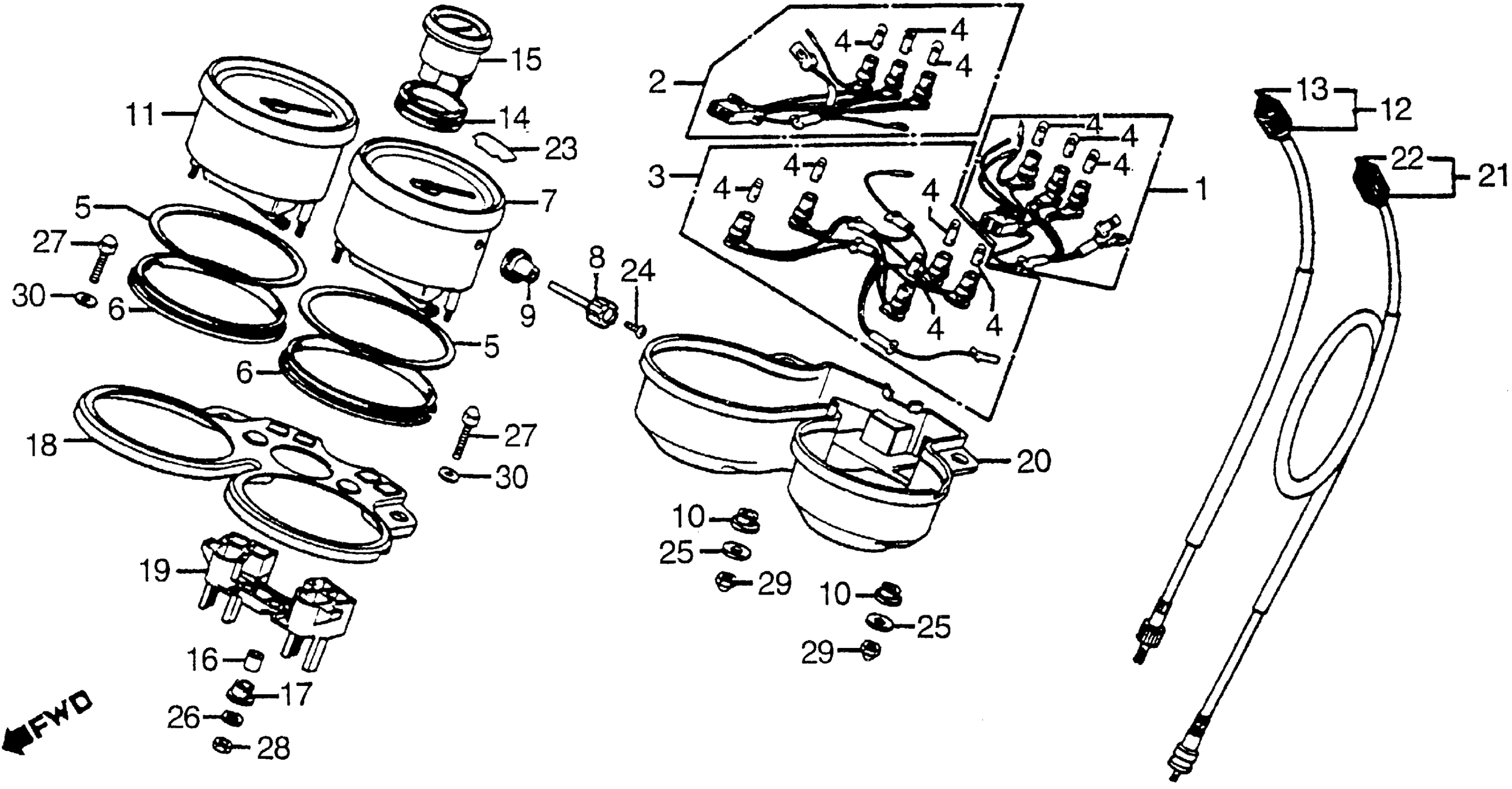

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

SUB-WIRE HARNESS H (NOT AVAILABLE)

32108-MA2-008

Unavailable

2

SUB-WIRE HARNESS I (NOT AVAILABLE)

32109-MA2-008

Unavailable

3

SUB-WIRE HARNESS J (NOT AVAILABLE)

32110-MA2-008

Unavailable

4

BULB, DASH (12V 3.4W) (STANLEY)

34902-259-000

$2.18

5

RING, METER (NOT AVAILABLE)

37114-422-008

Unavailable

6

CUSHION, METER (NOT AVAILABLE)

37115-469-000

Unavailable

7

SPEEDOMETER ASSY. (85) (MPH) (NOT AVAILABLE)

37200-MA2-672

Unavailable

8

KNOB, TRIP METER

37220-445-008

Unavailable

9

GROMMET, TRIP KNOB

37221-445-008

Unavailable

10

RUBBER, METER MOUNTING (NOT AVAILABLE)

37244-422-000

Unavailable

11

TACHOMETER ASSY. This part replaces 37250-MB7-740.

37250-MB7-830

Unavailable

11

TACHOMETER ASSY. This part replaces 37250-422-018.

37250-MB7-830

Unavailable

12

CABLE ASSY., TACHOMETER This part replaces 37260-422-000.

44830-165-415

Unavailable

12

CABLE ASSY., TACHOMETER

44830-165-415

Unavailable

13

CABLE, TACHOMETER (INNER) (NOT AVAILABLE)

37261-422-300

Unavailable

14

CUSHION, VOLTMETER (NOT AVAILABLE)

37415-469-000

Unavailable

15

VOLTMETER ASSY. (NOT AVAILABLE)

37420-422-008

Unavailable

16

COLLAR, VOLTMETER SETTING (NOT AVAILABLE)

37423-422-000

Unavailable

17

RUBBER, VOLTMETER SETTING (NOT AVAILABLE)

37424-422-000

Unavailable

18

PLATE, METER STAY (NOT AVAILABLE)

37610-MA2-008

Unavailable

19

BOX, PILOT (NOT AVAILABLE)

37611-MA2-008

Unavailable

20

COVER, METER (LOWER) (NOT AVAILABLE)

37617-MA2-008

Unavailable

21

CABLE ASSY., SPEEDOMETER

44830-KB4-700

Unavailable

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-010.

44830-KB4-700

Unavailable

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-610.

44830-KB4-700

Unavailable

22

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE)

44831-356-000

Unavailable

23

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

24

SCREW, PAN (2X6) This part replaces 90102-434-671.

90600-KJ9-700

Unavailable

24

SCREW, PAN (2X6)

90600-KJ9-700

Unavailable

25

WASHER, PLAIN (5MM) (NOT AVAILABLE)

90508-MA2-000

Unavailable

26

WASHER, SPECIAL (4MM) (NOT AVAILABLE)

90555-357-000

Unavailable

27

BOLT, CAP (8X25) (NOT AVAILABLE)

92600-08025-0G

Unavailable

28

NUT, HEX. (4MM)

94001-04000-0S

$1.49

29

NUT, CAP (5MM)

94021-05070-0S

$1.49

30

WASHER, PLAIN (8MM)

94102-08700

$1.49
