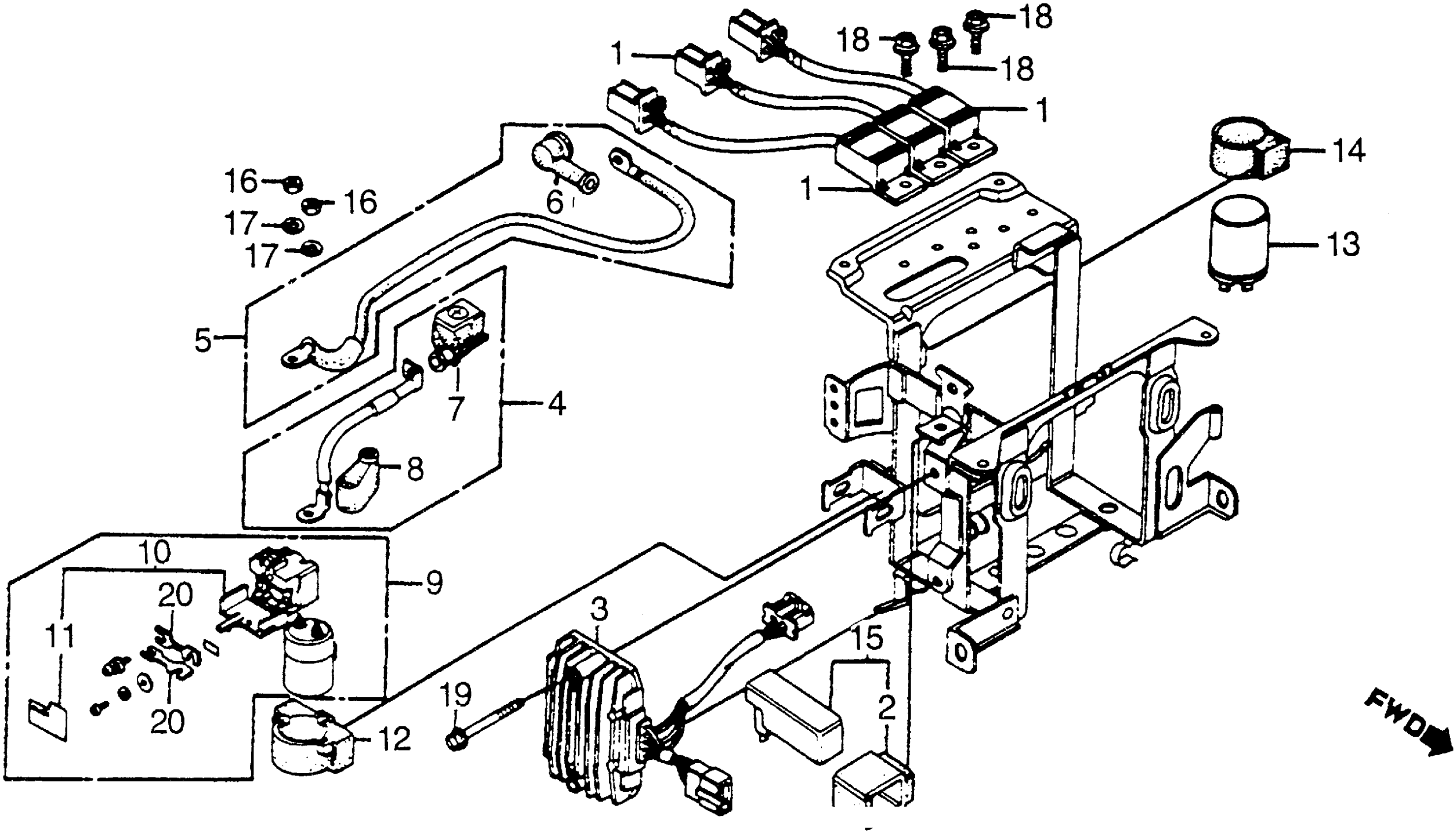

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 SPARK UNIT + RECTIFIER Diagram

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-461-155.

30400-MA4-601

Unavailable

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GB4-770

$5.72

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-958-000.

30401-GB4-770

$5.72

RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)

31600-MA2-008

Unavailable

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-MA2-000

Unavailable

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-MA2-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY

32412-MA2-000

$4.94

COVER B, MG SW This part replaces 32413-MA2-000.

32413-V04-000

$7.68

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-425-017.

35850-MB0-007

$131.64

COVER, FUSE

35852-425-017

Unavailable

LABEL, FUSE COVER (NOT AVAILABLE)

35853-425-300

Unavailable

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

RELAY, TURN SIGNAL This part replaces 38301-415-671.

38300-MG2-008

Unavailable

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

CONTROL UNIT (NOT AVAILABLE)

38900-MA2-000

Unavailable

NUT, HEX. (6MM)

94002-06000-0S

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

FUSE F (30A)

98200-53000

$1.49
