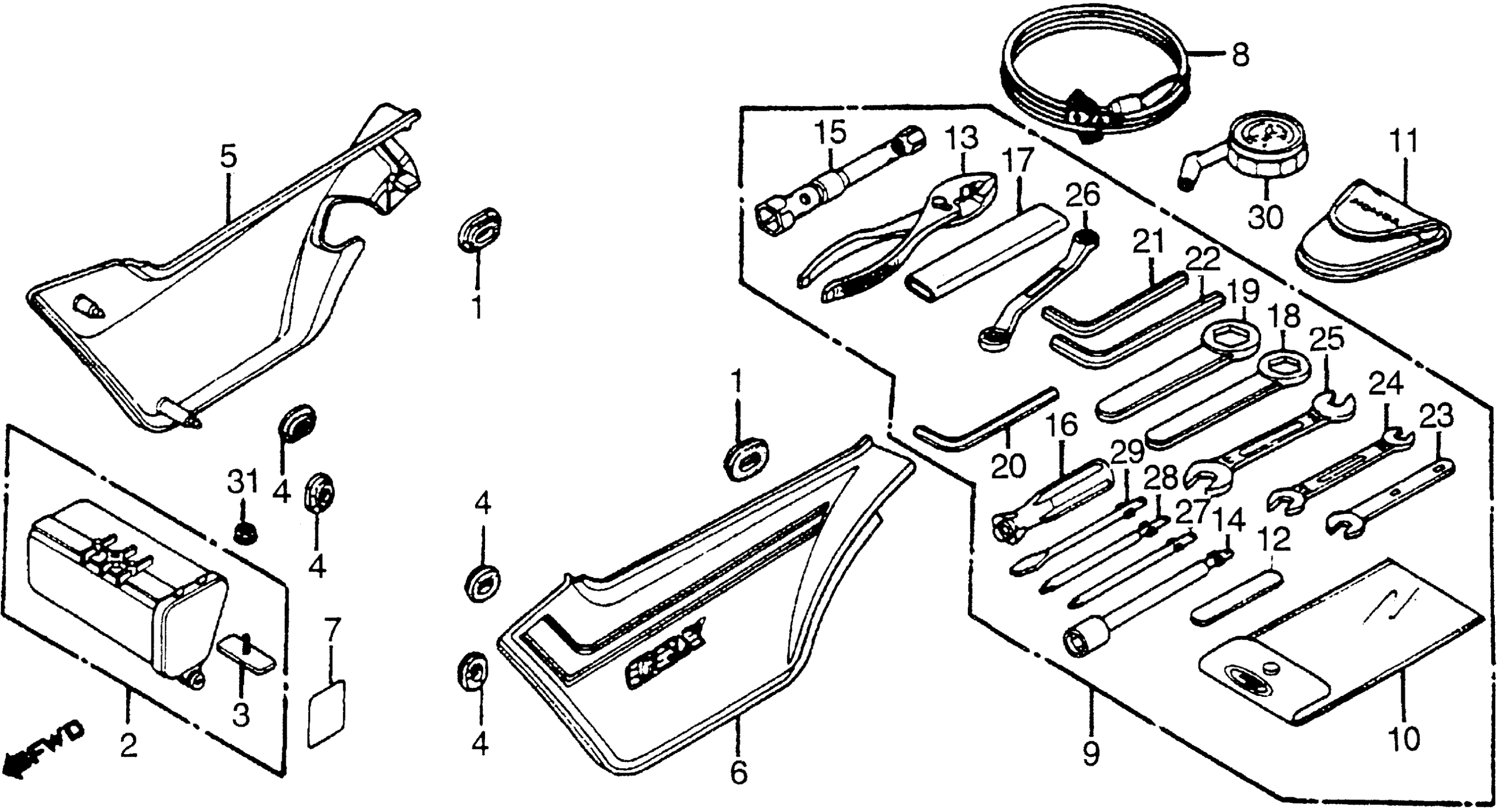

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 SIDE COVER + TOOLS Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

BOX ASSY., TOOL (NOT AVAILABLE)

83501-MA2-000

Unavailable

3

PLATE, TOOL BOX SETTING (NOT AVAILABLE)

83505-MA2-000

Unavailable

4

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

5

COVER, R. SIDE *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

83601-MA2-610ZA

Unavailable

6

COVER, L. SIDE *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

83701-MA2-610ZA

Unavailable

7

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-MA2-670

Unavailable

8

CABLE, SECURITY LOCKING (NOT AVAILABLE)

88800-469-003

Unavailable

9

TOOL SET (NOT AVAILABLE)

89010-MA2-770

Unavailable

10

BAG, TOOL (NOT AVAILABLE)

89101-422-000

Unavailable

11

BAG, AIR PRESSURE GAUGE

89102-469-003

$6.57

12

GAUGE, FEELER (0.7MM)

89103-371-000

$3.31

13

PLIERS (150) (NOT AVAILABLE)

89210-422-000

Unavailable

14

WRENCH, BOX (8MM)

89211-MR7-000

$27.90

14

WRENCH, BOX (8MM) This part replaces 89214-422-000.

89211-MR7-000

$27.90

15

WRENCH, PLUG (NOT AVAILABLE)

89216-422-000

Unavailable

16

GRIP (NOT AVAILABLE)

89216-431-670

Unavailable

17

HANDLE, EYE WRENCH (120MM) (NOT AVAILABLE)

89217-422-000

Unavailable

18

WRENCH, EYE (22MM) (NOT AVAILABLE)

89218-422-000

Unavailable

19

WRENCH, EYE (24MM) (NOT AVAILABLE)

89219-422-000

Unavailable

20

WRENCH, HEX. (5MM)

89221-MA2-770

$6.72

20

WRENCH, HEX. (5MM)

89221-MJ4-000

$6.41

21

WRENCH, HEX. (6MM) (NOT AVAILABLE)

89221-422-000

$29.41

22

WRENCH, HEX. (8MM) (NOT AVAILABLE)

89222-422-000

Unavailable

23

SPANNER, 8 This part replaces 89224-KW9-000.

99001-08000

$6.10

23

SPANNER (8MM)

89224-MA2-000

$6.70

24

SPANNER (10X12) (NOT AVAILABLE)

89225-422-000

Unavailable

25

WRENCH (14X17) (OPEN END) (NOT AVAILABLE)

89226-422-000

Unavailable

26

WRENCH, EYE (10X12) (NOT AVAILABLE) This part replaces 89227-MA2-000.

89227-MN5-000

Unavailable

27

SCREWDRIVER 2, PHILLIPS

89227-422-000

$8.74

28

SCREWDRIVER 3, PHILLIPS (NOT AVAILABLE)

89228-422-000

Unavailable

29

SCREWDRIVER 2, STRAIGHT SLOT

89229-422-000

Unavailable

30

GAUGE, AIR PRESSURE (NOT AVAILABLE) | Use up to Frame SN CC402173

89301-461-003

Unavailable

30

GAUGE, AIR PRESSURE | Use from Frame SN CC402174 This part replaces 89301-MG9-951.

89301-MN5-003

$28.98

30

GAUGE, AIR PRESSURE | Use from Frame SN CC402174

89301-MN5-003

$28.98

30

GAUGE, AIR PRESSURE | Use from Frame SN CC402174 This part replaces 89301-463-771.

89301-MN5-003

$28.98

31

NUT, FLANGE (6MM)

94050-06080

$1.49
