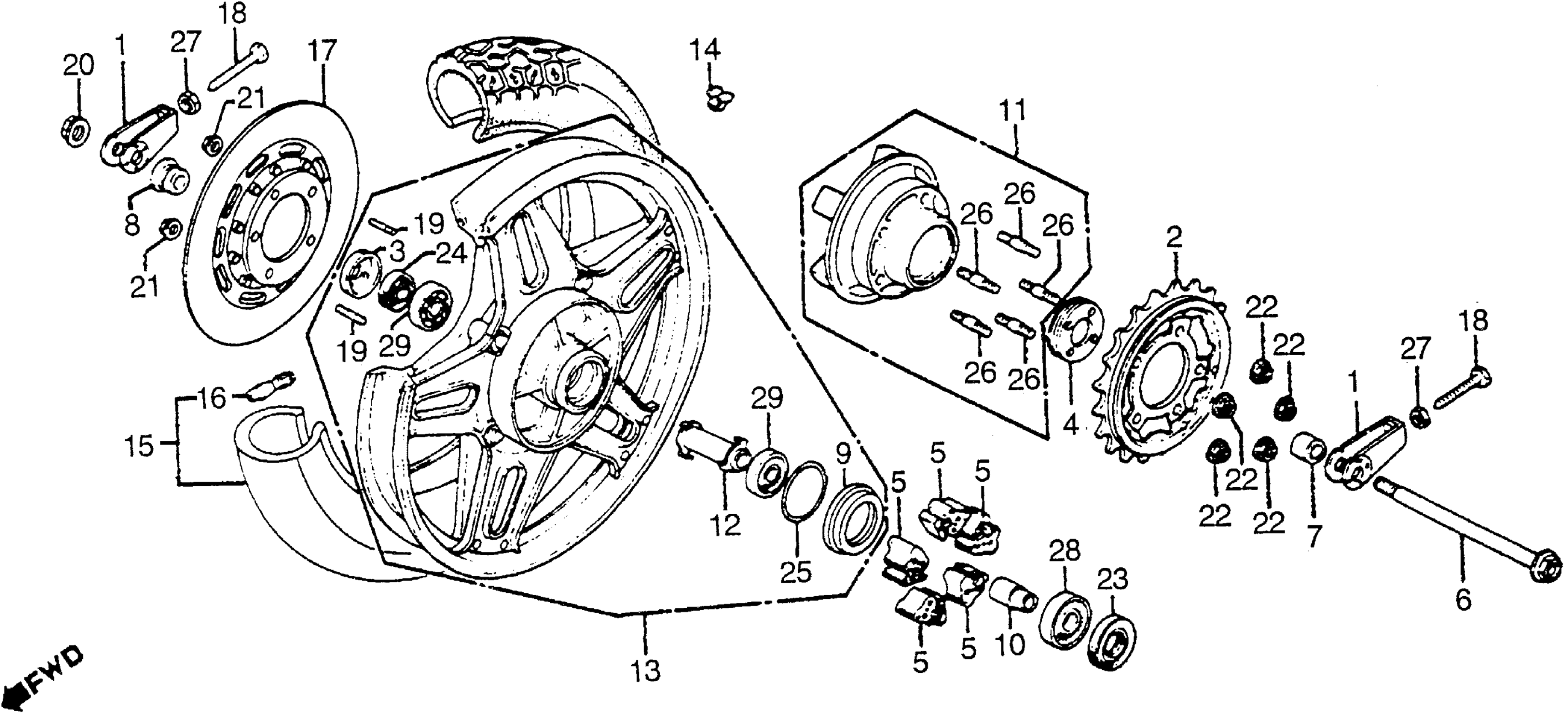

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, CHAIN (NOT AVAILABLE)

40543-MA2-000

Unavailable

2

SPROCKET, FINAL DRIVEN (42T) This part replaces 41200-MA2-000.

41200-MZ2-890

Unavailable

2

SPROCKET, FINAL DRIVEN (42T) This part replaces 41200-MG5-670.

41200-MZ2-890

Unavailable

2

SPROCKET, FINAL DRIVEN (42T)

41200-MZ2-890

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

4

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-422-000

Unavailable

5

DAMPER, RR. WHEEL

41241-422-000

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MA2-000

Unavailable

7

COLR, RR. WHEEL SIDE This part replaces 42311-422-000.

42311-425-700

Unavailable

8

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

9

SLEEVE, RR. WHEEL HUB

42604-438-710

Unavailable

10

SLEEVE, RR. AXLE

42605-393-000

Unavailable

11

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-438-710

Unavailable

12

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-422-010

Unavailable

13

WHEEL, RR. (NOT AVAILABLE)

42650-MA2-305

Unavailable

14

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

14

WEIGHT, BALANCE (30G) (NOT AVAILABLE)

42706-410-000

$11.69

15

TIRE ASSY., RR. (130/90V-18) (BS) (NOT AVAILABLE)

42710-MA3-003

Unavailable

15

TIRE ASSY., RR. (130/90V-18) (BS) (NOT AVAILABLE) This part replaces 42710-MA3-013.

42710-MA3-003

Unavailable

15

TIRE ASSY., RR. (130/90V-18) (DUNLOP) (NOT AVAILABLE)

42710-MA3-014

Unavailable

16

VALVE, RIM (BS)

42753-425-003

$11.00

16

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

17

DISK, RR. BRAKE This part replaces 43120-445-630.

43120-MB9-000

Unavailable

18

BOLT, CHAIN ADJUSTING (NOT AVAILABLE)

90119-438-000

Unavailable

19

BOLT, STUD (8X45) (NOT AVAILABLE)

90125-329-010

$3.26

20

NUT, FLANGE (18MM) This part replaces 90305-MA2-003.

90305-MB4-003

$12.52

20

NUT, U (18MM)

90305-MB4-003

$12.52

21

NUT, HEX. (8MM)

90309-357-000

$3.40

22

NUT, FLANGE (12MM)

90309-375-003

$8.61

23

OIL SEAL (34X55X9)

90753-283-000

$16.11

24

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

25

O-RING (66X3.6)

91258-438-711

Unavailable

26

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

27

NUT, HEX. (10MM)

94001-10000-0S

$1.49

28

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable

29

BEARING, RADIAL BALL (6304UU)

96150-63040-10

$18.04
