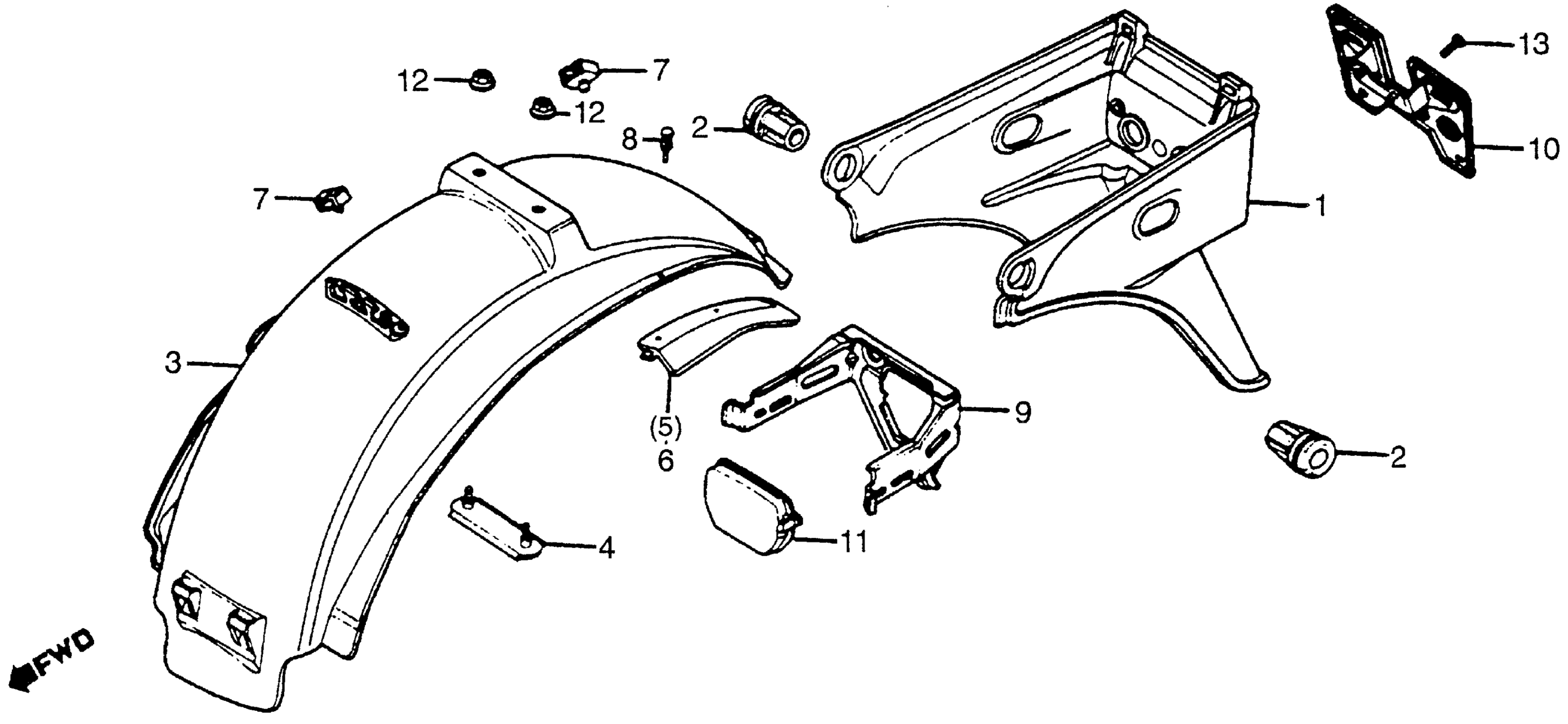

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 REAR FENDER Diagram

FENDER A, RR. *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

80100-MA2-000ZB

Unavailable

SPACER, RR. FENDER (NOT AVAILABLE)

80104-MA2-000

Unavailable

FENDER B, RR. (NOT AVAILABLE)

80105-MA2-000

Unavailable

PLATE, RR. FENDER SETTING (NOT AVAILABLE)

80107-MA2-000

Unavailable

SPLASH GUARD B, L. RR. FENDER (NOT AVAILABLE)

80108-MA2-300

Unavailable

SPLASH GUARD B, L. RR. FENDER (NOT AVAILABLE)

80109-MA2-300

Unavailable

CLAMP, CABLE

80110-147-000

$2.64

PLUG, SPLASH GUARD SETTING (NOT AVAILABLE)

80111-MA2-300

Unavailable

BRACKET, TAILLIGHT (NOT AVAILABLE)

84700-MA2-770

Unavailable

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-MA2-670

Unavailable

COVER, TAILLIGHT (NOT AVAILABLE)

84710-MA2-000

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.55

BOLT, FLANGE (6X16)

95701-06016-07

$1.55
