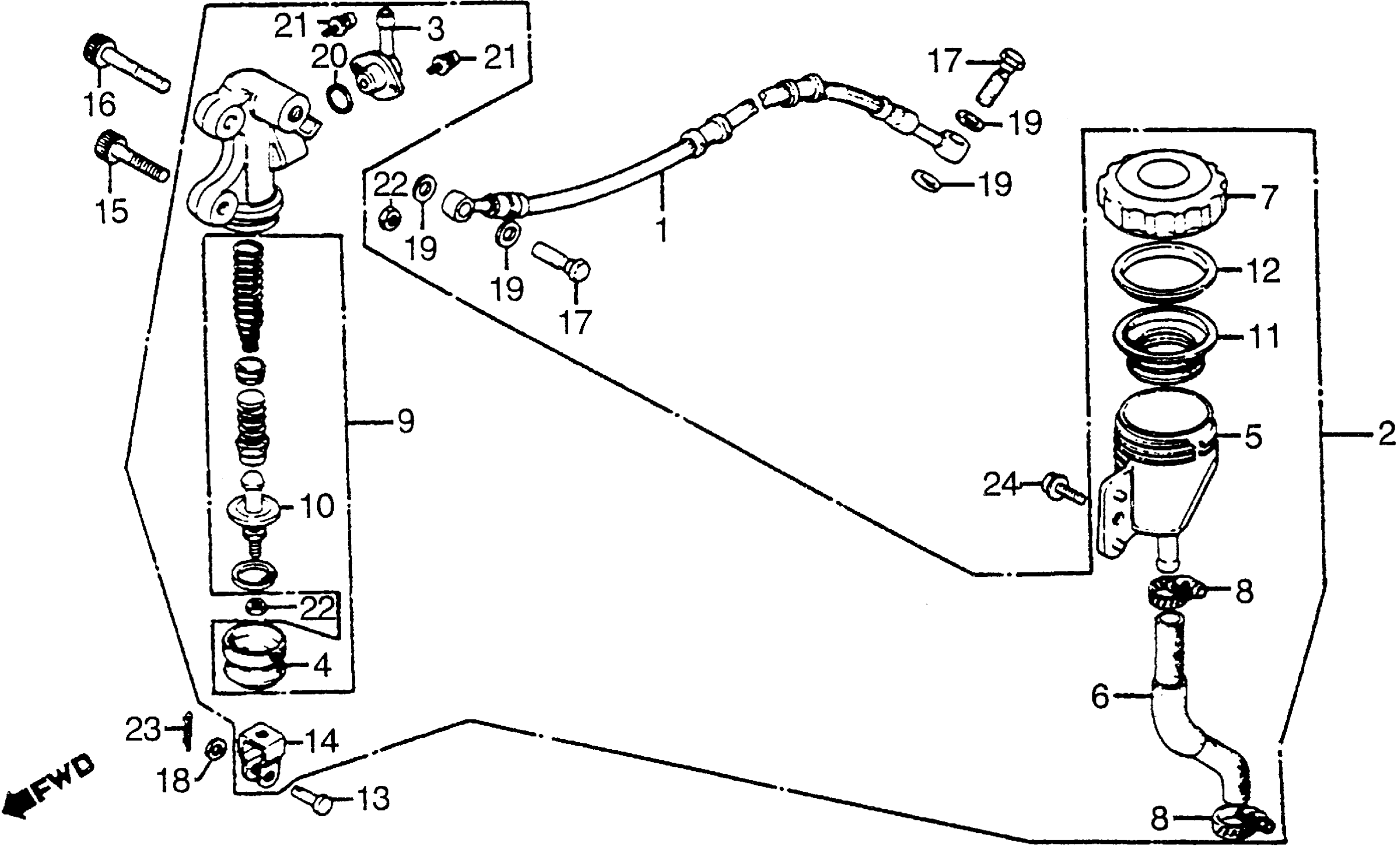

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MA2-671

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE (NOT AVAILABLE)

43500-MA2-672

Unavailable

3

CONNECTOR, MASTER CYLINDER

43503-422-006

Unavailable

4

BOOT, MASTER CYLINDER

43504-371-013

$8.57

5

CUP, MASTER CYLINDER OIL

43511-461-006

Unavailable

6

HOSE, MASTER CYLINDER OIL (NOT AVAILABLE)

43512-422-016

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

9

MASTER CYLINDER SET

43520-461-771

Unavailable

10

ROD, PUSH (NOT AVAILABLE)

43530-461-771

Unavailable

11

DIAPHRAGM

45520-300-000

$8.13

12

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

12

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$3.77

13

PIN, BRAKE ROD

46503-371-000

Unavailable

14

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-445-771

Unavailable

15

BOLT, SOCKET (8X28)

90105-MA6-750

$4.94

15

BOLT, SOCKET (8X28) This part replaces 90105-422-000.

90105-MA6-750

$4.94

16

BOLT, SPECIAL SOCKET (NOT AVAILABLE)

90106-422-000

Unavailable

17

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$8.32

17

BOLT, OIL

90145-300-010

$8.32

18

WASHER (7X12)

90501-310-000

$1.48

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

O-RING (14.8X2.4)

91212-422-006

Unavailable

21

SCREW-WASHER (4X12)

93893-04012-00

Unavailable

22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

23

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

23

PIN, COTTER (1.6X25)

94201-16250

$0.94

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.48

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
