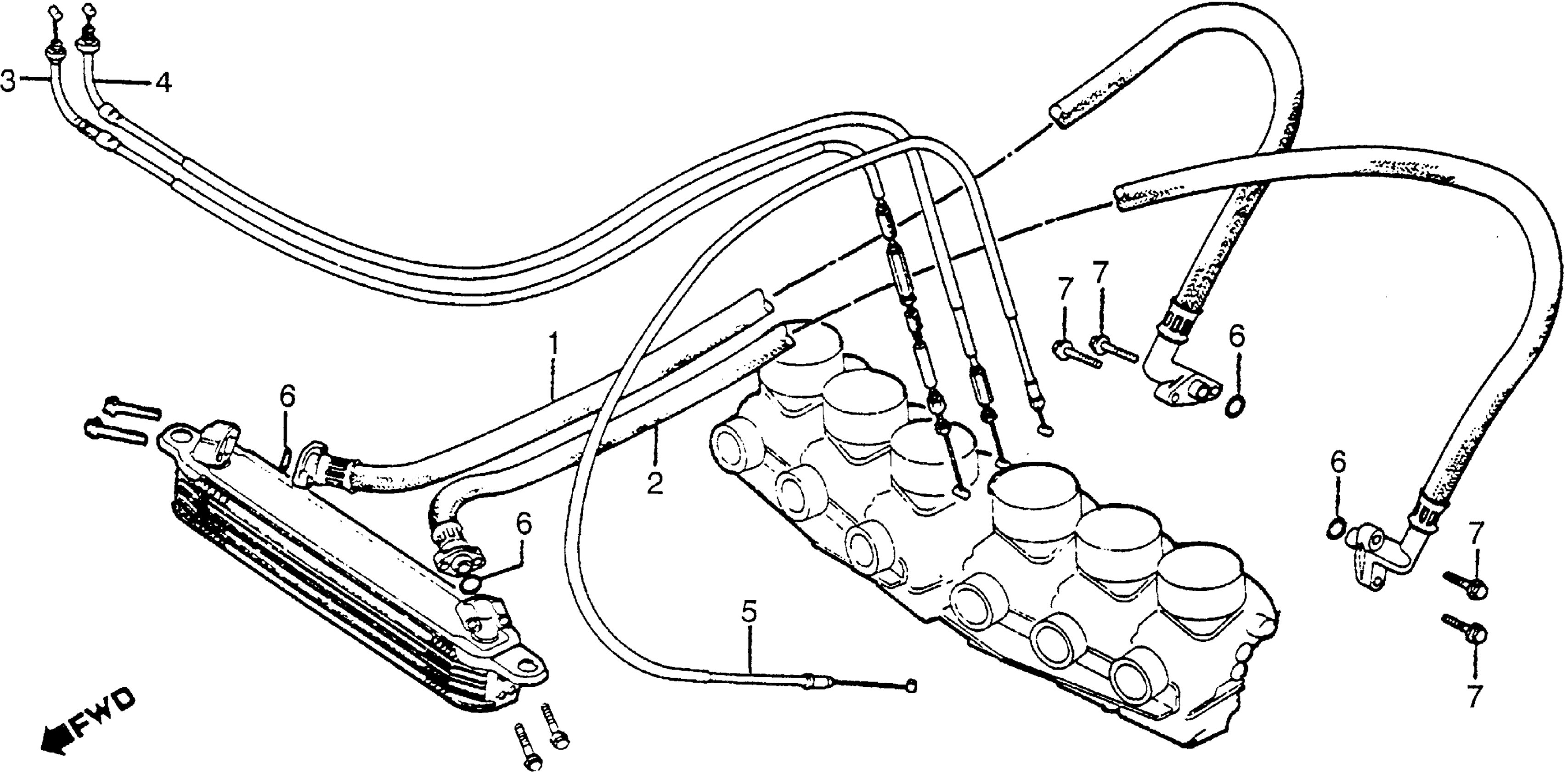

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 OIL HOSE + CABLE Diagram

#

Description

Price

1

HOSE, R. OIL (NOT AVAILABLE)

15510-422-000

Unavailable

2

HOSE, L. OIL (NOT AVAILABLE)

15516-422-000

Unavailable

3

CABLE A, THROTTLE (NOT AVAILABLE)

17910-MA2-670

Unavailable

4

CABLE B, THROTTLE (NOT AVAILABLE) This part replaces 17920-MA2-670.

17920-MG5-670

Unavailable

5

CABLE, CHOKE (NOT AVAILABLE)

17950-MA2-670

Unavailable

6

O-RING (15X2.5)

91301-MY9-003

$2.17

6

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.17

7

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

7

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
