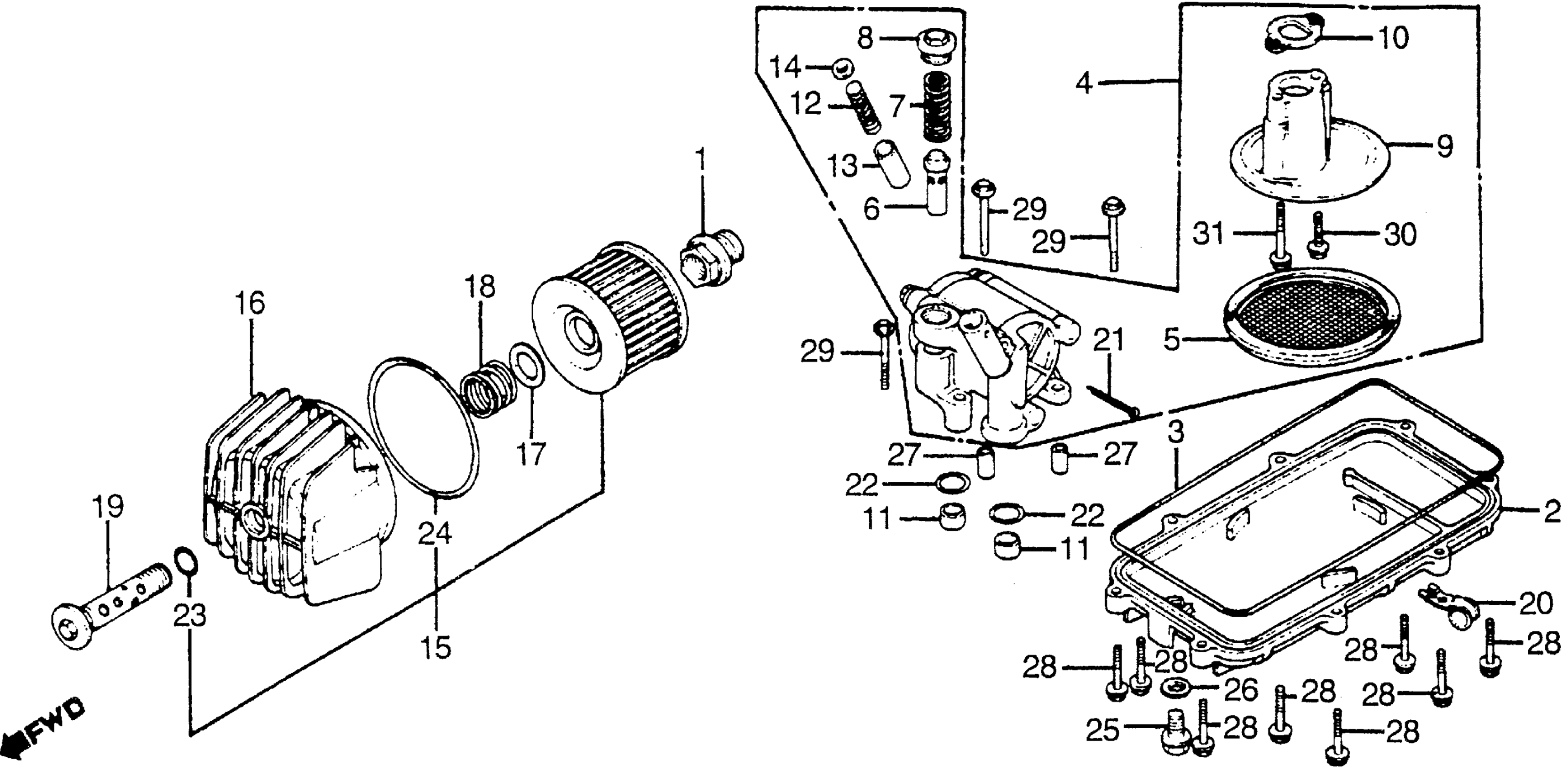

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 OIL FILTER + OIL PUMP Diagram

#

Description
Price

1

BOSS, OIL FILTER (NOT AVAILABLE)

11209-422-000

Unavailable

2

PAN, OIL (NOT AVAILABLE)

11210-MA2-000

Unavailable

3

GASKET, OIL PAN

11315-422-000

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE)

15100-422-000

Unavailable

5

SCREEN, OIL PUMP FILTER

15129-422-000

Unavailable

6

VALVE, RELIEF (NOT AVAILABLE)

15144-422-000

Unavailable

7

SPRING, RELIEF VALVE (NOT AVAILABLE)

15145-300-000

Unavailable

8

CAP, RELIEF VALVE SPRING (NOT AVAILABLE)

15147-300-000

Unavailable

9

CASE, OIL STRAINER (NOT AVAILABLE)

15151-422-000

Unavailable

10

GASKET, OIL STRAINER This part replaces 15153-422-000.

15153-422-306

Unavailable

11

COLLAR, O-RING

15155-300-000

$3.47

12

SPRING, RELIEF VALVE (NOT AVAILABLE)

15165-422-000

Unavailable

13

VALVE, RELIEF

15231-413-020

$21.33

14

SEAT, RELIEF VALVE

15233-413-000

Unavailable

15

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

15

ELEMENT, OIL FILTER

15410-426-010

$9.30

16

CASE, OIL FILTER (NOT AVAILABLE)

15411-MA2-000

Unavailable

17

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

18

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

19

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

20

CLAMP, TUBE (NOT AVAILABLE)

16236-469-000

Unavailable

21

PIN, SPLIT (3.0X25) (NOT AVAILABLE)

90701-422-003

Unavailable

22

O-RING (15X2.5)

91301-MY9-003

$2.28

22

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.28

23

O-RING (15X2.5)

91302-377-000

$5.31

24

O-RING (89X4.5) This part replaces 91316-300-003.

91316-425-003

$4.45

24

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

24

O-RING (89X4.5)

91316-425-003

$4.45

25

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

26

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

27

PIN, DOWEL (8X14)

94301-08140

$2.25

28

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

28

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

29

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

29

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

30

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

30

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

31

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

31

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
