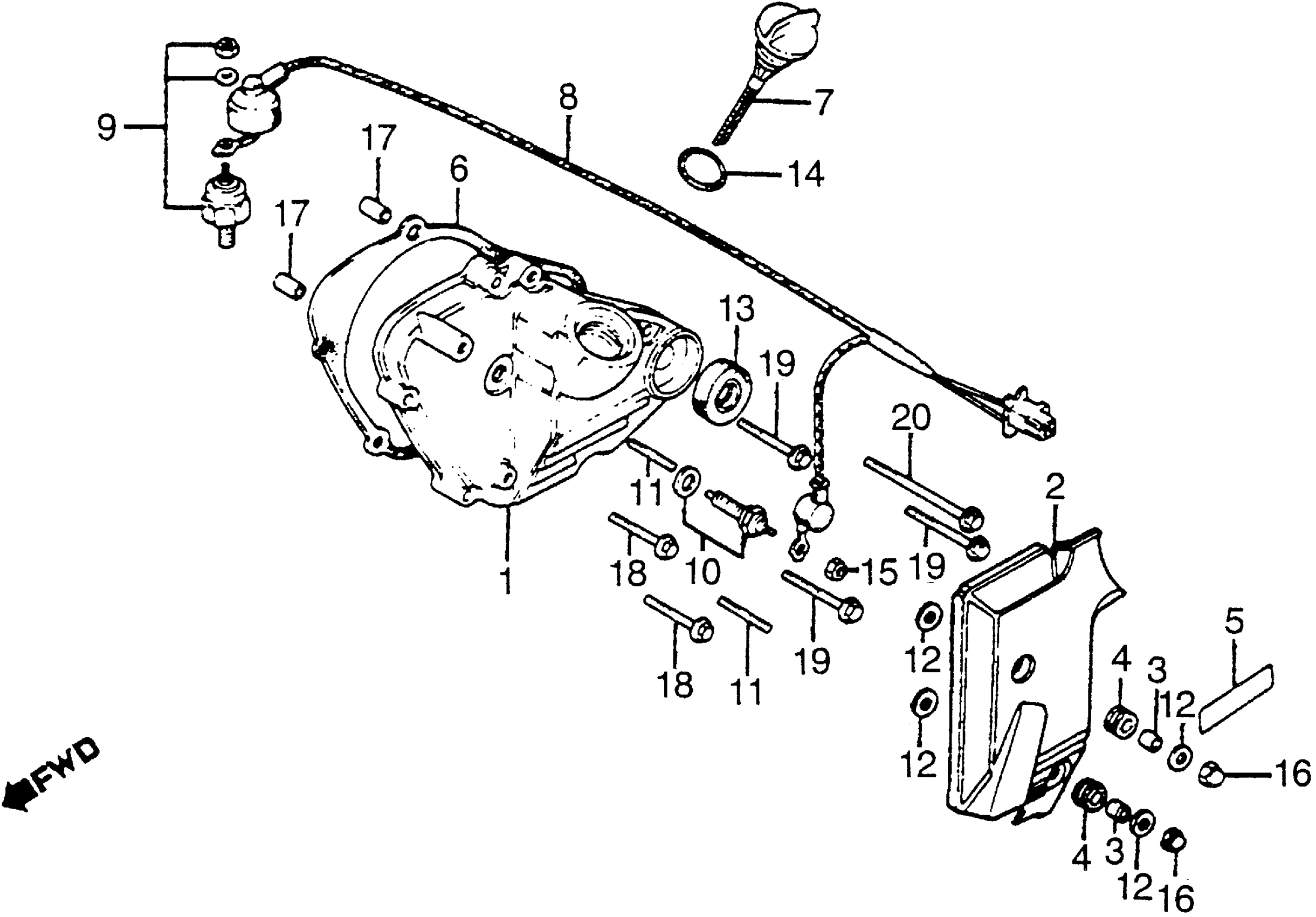

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 LEFT COVER Diagram

#

Description
Price

1

COVER, L. (NOT AVAILABLE)

11341-MA2-000

Unavailable

2

COVER, L. OIL HOSE (NOT AVAILABLE)

11346-MA2-000

Unavailable

3

COLLAR, ADJUSTING COVER

11346-371-300

$9.48

4

GROMMET, ADJUSTING COVER

11347-371-300

$1.87

5

LABEL, OIL LEVEL GAUGE CAUTION (NOT AVAILABLE)

11347-422-000

Unavailable

6

GASKET, L. CRANKCASE COVER This part replaces 11395-422-000.

11395-422-306

Unavailable

6

GASKET, L. CRANKCASE COVER

11395-422-306

Unavailable

7

DIPSTICK, OIL (NOT AVAILABLE)

15650-422-000

Unavailable

8

SUB-WIRE HARNESS D (NOT AVAILABLE)

32104-MA2-000

Unavailable

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$39.96

9

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$39.96

10

SWITCH ASSY., NEUTRAL (TEC)

35600-MM5-003

$16.98

10

SWITCH ASSY., NEUTRAL (TEC) This part replaces 35600-422-003.

35600-MM5-003

$16.98

10

SWITCH ASSY., NEUTRAL (TEC) This part replaces 35600-422-013.

35600-MM5-003

$16.98

10

SWITCH ASSY., NEUTRAL (TEC) This part replaces 35600-422-023.

35600-MM5-003

$16.98

11

BOLT, STUD (6X25) (NOT AVAILABLE)

90022-422-000

Unavailable

12

WASHER, HOSE COVER

90439-422-000

Unavailable

13

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$2.80

13

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-006.

91206-286-013

$2.80

13

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$2.80

14

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.55

14

O-RING (21.5X3.2)

91307-425-003

$2.55

15

NUT, HEX. (4MM)

94001-04000-0S

$0.94

16

NUT, CAP (6MM)

94021-06020

$1.65

17

PIN, DOWEL (8X14)

94301-08140

$2.04

18

BOLT, FLANGE (6X28) This part replaces 96000-06028-02.

96001-06028-02

$1.78

18

BOLT, FLANGE (6X28)

96001-06028-02

$1.78

19

BOLT, FLANGE (6X35) This part replaces 96000-06035-02.

96001-06035-02

$1.62

19

BOLT, FLANGE (6X35)

96001-06035-02

$1.62

20

BOLT, FLANGE (6X55) This part replaces 96000-06055-02.

96001-06055-02

$2.14
