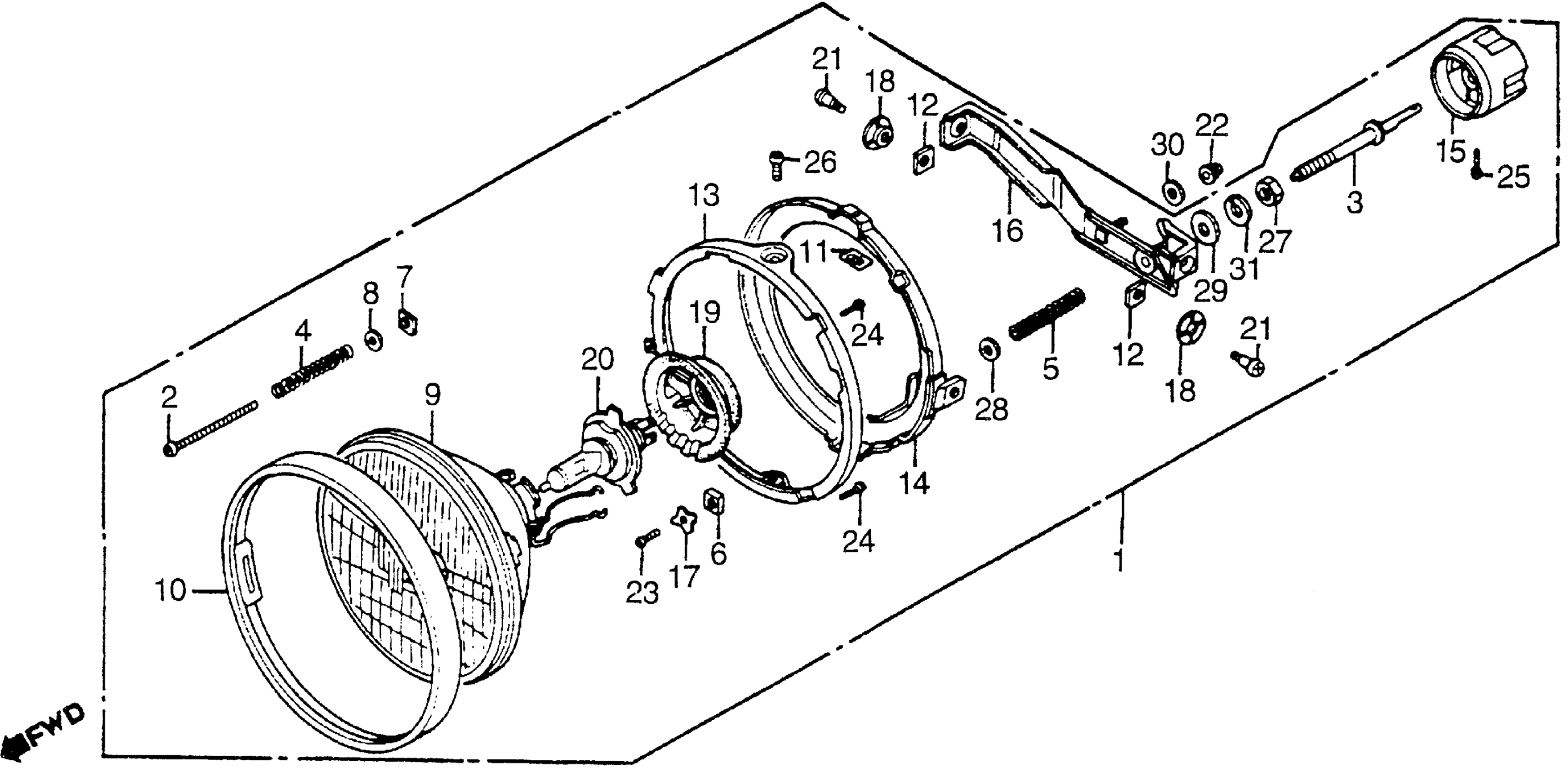

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 HEADLIGHT Diagram

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-MA2-671

Unavailable

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

SCREW, BEAM ADJUSTING (NOT AVAILABLE)

33103-438-841

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

SPRING, BEAM ADJUSTING (NOT AVAILABLE)

33107-463-771

$3.43

NUT, BEAM ADJUSTING (NOT AVAILABLE)

33117-438-841

Unavailable

NUT, BEAM ADJUSTING

33118-438-841

$2.23

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

HEADLIGHT UNIT

33120-431-671

Unavailable

RING, RETAINING (NOT AVAILABLE)

33121-463-771

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

NUT, UNIT HOLDER

33128-438-841

Unavailable

RING A, SETTING (NOT AVAILABLE)

33153-463-771

Unavailable

RING B, SETTING (NOT AVAILABLE)

33154-438-841

Unavailable

KNOB, BEAM ADJUSTING (NOT AVAILABLE)

33155-463-771

Unavailable

BRACKET, HEADLIGHT

33156-438-841

Unavailable

WASHER, SPRING

33157-463-771

Unavailable

WASHER, HEADLIGHT (NOT AVAILABLE)

33165-463-771

Unavailable

COVER, RUBBER

33180-422-003

Unavailable

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-371-601.

34901-MC7-602

$37.18

SCREW, PAN (5X10) (NOT AVAILABLE)

90150-463-771

Unavailable

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

NUT, FLANGE (6MM)

94050-06000

$1.49

SCREW, PAN (3X8)

93500-03008-0H

$1.49

SCREW, PAN (3X12)

93500-03012-0A

$1.49

SCREW, PAN (3X14)

93500-03014-0G

Unavailable

SCREW, PAN (5X8)

93500-05008-0H

$1.49

NUT, HEX. (12MM)

94002-12080-0S

$1.66

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (12MM)

94101-12800

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

WASHER, SPRING (12MM)

94111-12800

$1.49
