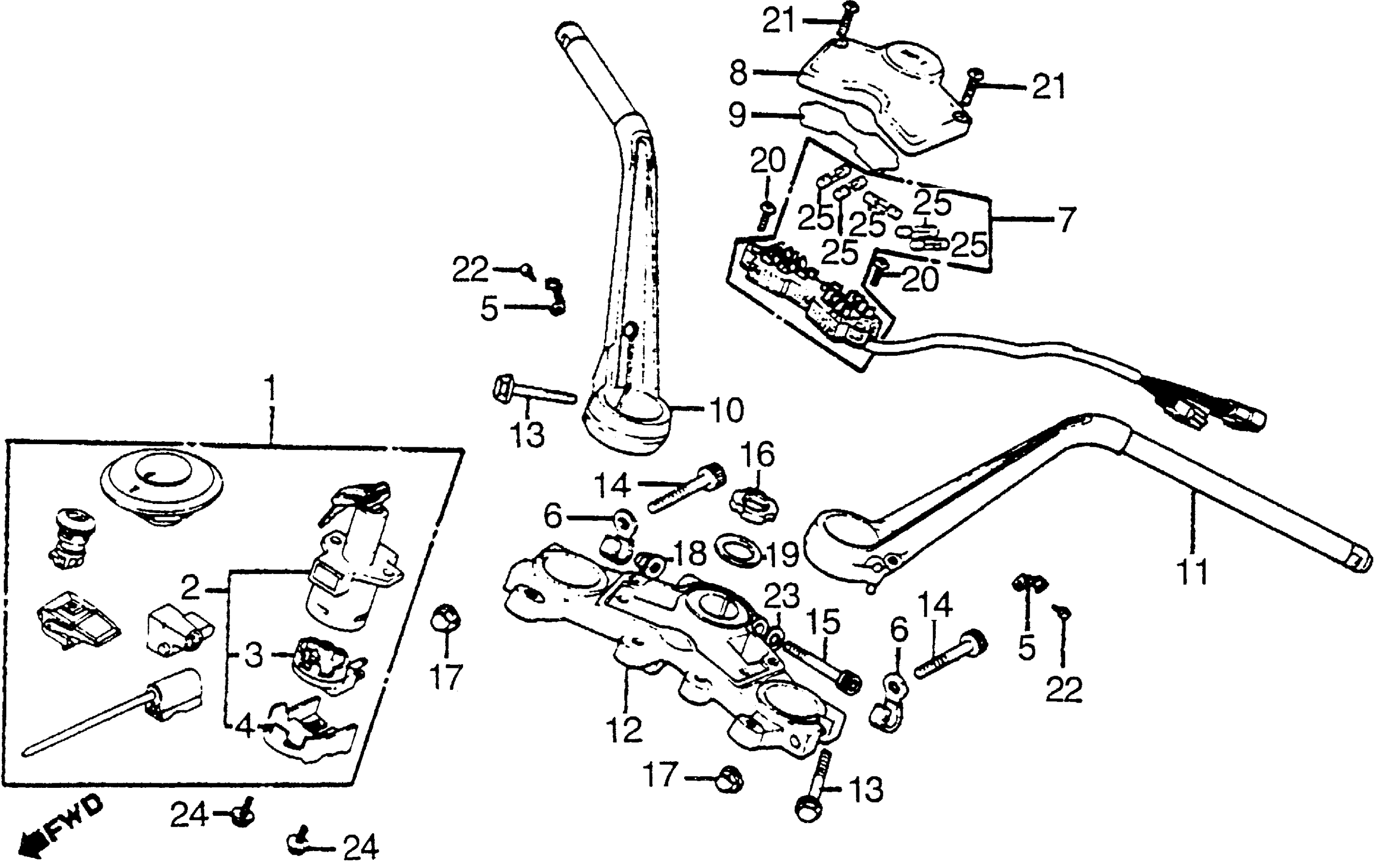

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-MA2-671.

35010-MA2-672

Unavailable

1

LOCK SET (NOT AVAILABLE)

35010-MA2-672

Unavailable

2

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-431-047

Unavailable

3

BASE, CONTACT (NOT AVAILABLE)

35101-431-037

Unavailable

4

COVER, SWITCH

35102-431-007

Unavailable

5

CLIP, WIRE (NOT AVAILABLE)

35205-422-000

Unavailable

6

CLAMP, SWITCH WIRE (NOT AVAILABLE)

35210-422-000

Unavailable

7

PLATE ASSY., FUSE (NOT AVAILABLE)

38200-MA2-000

Unavailable

8

COVER, FUSE PLATE (NOT AVAILABLE)

38210-422-000

Unavailable

9

LABEL, FUSE (NOT AVAILABLE)

38215-MA2-300

Unavailable

10

HANDLEBAR ASSY., R. (NOT AVAILABLE)

53120-MA2-670

Unavailable

11

HANDLEBAR ASSY., L. (NOT AVAILABLE)

53160-MA2-670

Unavailable

12

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MA2-000

Unavailable

13

BOLT, FLANGE (8X40)

90118-VM6-000

$4.85

13

BOLT, FLANGE (8X40) This part replaces 90118-965-000.

90118-VM6-000

$4.85

13

BOLT, FLANGE (8X40) This part replaces 90157-422-000.

90118-VM6-000

$4.85

14

BOLT, SOCKET (7X55)

90167-422-000

Unavailable

15

BOLT, SOCKET (8X75) (NOT AVAILABLE)

90168-422-000

Unavailable

16

NUT, STEERING STEM (NOT AVAILABLE)

90304-371-000

Unavailable

17

NUT, CAP. (7MM) This part replaces 90360-422-000.

90360-428-900

Unavailable

18

NUT, CAP (8MM)

90443-KF9-900

$4.27

18

NUT, CAP (8MM) This part replaces 90443-379-690.

90443-KF9-900

$4.27

19

WASHER, STEERING STEM

90503-283-000

$4.37

20

SCREW, PAN (5X16)

93500-05016-0A

$1.49

21

SCREW, PAN (5X20)

93500-05020-0G

$1.49

22

SCREW, TAPPING (4X6) (NOT AVAILABLE)

93901-34080

Unavailable

23

WASHER, PLAIN (8MM)

94102-08700

$1.49

24

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

24

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

25

FUSE B (15A)

98200-21500

$1.49
