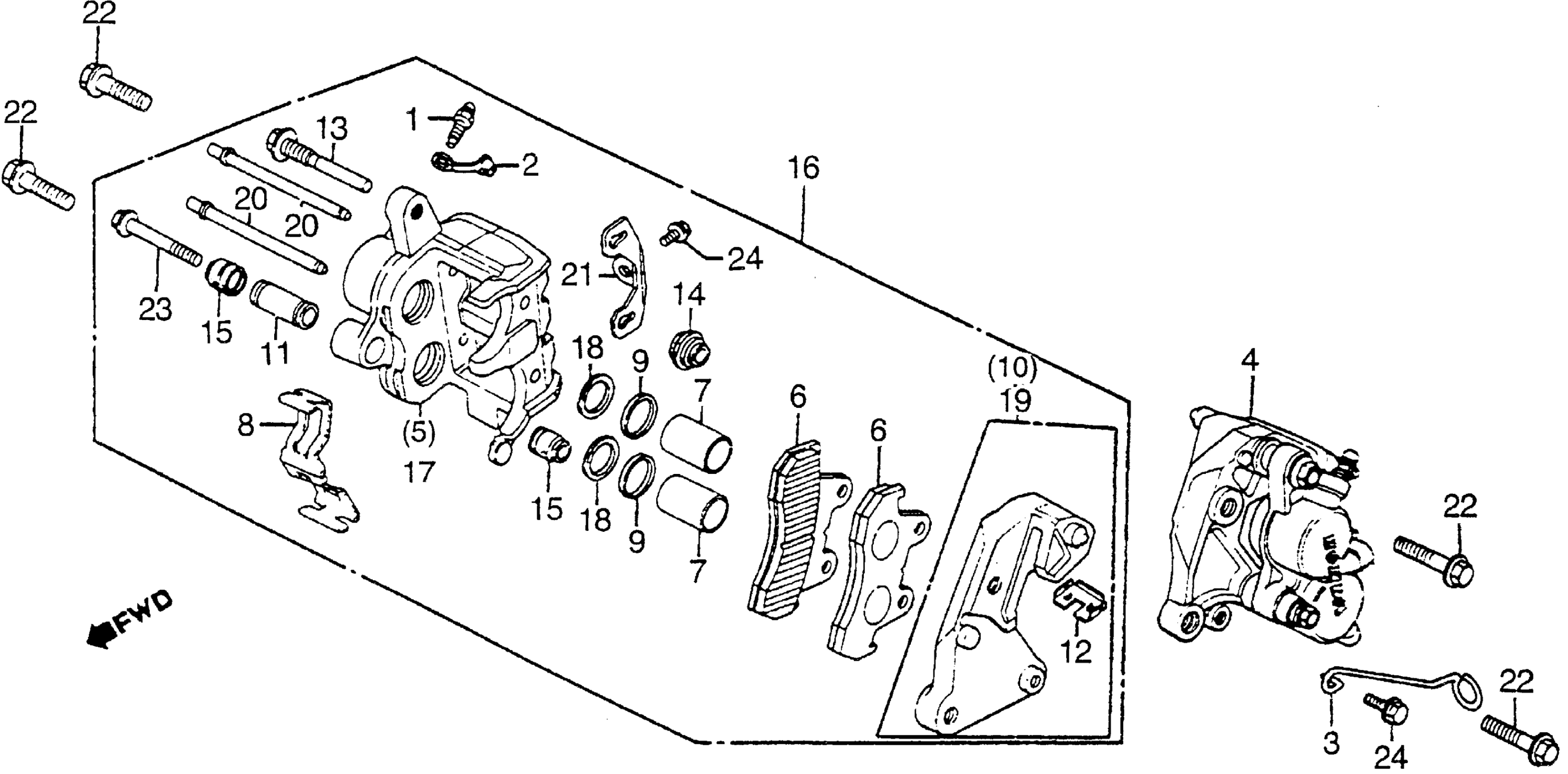

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 FRONT BRAKE CALIPER Diagram

PAD SET This part replaces 06455-KN8-405.

06455-MM9-405

$36.44

PAD SET This part replaces 451A0-443-670.

06455-MM9-405

$36.44

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA3-000

Unavailable

CALIPER ASSY., L. FR. This part replaces 45100-MA2-006.

45100-MA2-007

Unavailable

CALIPER ASSY., L. FR.

45100-MA2-007

Unavailable

CALIPER, L. FR. (NOT AVAILABLE)

45101-MA2-006

Unavailable

PAD, FR. This part replaces 45105-KN8-026.

45105-MM9-782

$24.40

PAD, FR. This part replaces 45105-443-761.

45105-MM9-782

$24.40

PAD, FR. This part replaces 45105-443-762.

45105-MM9-782

$24.40

PISTON

45107-MA3-006

$50.26

SPRING, PAD

45108-MA2-006

Unavailable

DUST SEAL

45109-166-006

$6.41

BRACKET, L. FR. (NOT AVAILABLE)

45110-MA2-006

Unavailable

SLEEVE

45111-MA3-006

$13.38

RETAINER, BRACKET (14T) (NOT AVAILABLE)

45112-MA2-006

Unavailable

BOLT, PIN

45131-MA3-006

$17.59

BOOT B

45133-MA3-006

$5.46

BOOT, PIN

45133-166-016

$3.85

CALIPER ASSY., R. FR. (NOT AVAILABLE) This part replaces 45200-MA2-006.

45200-MA2-007

Unavailable

CALIPER ASSY., R. FR. (NOT AVAILABLE)

45200-MA2-007

Unavailable

CALIPER, R. FR. (NOT AVAILABLE)

45201-MA2-006

Unavailable

SEAL, PISTON

45209-166-006

$8.64

BRACKET, R. FR. (NOT AVAILABLE)

45210-MA2-006

Unavailable

PIN, HANGER

45215-MA2-006

Unavailable

PLATE

45217-MA3-006

$4.45

BOLT, FLANGE (10X37) (NOT AVAILABLE)

90003-MA2-000

Unavailable

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
