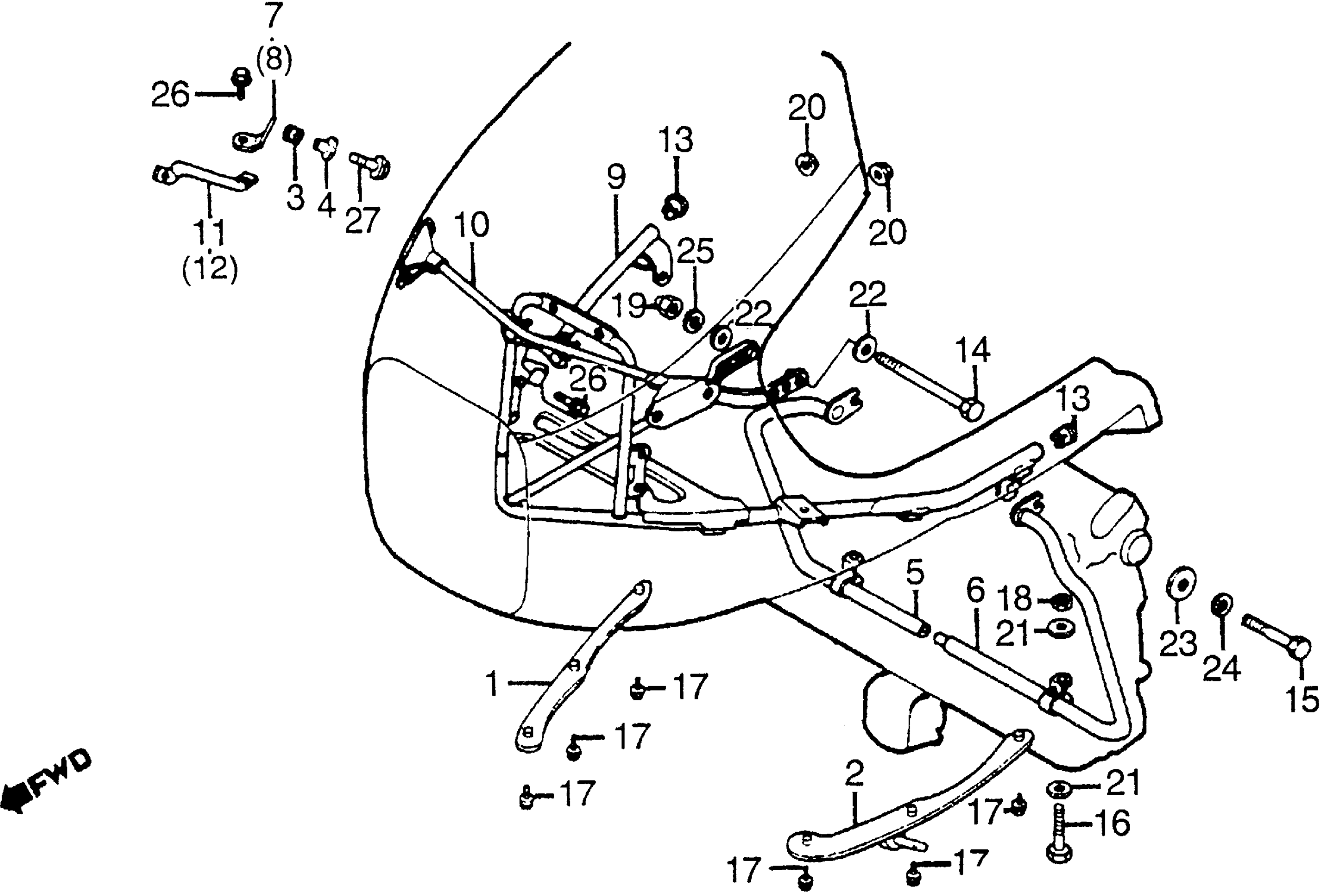

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 FAIRING STAY Diagram

#

Description
Price

1

STAY, R. FR. TURN SIGNAL (NOT AVAILABLE)

33471-MA2-000

Unavailable

2

STAY, L. FR. TURN SIGNAL (NOT AVAILABLE)

33472-MA2-000

Unavailable

3

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

4

COLLAR, SETTING

61104-422-000

$6.91

5

GUARD, R. ENGINE (NOT AVAILABLE)

62501-MA2-000

Unavailable

6

GUARD, L. ENGINE (NOT AVAILABLE)

62601-MA2-000

Unavailable

7

STAY, R. SIDE PANEL (NOT AVAILABLE)

64281-MA2-000

Unavailable

8

STAY, L. SIDE PANEL (NOT AVAILABLE)

64291-MA2-000

Unavailable

9

STAY, FAIRING (NOT AVAILABLE)

64510-MA2-000

Unavailable

10

STAY, FAIRING (UPPER) (NOT AVAILABLE)

64511-MA2-000

Unavailable

11

PIPE, R. STIFFENER (NOT AVAILABLE)

64515-MA2-000

Unavailable

12

PIPE, L. STIFFENER (NOT AVAILABLE)

64516-MA2-000

Unavailable

13

CAP, FAIRING STAY END (NOT AVAILABLE)

84102-MA2-000

Unavailable

14

BOLT, FLANGE (8X104) (NOT AVAILABLE)

90104-MA2-000

Unavailable

15

BOLT, HEX. (8X25) This part replaces 92000-08025-0B.

92101-08025-0B

$1.79

15

BOLT, HEX. (8X25)

92101-08025-0B

$1.79

16

BOLT, HEX. (8X40) This part replaces 92000-08040-0B.

92101-08040-0B

Unavailable

16

BOLT, HEX. (8X40)

92101-08040-0B

Unavailable

17

BOLT-WASHER (6X20)

93403-06020-07

$1.87

17

BOLT-WASHER (6X20) This part replaces 93493-06020-07.

93403-06020-07

$1.87

18

NUT, HEX. (8MM)

94001-08020-0S

$1.49

19

NUT, CAP (8MM)

94021-08070-0S

$1.55

19

NUT, CAP (8MM) This part replaces 94021-08270-0S.

94021-08070-0S

$1.55

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

WASHER, PLAIN (8MM)

94101-08200

$1.49

22

WASHER, PLAIN (8MM)

94101-08700

$1.49

23

WASHER, PLAIN (8MM)

94103-08200

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

25

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08700

Unavailable

26

BOLT, FLANGE (6X14) This part replaces 95700-06014-07.

95701-06014-07

$1.49

26

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

27

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

27

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
