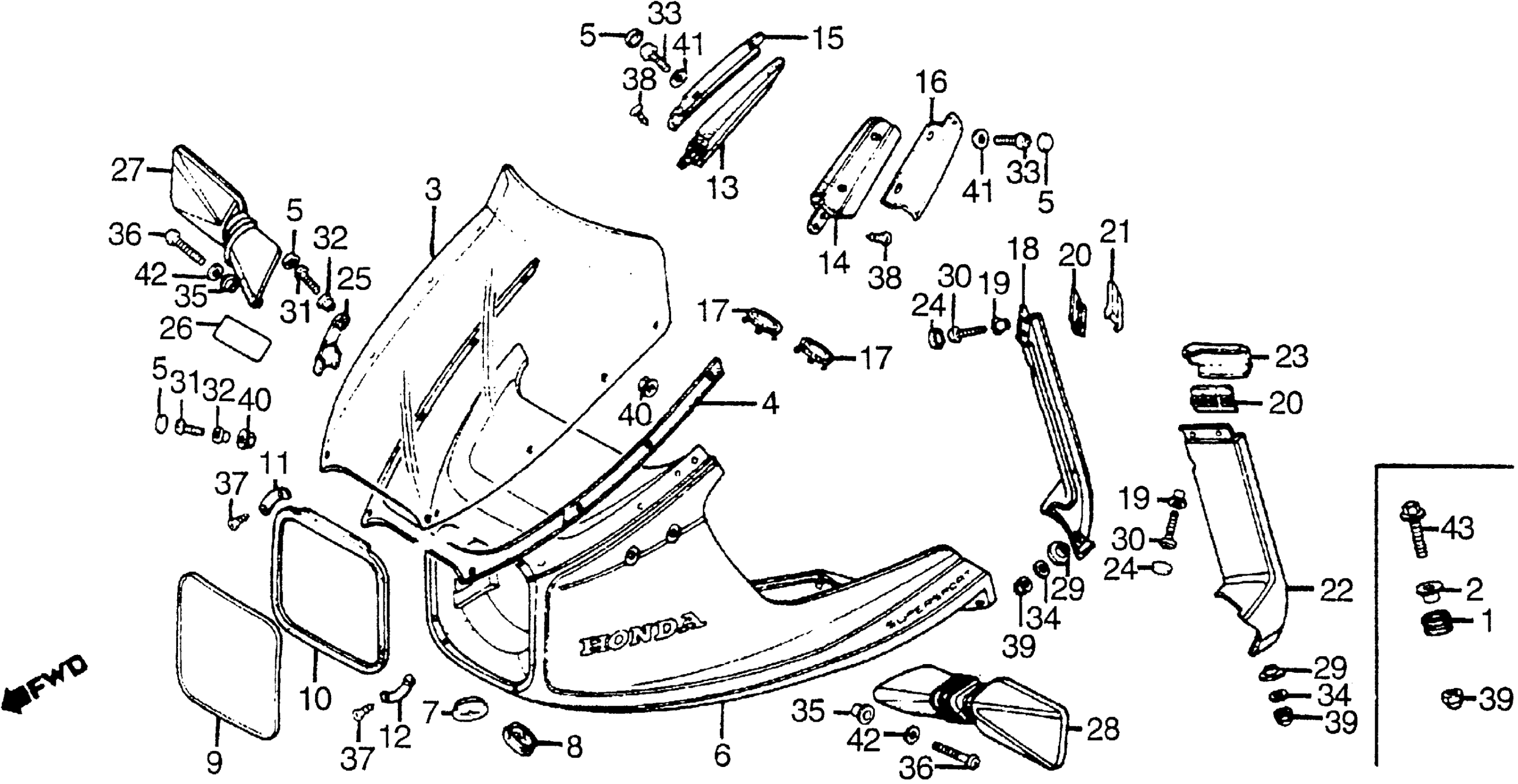

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 FAIRING Diagram

#

Description
Price

1

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

2

COLLAR, SETTING

61104-422-000

$6.91

3

WINDSHIELD (NOT AVAILABLE)

64100-MA2-000

Unavailable

4

RUBBER, SCREEN BASE (NOT AVAILABLE)

64101-MA2-000

Unavailable

5

CAP, SCREEN SCREW

64109-MA2-000

$3.83

6

FAIRING SUB-ASSY. *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

64205-MA2-610ZA

Unavailable

7

GROMMET, HEADLIGHT CORD (NOT AVAILABLE)

64218-MA2-000

Unavailable

8

PLUG, HEADLIGHT CASE (NOT AVAILABLE)

64219-MA2-000

Unavailable

9

SHIELD, HEADLIGHT (NOT AVAILABLE)

64220-MA2-000

Unavailable

10

RUBBER, HEADLIGHT SHIELD (NOT AVAILABLE)

64221-MA2-000

Unavailable

11

PLATE, HEADLIGHT RUBBER (UPPER) (NOT AVAILABLE)

64222-MA2-000

Unavailable

12

PLATE, HEADLIGHT RUBBER (LOWER) (NOT AVAILABLE)

64223-MA2-000

Unavailable

13

PAD, R. PILLAR This part replaces 64234-MA2-300.

64234-MA2-305

Unavailable

14

PAD, L. PILLAR This part replaces 64235-MA2-300.

64235-MA2-305

Unavailable

15

PILLAR, R. *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

64236-MA2-610ZA

Unavailable

16

PILLAR, L. *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

64237-MA2-610ZA

Unavailable

17

CAP, SUB-METER

64254-MA2-000

Unavailable

18

SHIELD, R. LEG *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

64260-MA2-000ZB

Unavailable

19

COLLAR, LEG SHIELD SETTING (NOT AVAILABLE)

64263-MA2-000

Unavailable

20

PLATE, LEG SHIELD SETTING (NOT AVAILABLE)

64264-MA2-000

Unavailable

21

COVER, R. LEG SHIELD BOLT (NOT AVAILABLE)

64265-MA2-000

Unavailable

22

SHIELD, L. LEG *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

64270-MA2-000ZB

Unavailable

23

COVER, L. LEG SHIELD BOLT (NOT AVAILABLE)

64275-MA2-000

Unavailable

24

CAP, LEG SHIELD SCREW (NOT AVAILABLE)

64279-MA2-000

Unavailable

25

PLATE, WINDSHIELD (NOT AVAILABLE)

64513-MA2-000

Unavailable

26

LABEL, WINDSCREEN CAUTION (NOT AVAILABLE)

87522-463-770

Unavailable

27

MIRROR, R. (NOT AVAILABLE) This part replaces 88110-MA2-620.

88110-MA3-720

Unavailable

27

MIRROR, R. (NOT AVAILABLE)

88110-MA3-720

Unavailable

28

MIRROR, L. (NOT AVAILABLE) This part replaces 88120-MA2-620.

88120-MA3-720

Unavailable

28

MIRROR, L. (NOT AVAILABLE)

88120-MA3-720

Unavailable

30

SCREW, LEG SHIELD SETTING (NOT AVAILABLE)

90005-MA2-000

Unavailable

31

SCREW, SCREEN SETTING (NOT AVAILABLE)

90006-MA2-000

Unavailable

32

COLLAR, SCREEN SETTING

90007-MA2-000

Unavailable

33

SCREW B

90009-MA2-000

Unavailable

35

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

36

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

36

SCREW, PAN (6X28)

93500-06028-0A

$1.49

37

SCREW, TAPPING (3X10) (SOURCE: VINTAGE PARTS INC.)

93901-32280

Unavailable

38

SCREW, TAPPING (4X12)

93903-14310

Unavailable

39

NUT, CAP (6MM)

94021-06020

$1.73

39

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

39

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

40

NUT, FLANGE (4MM)

94050-04000

$1.49

41

WASHER, PLAIN (4MM)

94101-04700

$1.49

42

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

42

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

42

WASHER, PLAIN (6MM)

94101-06800

$1.49

43

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

43

BOLT, FLANGE (6X22)

95701-06022-07

$1.49
