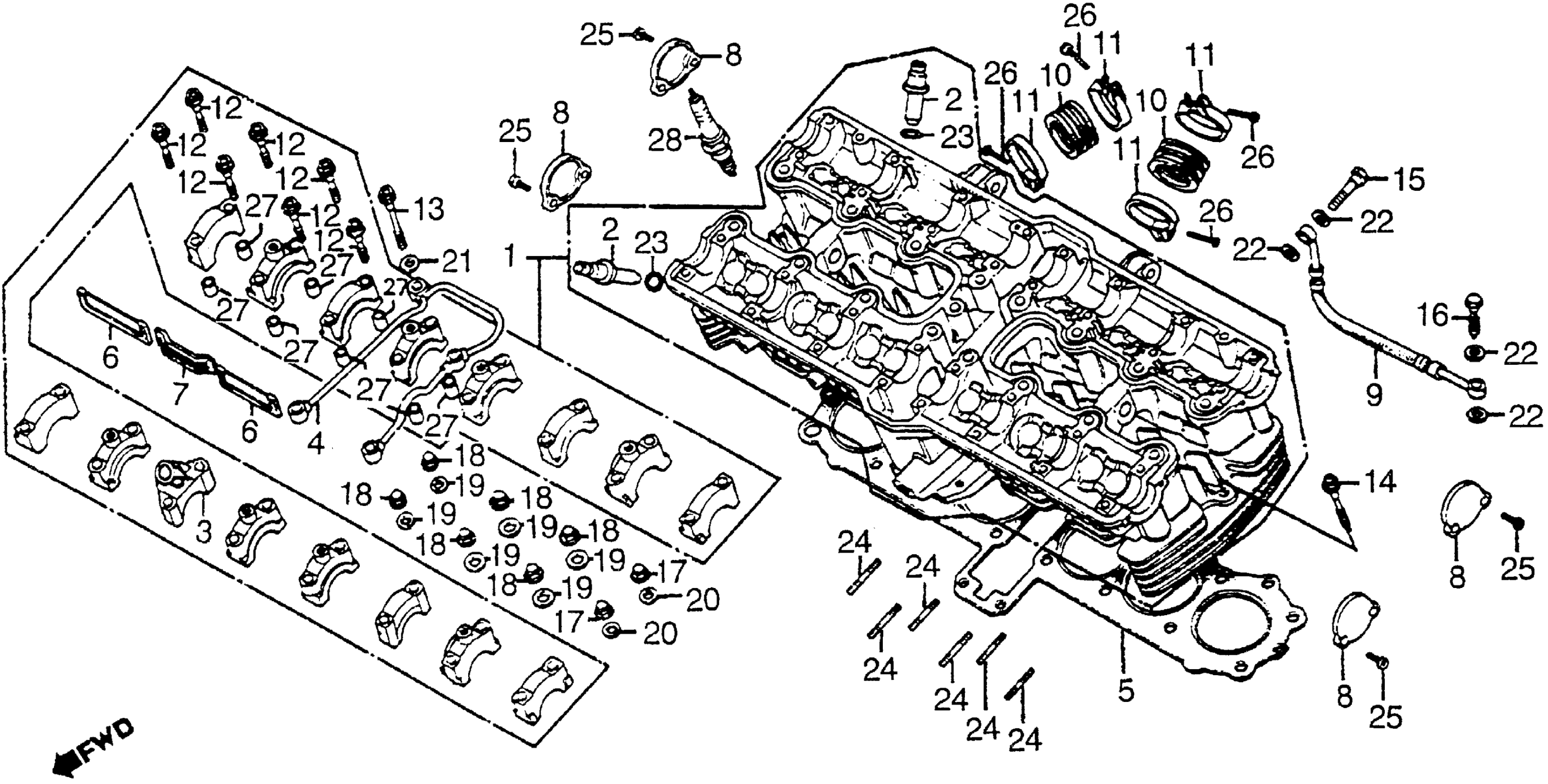

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12010-MA2-770

Unavailable

2

GUIDE, VALVE This part replaces 12204-422-305.

12204-461-405

Unavailable

2

GUIDE, VALVE

12204-461-405

Unavailable

3

HOLDER F, CAMSHAFT (NOT AVAILABLE)

12216-422-305

Unavailable

4

PIPE, OIL PASSAGE (NOT AVAILABLE)

12230-422-000

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-422-010.

12251-422-306

Unavailable

5

GASKET, CYLINDER HEAD

12251-422-306

Unavailable

6

PLATE A, OIL POOL (NOT AVAILABLE)

12261-422-000

Unavailable

7

PLATE B, OIL POOL (NOT AVAILABLE)

12262-422-000

Unavailable

8

CAP, HEAD COVER

12315-422-010

Unavailable

9

PIPE, OIL (NOT AVAILABLE)

15520-422-003

Unavailable

10

INSULATOR, CARBURETOR

16211-MA2-000

Unavailable

11

BAND, INSULATOR

16219-422-000

$12.72

12

BOLT, FLANGE (6X48)

90001-422-000

Unavailable

13

BOLT, FLANGE (6X62) (NOT AVAILABLE)

90002-422-000

Unavailable

14

BOLT, UBS (8X50) (NOT AVAILABLE)

90012-422-000

Unavailable

15

BOLT, OIL (NOT AVAILABLE)

90025-422-000

Unavailable

16

BOLT, OIL CONTROL (NOT AVAILABLE)

90045-422-000

Unavailable

17

NUT, FLANGE CAP (8MM) (NOT AVAILABLE)

90203-422-000

Unavailable

18

NUT, FLANGE CAP (10MM) (NOT AVAILABLE)

90204-422-000

Unavailable

19

WASHER, SEALING (10MM)

90403-438-003

$8.16

20

WASHER, SEALING (8MM)

90441-469-000

$5.28

21

WASHER, SEALING (6MM)

90442-035-000

$2.21

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

O-RING (10X1.6)

91301-200-000

$3.01

24

BOLT, STUD (6X55) (NOT AVAILABLE)

92700-06055-0E

Unavailable

25

SCREW, PAN (5X12)

93500-05012-0B

$1.49

26

SCREW, PAN (5X20)

93500-05020-0G

$1.49

27

PIN, DOWEL (8X14)

94301-08140

$2.25

28

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

28

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

28

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

28

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.44

28

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.44

28

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.44

28

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.50

28

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.50

28

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.54
