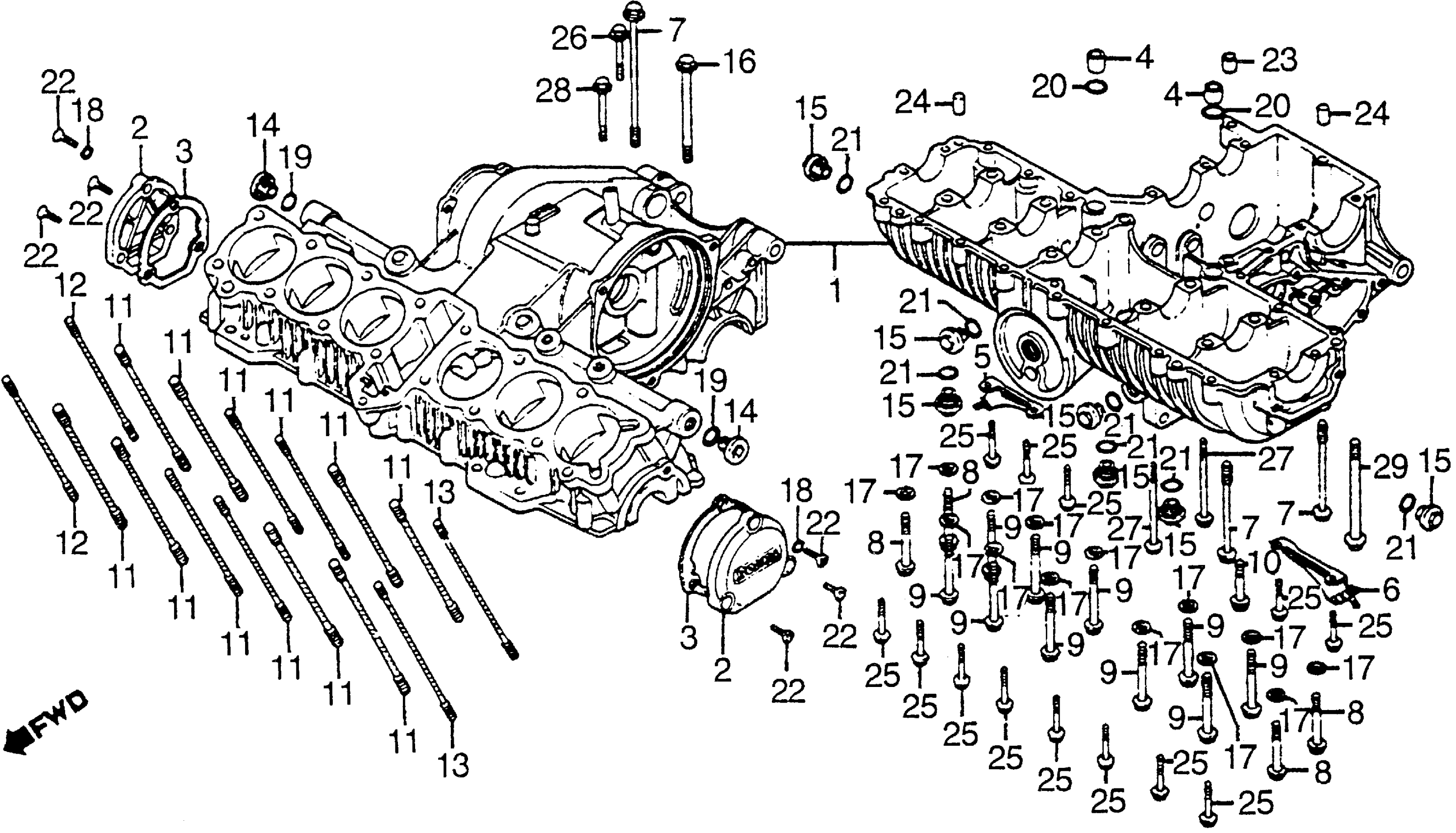

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-MA2-000

Unavailable

2

CAP, CRANKSHAFT

11631-422-000

Unavailable

3

GASKET, CRANK CAP This part replaces 11636-422-003.

11636-422-306

$6.36

3

GASKET, CRANK CAP

11636-422-306

$6.36

4

COLLAR, OIL PASSAGE (18MM)

15326-300-000

Unavailable

5

STAY, R. LEG SHIELD (NOT AVAILABLE)

64262-MA2-000

Unavailable

6

STAY, L. LEG SHIELD (NOT AVAILABLE)

64272-MA2-000

Unavailable

7

BOLT, HEX. (8X135) (NOT AVAILABLE)

90003-302-000

Unavailable

8

BOLT, UBS (8X70) (NOT AVAILABLE)

90003-422-000

Unavailable

9

BOLT, UBS (8X100) (NOT AVAILABLE) This part replaces 90004-422-000.

90004-HC4-000

Unavailable

10

BOLT, FLANGE (8X60) (NOT AVAILABLE)

90017-333-000

Unavailable

11

BOLT A, STUD (10X220) (NOT AVAILABLE)

90031-422-003

Unavailable

12

BOLT A, STUD (8X217) (NOT AVAILABLE)

90034-422-003

Unavailable

13

BOLT C, STUD (8X222) (NOT AVAILABLE)

90039-422-003

Unavailable

14

CAP, OIL PASSAGE (NOT AVAILABLE)

90040-MA2-000

Unavailable

15

CAP, SEALING (18MM) (NOT AVAILABLE)

90043-422-000

Unavailable

16

BOLT, FLANGE (8X105) (NOT AVAILABLE)

90052-422-000

Unavailable

17

WASHER (8.5MM)

90457-422-000

$2.51

18

O-RING (5.5X1.5)

91301-216-000

$2.38

19

O-RING (19.8X2.4) This part replaces 91302-704-000.

91310-PH7-000

$3.11

19

O-RING (19.8X2.4)

91310-PH7-000

$3.11

20

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

20

O-RING (18X3)

91307-035-000

$2.92

20

O-RING (18X3) This part replaces 91311-044-000.

91307-035-000

$2.92

21

O-RING (18X2.4)

91310-PH3-003

$2.44

21

O-RING (18X2.4) This part replaces 91333-422-003.

91310-PH3-003

$2.44

22

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

22

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

23

PIN, DOWEL (10X16)

94301-10160

$2.28

24

PIN, DOWEL (10X16)

94303-10160

$2.34

25

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

26

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

26

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

27

BOLT, FLANGE (6X125) This part replaces 95700-06125-00.

95701-06125-00

Unavailable

27

BOLT, FLANGE (6X125)

95701-06125-00

Unavailable

28

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

28

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

29

BOLT, FLANGE (10X140) (SOURCE: VINTAGE PARTS INC.) This part replaces 95700-10140-00.

95701-10140-00

Unavailable

29

BOLT, FLANGE (10X140) (SOURCE: VINTAGE PARTS INC.)

95701-10140-00

Unavailable
