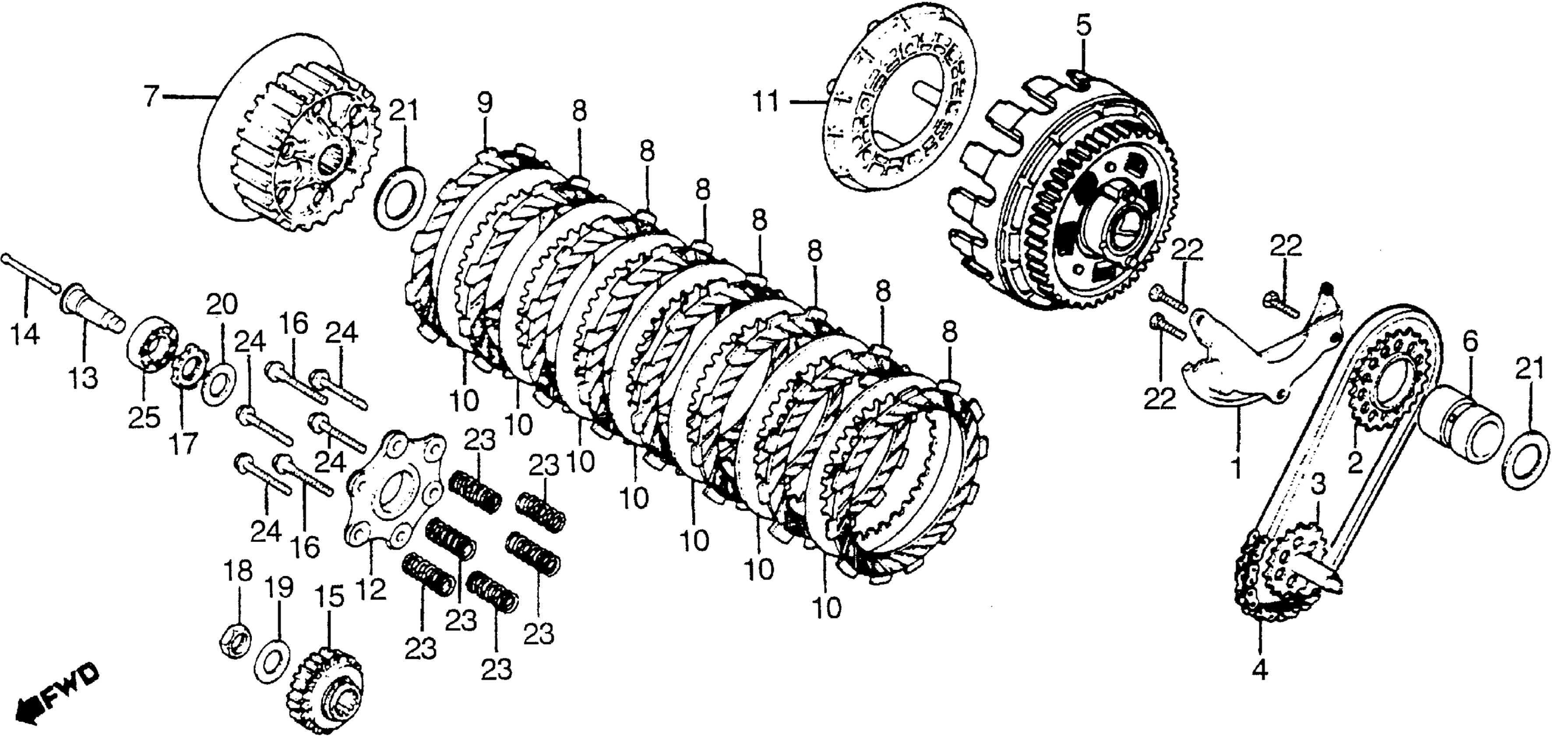

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 CLUTCH Diagram
#
Description
Price
1
PLATE, OIL SEPARATE (NOT AVAILABLE)
11140-422-000
Unavailable
2
SPROCKET, OIL PUMP DRIVE (37T) (NOT AVAILABLE)
15131-422-000
Unavailable
3
SPROCKET, OIL PUMP DRIVEN (28T) (NOT AVAILABLE)
15134-422-000
Unavailable
4
CHAIN, OIL PUMP (NOT AVAILABLE)
15136-422-003
Unavailable
5
CLUTCH (OUTER) (NOT AVAILABLE)
22100-MA2-000
Unavailable
6
GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)
22116-MA2-000
Unavailable
7
CENTER, CLUTCH (NOT AVAILABLE)
22120-422-000
Unavailable
8
DISK A, CLUTCH FRICTION
22201-422-000
Unavailable
9
DISK B, CLUTCH FRICTION
22202-422-000
Unavailable
10
PLATE, CLUTCH
22321-422-000
Unavailable
11
PLATE, CLUTCH PRESSURE (NOT AVAILABLE)
22350-422-020
Unavailable
12
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22360-422-000
Unavailable
13
PIN, CLUTCH LIFTER GUIDE (NOT AVAILABLE)
22366-MA2-000
Unavailable
14
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-422-000
Unavailable
15
GEAR ASSY., PRIMARY DRIVEN (NOT AVAILABLE) This part replaces 23120-MA2-000.
23120-422-010
Unavailable
15
GEAR ASSY., PRIMARY DRIVEN (NOT AVAILABLE) This part replaces 23120-422-000.
23120-422-010
Unavailable
15
GEAR ASSY., PRIMARY DRIVEN (NOT AVAILABLE)
23120-422-010
Unavailable
16
BOLT, FLANGE (6X32) (NOT AVAILABLE)
90008-422-000
Unavailable
17
NUT, LOCK (25MM)
90050-MB6-000
Unavailable
17
NUT, LOCK (25MM) This part replaces 90050-422-000.
90050-MB6-000
Unavailable
18
NUT, LOCK (22MM) This part replaces 90051-422-000.
90201-MB0-770
Unavailable
18
NUT, LOCK (22MM)
90201-MB0-770
Unavailable
19
WASHER, SPRING (22MM) (NOT AVAILABLE)
90432-422-000
Unavailable
20
WASHER (25MM) (NOT AVAILABLE)
90434-422-000
Unavailable
21
WASHER, THRUST (30MM) (NOT AVAILABLE)
90458-MA2-000
Unavailable
