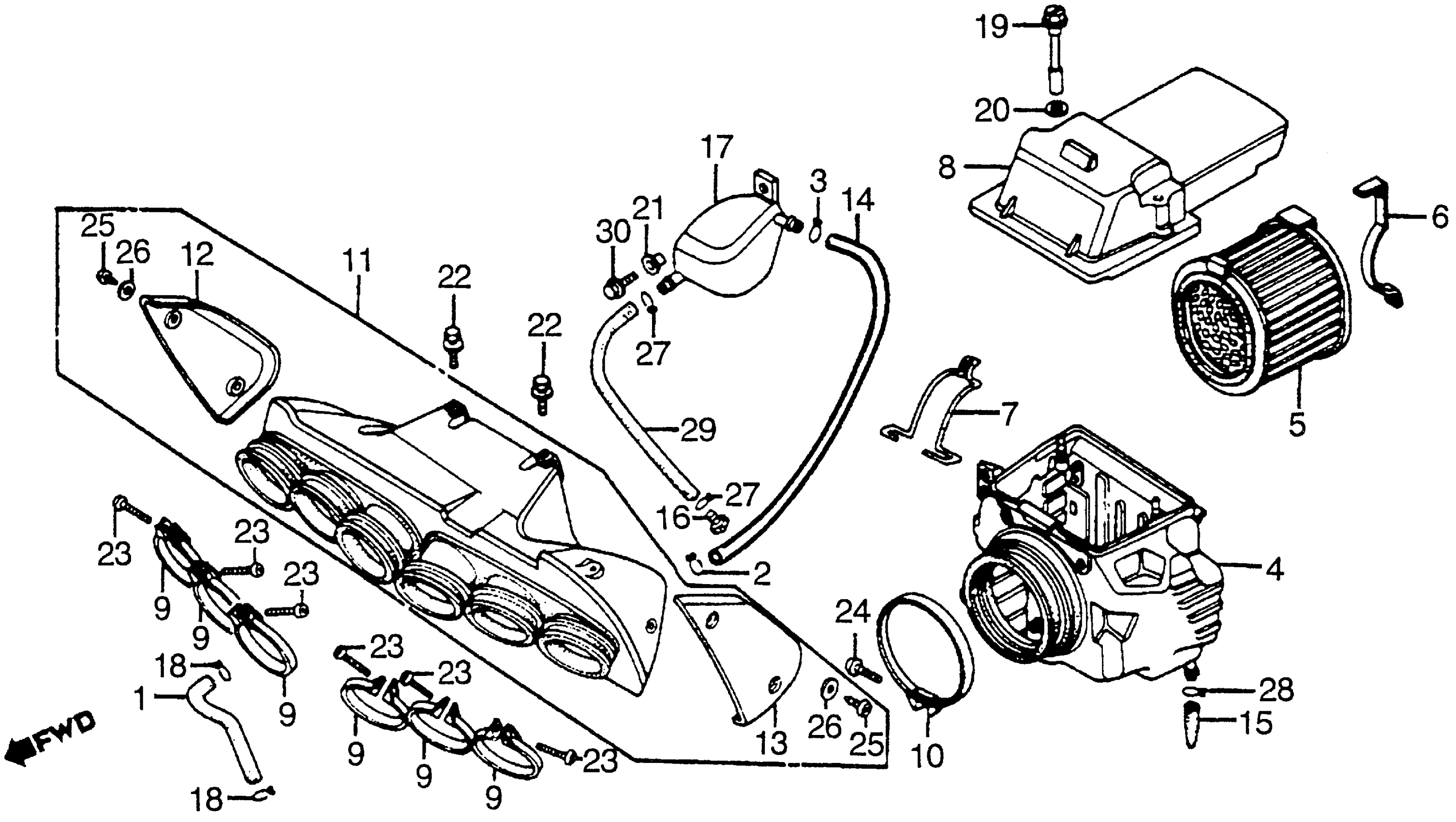

Honda CBXA (82) SUPER SPORT, JPN, VIN# JH2SC060-CC400001 AIR CLEANER Diagram

#

Description
Price

1

TUBE, BREATHER

15763-422-000

Unavailable

2

CLIP, BREATHER TUBE

15772-292-010

$2.80

3

CLIP, BREATHER TUBE

15772-500-010

$3.64

3

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.64

4

CASE ASSY., AIR CLEANER (NOT AVAILABLE)

17205-MA2-305

Unavailable

5

ELEMENT ASSY., AIR CLEANER

17210-MA2-000

Unavailable

6

SPRING, ELEMENT SETTING (NOT AVAILABLE)

17217-MA2-000

Unavailable

7

BAND, AIR CLEANER DUCT (NOT AVAILABLE)

17234-469-000

Unavailable

8

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-469-000

Unavailable

9

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17255-422-000.

95018-60250

$5.81

9

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 90652-GHB-730.

95018-60250

$5.81

9

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$5.81

10

BAND, CONNECTING TUBE This part replaces 17256-422-000.

17256-HB9-000

Unavailable

11

CHAMBER ASSY., AIR CLEANER (NOT AVAILABLE)

17300-MA2-000

Unavailable

12

PROTECTOR, R. AIR CLEANER CHAMBER SIDE (NOT AVAILABLE)

17317-MA2-000

Unavailable

13

PROTECTOR, L. AIR CLEANER CHAMBER SIDE (NOT AVAILABLE)

17318-MA2-000

Unavailable

14

TUBE, DRAIN (NOT AVAILABLE)

17358-MA2-670

Unavailable

15

TUBE, DRAIN (NOT AVAILABLE)

17359-MA2-000

Unavailable

16

PLUG, BREATHER TUBE

17370-419-700

$3.49

17

TANK, STORAGE (NOT AVAILABLE)

17551-MA2-670

Unavailable

18

CLIP, AIR HOSE (16MM)

18534-634-670

$4.48

19

NUT, AIR CLEANER DUCT SETTING

90126-422-000

$7.52

20

WASHER (7X12)

90501-310-000

$1.48

21

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.77

22

BOLT-WASHER (6X35) (NOT AVAILABLE)

93481-06035-00

Unavailable

23

SCREW, PAN (4X20)

93500-04020-0G

$0.71

24

SCREW, PAN (5X16)

93500-05016-0A

$0.83

25

SCREW, TAPPING (4X10)

93901-34280

$0.75

26

WASHER, PLAIN (4MM)

94101-04700

$0.86

27

CLIP, TUBE (B12.5)

95002-02130

$1.04

28

CLIP, TUBE (C11)

95002-70000

$1.49

29

BULK HOSE, VACUUM (8X1000) (8X330)

95005-80001-20M

$21.47

30

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.48

30

BOLT, FLANGE (6X16)

95701-06016-07

$1.48
