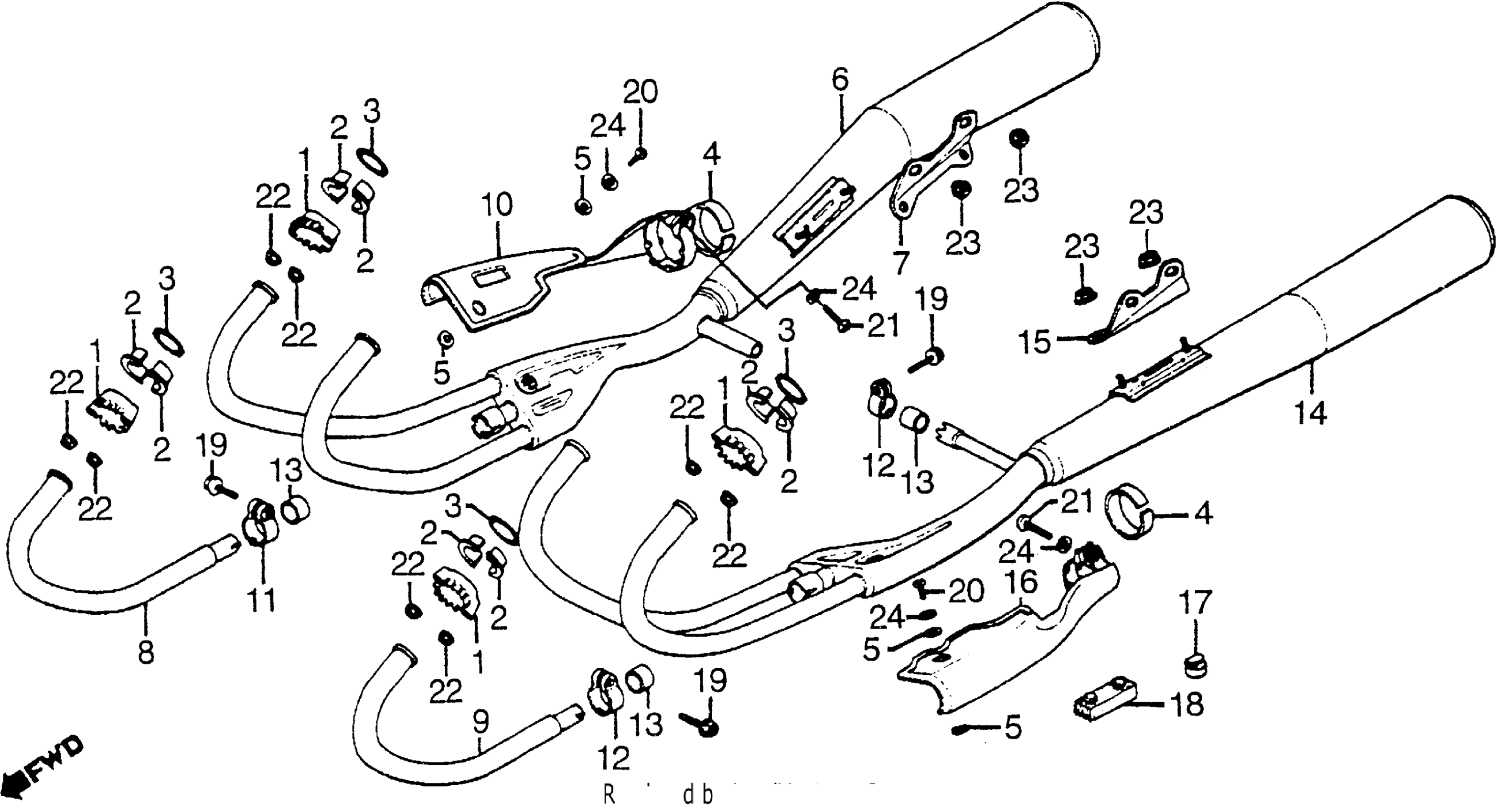

Honda CBXA (81) SUPER SPORT, JPN, VIN# JH2SC060-BC300004 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-422-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-422-000

Unavailable

3

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

GASKET, EX. PIPE This part replaces 18291-422-000.

18291-MN4-920

$5.31

3

GASKET, EX. PIPE This part replaces 18291-422-306.

18291-MN4-920

$5.31

4

GASKET, PROTECTOR This part replaces 18292-422-000.

18292-422-010

Unavailable

4

GASKET, PROTECTOR

18292-422-010

Unavailable

5

GASKET, PROTECTOR

18293-MCA-780

$4.85

5

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

5

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

6

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-MA2-670.

18300-MA2-677

Unavailable

6

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-MA2-671.

18300-MA2-677

Unavailable

6

MUFFLER, R. EX. (NOT AVAILABLE)

18300-MA2-677

Unavailable

7

STAY, R. MUFFLER (NOT AVAILABLE)

18316-422-000

Unavailable

8

PIPE 2, EX. (NOT AVAILABLE)

18322-422-003

Unavailable

9

PIPE 5, EX. (NOT AVAILABLE)

18332-422-003

Unavailable

10

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18350-422-003

Unavailable

11

BAND R EX PIPE This part replaces 18375-MA2-000.

18375-MA2-405

Unavailable

12

BAND L EX PIPE This part replaces 18376-MA2-000.

18376-MA2-405

Unavailable

13

GASKET, MUFFLER

18391-MN5-650

$20.61

13

GASKET, MUFFLER This part replaces 18391-310-000.

18391-MN5-650

$20.61

13

GASKET, MUFFLER This part replaces 18391-310-306.

18391-MN5-650

$20.61

14

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-MA2-670.

18400-MA2-677

Unavailable

15

STAY, L. MUFFLER (NOT AVAILABLE)

18416-422-000

Unavailable

16

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18450-422-003

Unavailable

17

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

17

RUBBER, STAND STOPPER This part replaces 50524-422-000.

50524-MG9-000

$6.73

18

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

18

RUBBER, STAND STOPPER This part replaces 50524-422-000.

50524-MG9-000

$6.73

18

RUBBER, SIDE STAND STOPPER (NOT AVAILABLE)

50531-422-000

Unavailable

19

BOLT, SPECIAL FLANGE (8X30) (NOT AVAILABLE)

90179-422-000

Unavailable

20

SCREW, PAN (6X10)

93500-06010-4J

Unavailable

20

SCREW, PAN (6X10) This part replaces 93500-06010-49.

93500-06010-4J

Unavailable

21

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

21

SCREW, PAN (6X16)

93500-06016-0A

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

NUT, FLANGE (8MM)

94050-08080

$1.49

24

WASHER, PLAIN (6MM)

94101-06200

$1.49
