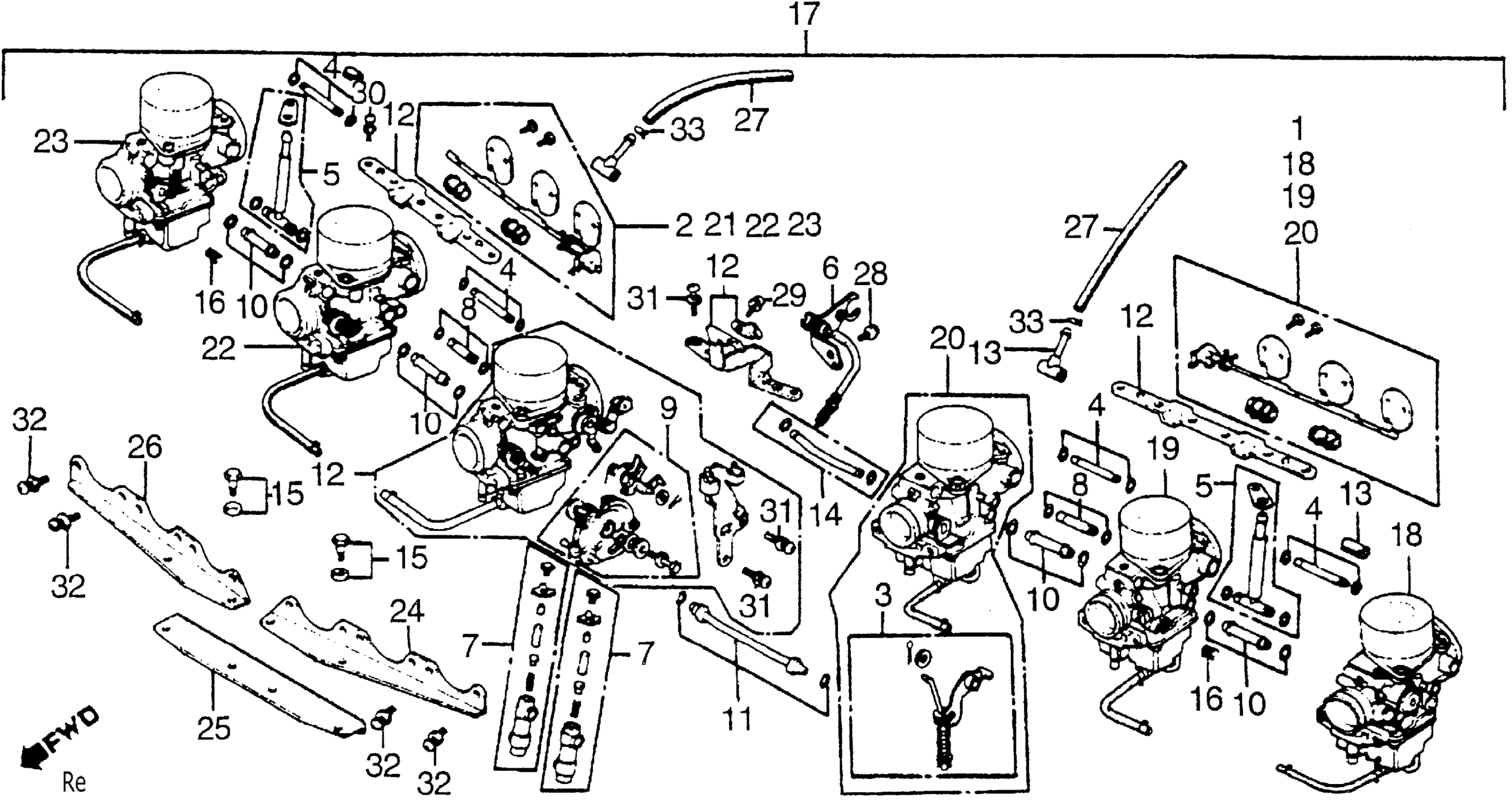

Honda CBXA (81) SUPER SPORT, JPN, VIN# JH2SC060-BC300004 CARBURETOR ASSY. LINK Diagram

#

Description
Price

1

LINK A SET, CHOKE (NOT AVAILABLE)

16017-MA2-305

Unavailable

2

LINK B SET, CHOKE (NOT AVAILABLE)

16018-MA2-305

Unavailable

3

ROD SET, PUMP (NOT AVAILABLE)

16019-MA2-004

Unavailable

4

JOINT SET A, FUEL (NOT AVAILABLE)

16026-422-004

Unavailable

5

JOINT SET B, FUEL (NOT AVAILABLE)

16027-469-004

Unavailable

6

SCREW SET B (NOT AVAILABLE)

16028-469-004

Unavailable

7

HOLDER SET, ADJ. (NOT AVAILABLE)

16030-422-004

Unavailable

8

JOINT SET C, FUEL

16031-469-004

Unavailable

9

LINK SET, THROTTLE (NOT AVAILABLE)

16032-MA2-004

Unavailable

10

JOINT SET E, FUEL (NOT AVAILABLE)

16033-422-004

Unavailable

11

JOINT SET F, FUEL (NOT AVAILABLE)

16034-422-004

Unavailable

12

PLATE SET, RR. STAY (NOT AVAILABLE)

16035-422-004

Unavailable

13

JOINT SET D, FUEL (NOT AVAILABLE)

16036-MA2-004

Unavailable

14

JOINT SET G, FUEL (NOT AVAILABLE)

16037-469-004

Unavailable

15

SCREW SET E (NOT AVAILABLE)

16049-422-004

Unavailable

16

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

17

CARBURETOR ASSY. (NOT AVAILABLE)

16100-MA2-004

Unavailable

18

CARBURETOR ASSY. 1 (NOT AVAILABLE) This part replaces 16101-MA2-305.

16101-MA2-315

Unavailable

18

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-MA2-315

Unavailable

19

CARBURETOR ASSY. 2

16102-MA2-305

Unavailable

20

CARBURETOR ASSY. 3

16103-MA2-305

Unavailable

21

CARBURETOR ASSY. 4

16104-MA2-305

Unavailable

22

CARBURETOR ASSY. 5

16105-MA2-305

Unavailable

23

CARBURETOR ASSY. 6

16106-MA2-305

Unavailable

24

PLATE, L. STAY (NOT AVAILABLE)

16119-422-004

Unavailable

25

PLATE, STAY (NOT AVAILABLE)

16120-469-004

Unavailable

26

PLATE, R. STAY (NOT AVAILABLE)

16121-422-004

Unavailable

27

PIPE, OVERFLOW This part replaces 16143-HA8-405.

16198-ML4-405

Unavailable

27

PIPE, OVERFLOW This part replaces 16198-KR3-405.

16198-ML4-405

Unavailable

27

PIPE, OVERFLOW This part replaces 16198-MC9-791.

16198-ML4-405

Unavailable

27

TUBE, FUEL

16198-ML4-405

Unavailable

27

PIPE, OVERFLOW This part replaces 16199-422-004.

16198-ML4-405

Unavailable

28

SCREW-WASHER (4X8)

93892-04008-00

$1.49

29

SCREW-WASHER (4X12)

93892-04012-00

$1.49

30

SCREW-WASHER (5X12)

93892-05012-00

$1.49

31

SCREW-WASHER (5X16)

93892-05016-00

$1.49

32

SCREW-WASHER (6X14)

93892-06014-00

$1.49

33

CLIP, TUBE (B8)

95002-02080

$1.80
