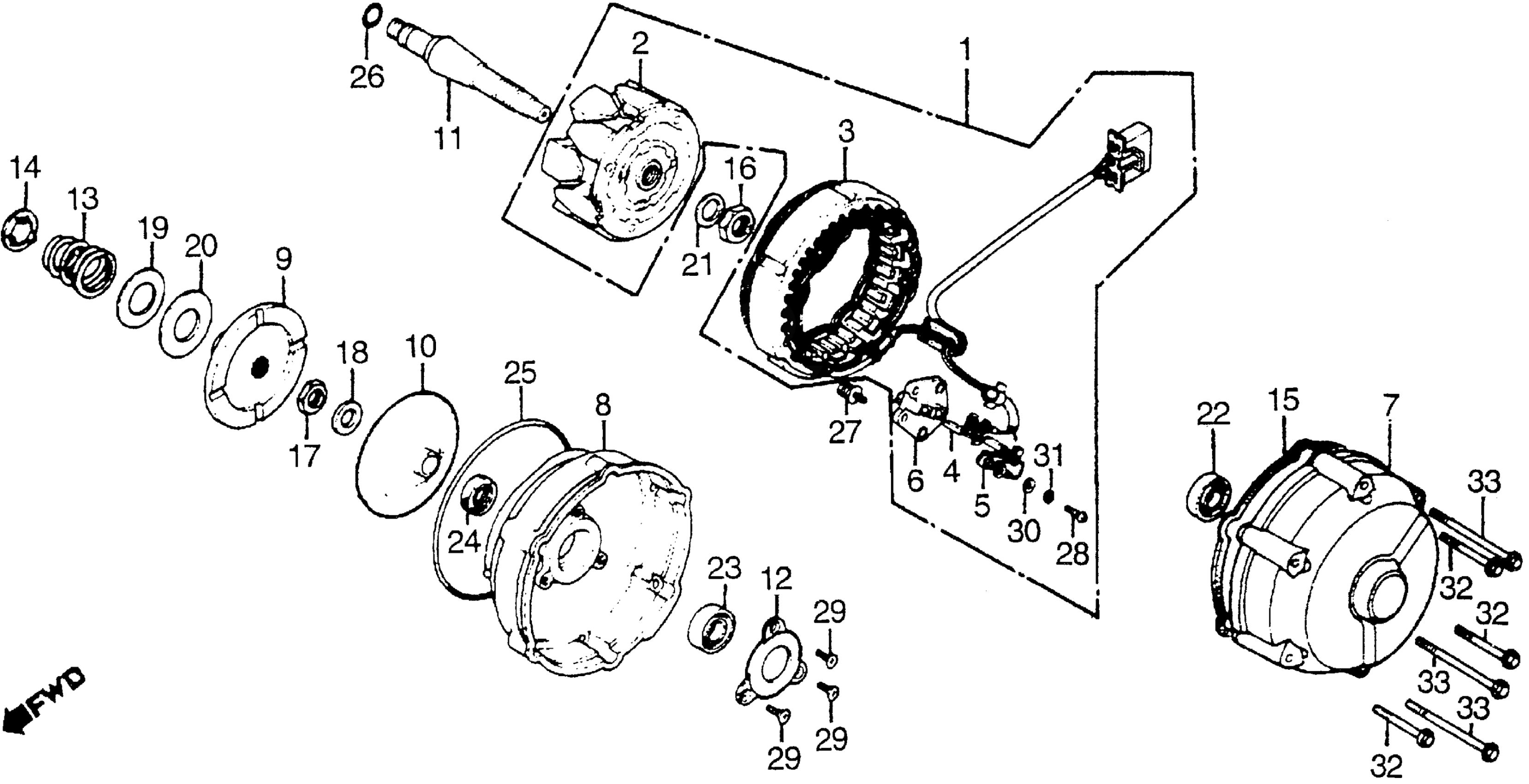

Honda CBXA (81) SUPER SPORT, JPN, VIN# JH2SC060-BC300004 ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE) This part replaces 31100-MA2-005.

31100-MA2-015

Unavailable

1

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-MA2-015

Unavailable

2

ROTOR (HITACHI) (NOT AVAILABLE)

31110-422-005

Unavailable

3

STATOR This part replaces 31120-MA2-005.

31120-422-415

Unavailable

4

BRUSH A This part replaces 31124-MA2-005.

31124-MG5-000

Unavailable

4

BRUSH A

31124-MG5-000

Unavailable

4

BRUSH A This part replaces 31124-422-005.

31124-MG5-000

Unavailable

5

BRUSH B This part replaces 31125-MA2-005.

31125-MG5-005

Unavailable

5

BRUSH B

31125-MG5-005

Unavailable

5

BRUSH B This part replaces 31125-422-005.

31125-MG5-005

Unavailable

6

BASE, BRUSH

31126-422-015

Unavailable

7

COVER A, ALTERNATOR (NOT AVAILABLE)

31131-MA2-000

Unavailable

8

COVER B, ALTERNATOR (NOT AVAILABLE)

31132-MA2-000

Unavailable

9

PLATE A, ALTERNATOR COUPLING

31133-422-000

Unavailable

10

PLATE B, ALTERNATOR COUPLING

31134-422-000

Unavailable

11

SHAFT, ALTERNATOR (NOT AVAILABLE)

31135-422-000

Unavailable

12

PLATE, BEARING SETTING (NOT AVAILABLE)

31136-422-000

Unavailable

13

SPRING, ALTERNATOR COUPLING

31138-422-010

Unavailable

14

SEAT, ALTERNATOR COUPLING SPRING (NOT AVAILABLE)

31139-422-000

Unavailable

15

GASKET, ALTERNATOR COVER (AS) This part replaces 31140-422-010.

31140-422-306

Unavailable

15

GASKET, ALTERNATOR COVER (AS)

31140-422-306

Unavailable

16

NUT, HEX. (16MM) (NOT AVAILABLE)

90201-611-010

Unavailable

17

NUT A, LOCK (14MM) (NOT AVAILABLE)

90233-701-010

Unavailable

18

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-395-000

Unavailable

19

SEAT, ALTERNATOR SPRING (NOT AVAILABLE)

90458-469-000

Unavailable

20

PLATE, SPECIAL (NOT AVAILABLE)

90466-422-000

Unavailable

21

WASHER, FR. FORK (NOT AVAILABLE)

90540-051-000

Unavailable

22

BEARING, RADIAL BALL (6201) (NACHI) (NOT AVAILABLE)

91004-422-003

Unavailable

22

BEARING, RADIAL BALL (6201) (NACHI) (NOT AVAILABLE) This part replaces 91004-422-004.

91004-422-003

Unavailable

23

BEARING, RADIAL BALL (6203) (NOT AVAILABLE)

91005-422-014

Unavailable

24

OIL SEAL (22X35X7) (ARAI)

91216-PA0-003

$10.74

24

OIL SEAL (22X35X7) (ARAI) This part replaces 91216-397-005.

91216-PA0-003

$10.74

25

GASKET, ALTERNATOR CASE

91302-422-000

Unavailable

26

O-RING (12.5X2.2)

91303-634-010

$5.69

27

BOLT-WASHER (6X16) | Use from Engine SN 2302139

93402-06016-00

$1.73

27

BOLT-WASHER (6X16) | Use up to Engine SN 2302138

93403-06016-00

$1.55

27

BOLT-WASHER (6X16) | Use up to Engine SN 2302138 This part replaces 93413-06016-00.

93403-06016-00

$1.55

27

BOLT-WASHER (6X16) | Use from Engine SN 2302139 This part replaces 93492-06016-00.

93402-06016-00

$1.73

27

BOLT-WASHER (6X16) | Use up to Engine SN 2302138 This part replaces 93493-06016-00.

93403-06016-00

$1.55

28

SCREW, PAN (4X12)

93500-04012-0H

$1.49

29

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

29

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

30

WASHER, PLAIN (4MM)

94101-04800

$1.49

31

WASHER, SPRING (4MM)

94111-04800

$1.49

32

BOLT, FLANGE (6X65)

96000-06065-02

Unavailable

33

BOLT, FLANGE (6X90) (NOT AVAILABLE)

96000-06090-02

Unavailable
