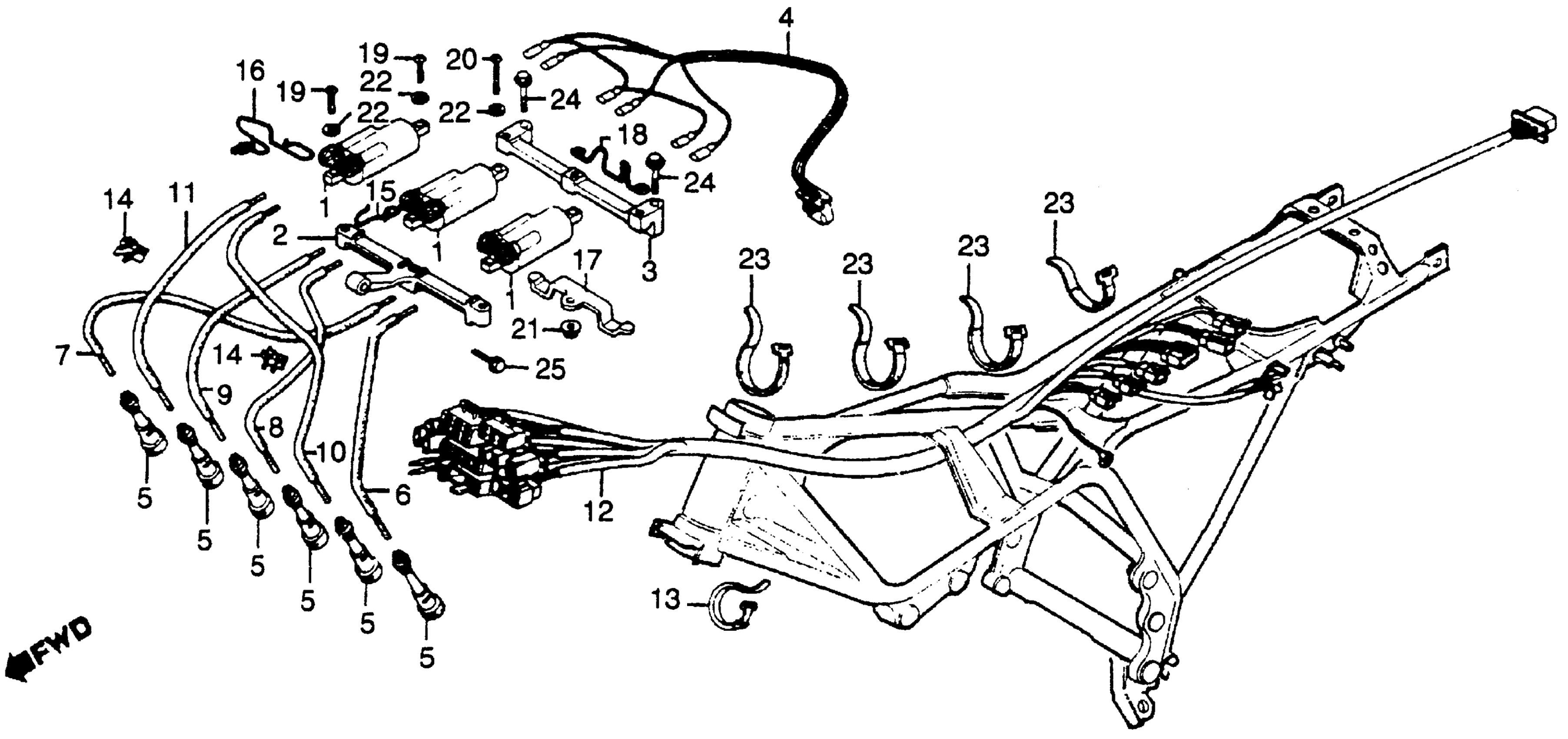

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

COIL ASSY., IGNITION This part replaces 30500-422-003.

30500-422-013

$194.84

1

COIL ASSY., IGNITION

30500-422-013

$194.84

2

STAY A, IGNITION COIL (NOT AVAILABLE)

30511-422-000

Unavailable

3

STAY B, IGNITION COIL (NOT AVAILABLE)

30512-422-000

Unavailable

4

SUB-WIRE, IGNITION (NOT AVAILABLE)

30550-422-000

Unavailable

5

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

5

CAP ASSY. This part replaces 30710-405-153.

30700-MW3-003

$14.34

5

CAP ASSY. This part replaces 30710-405-163.

30700-MW3-003

$14.34

6

WIRE, COIL (4-2) This part replaces 30750-MA2-405.

30750-196-P00

Unavailable

6

WIRE, COIL (1-1)

30750-196-P00

Unavailable

6

WIRE, COIL (4-2) This part replaces 30751-MA2-000.

30750-196-P00

Unavailable

6

WIRE, COIL (4-2) This part replaces 30751-422-000.

30750-196-P00

Unavailable

6

WIRE, COIL (4-2) This part replaces 30751-422-010.

30750-196-P00

Unavailable

7

WIRE, COIL (2-6)

30750-MG9-P00

$24.27

7

WIRE SET, IGNITION (1-1) This part replaces 30750-MG9-405.

30750-MG9-P00

$24.27

7

WIRE SET, IGNITION (1-1) This part replaces 30752-MA2-000.

30750-MG9-P00

$24.27

7

WIRE SET, IGNITION (1-1) This part replaces 30752-422-010.

30750-MG9-P00

$24.27

7

WIRE SET, IGNITION (1-1) This part replaces 30752-422-020.

30750-MG9-P00

$24.27

8

WIRE, IGNITION

30750-MA0-P00

Unavailable

8

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

8

WIRE, IGNITION This part replaces 30753-MA2-000.

30750-MA0-P00

Unavailable

8

WIRE, IGNITION This part replaces 30753-422-000.

30750-MA0-P00

Unavailable

8

WIRE, IGNITION This part replaces 30753-422-010.

30750-MA0-P00

Unavailable

9

WIRE, IGNITION

30750-MA0-P00

Unavailable

9

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

9

WIRE, IGNITION This part replaces 30754-MA2-000.

30750-MA0-P00

Unavailable

9

WIRE, IGNITION This part replaces 30754-422-000.

30750-MA0-P00

Unavailable

9

WIRE, IGNITION This part replaces 30754-422-010.

30750-MA0-P00

Unavailable

10

WIRE, COIL (4-2) This part replaces 30750-MA2-405.

30750-196-P00

Unavailable

10

WIRE, COIL (5-2)

30750-196-P00

Unavailable

10

WIRE, COIL (4-2) This part replaces 30755-MA2-000.

30750-196-P00

Unavailable

10

WIRE, COIL (4-2) This part replaces 30755-422-010.

30750-196-P00

Unavailable

10

WIRE, COIL (4-2) This part replaces 30755-422-020.

30750-196-P00

Unavailable

11

WIRE, IGNITION

30750-MA0-P00

Unavailable

11

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

11

WIRE, IGNITION This part replaces 30756-MA2-000.

30750-MA0-P00

Unavailable

11

WIRE, IGNITION This part replaces 30756-422-010.

30750-MA0-P00

Unavailable

11

WIRE, IGNITION This part replaces 30756-422-020.

30750-MA0-P00

Unavailable

12

WIRE HARNESS (NOT AVAILABLE)

32100-422-000

Unavailable

13

BAND B1, WIRE

32161-404-000

$2.23

14

CLAMP, COIL WIRE (NOT AVAILABLE)

32981-422-000

Unavailable

15

GUIDE, COIL WIRE (NOT AVAILABLE)

50462-422-000

Unavailable

16

GUIDE, CLUTCH CABLE (NOT AVAILABLE)

50463-422-000

Unavailable

17

CLAMP, OIL HOSE (NOT AVAILABLE)

50464-422-000

Unavailable

18

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

50465-422-000

Unavailable

19

SCREW, PAN (6X25)

93500-06025-0H

$1.49

19

SCREW, PAN (6X25) This part replaces 93500-06025-08.

93500-06025-0H

$1.49

20

SCREW, PAN (6X35) (NOT AVAILABLE)

93500-06035-0H

Unavailable

21

NUT, FLANGE (6MM)

94050-06080

$1.49

22

WASHER, SPRING (6MM)

94111-06800

$1.49

23

BAND A2, WIRE

95014-61200

$2.33

24

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

24

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

25

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

25

BOLT, FLANGE (6X20) This part replaces 95720-06020-08.

95701-06020-08

$1.49
