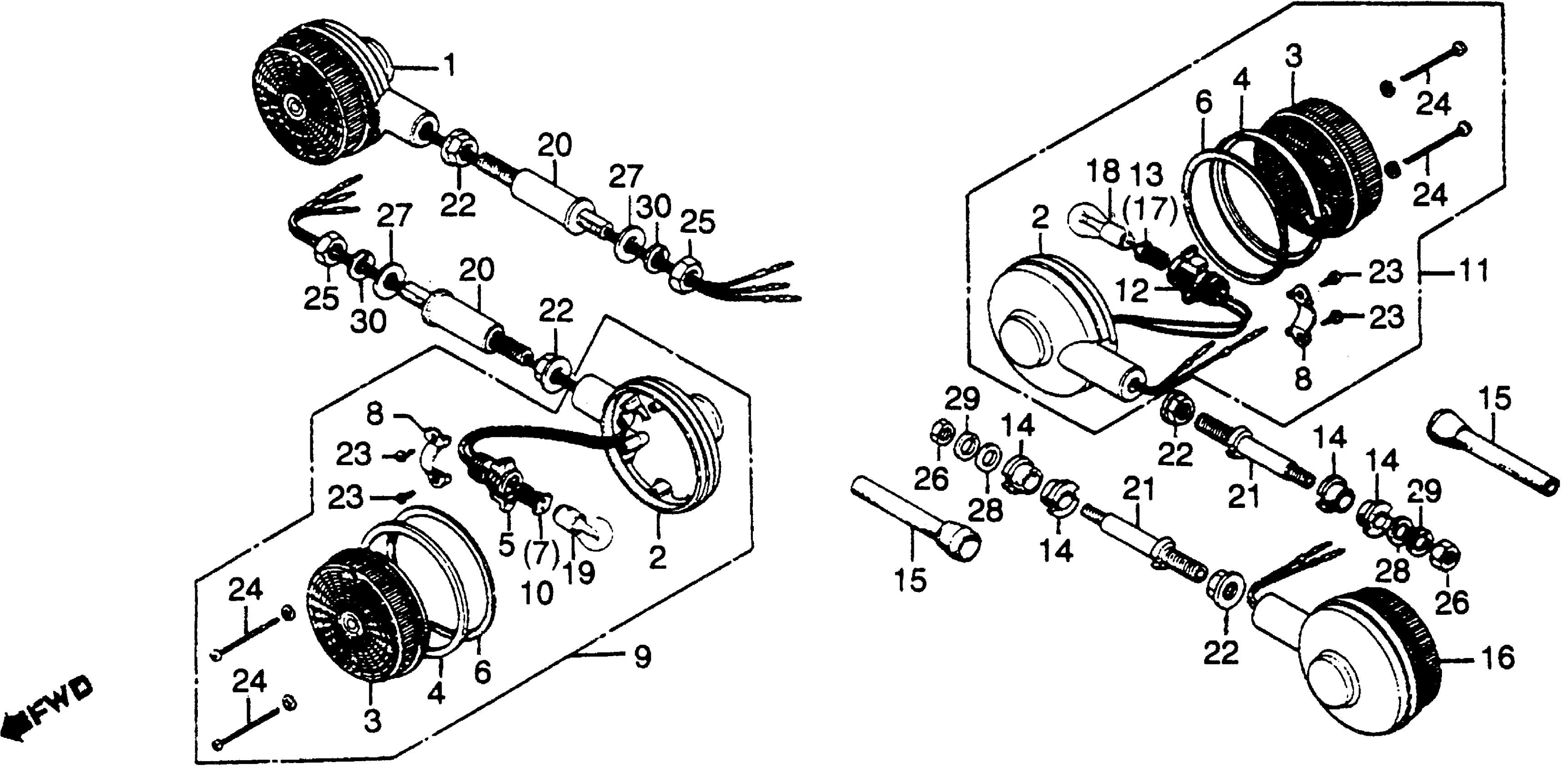

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (12V 23/8W) (NOT AVAILABLE) This part replaces 33400-422-672.

33400-422-679

Unavailable

1

TURN SIGNAL ASSY., R. FR. (12V 23/8W) (NOT AVAILABLE)

33400-422-679

Unavailable

2

BASE, TURN SIGNAL (NOT AVAILABLE)

33401-422-672

Unavailable

3

LENS, TURN SIGNAL (NOT AVAILABLE)

33402-422-003

Unavailable

4

RIM, TURN SIGNAL (NOT AVAILABLE)

33404-422-003

Unavailable

5

SOCKET A, TURN SIGNAL (NOT AVAILABLE)

33405-422-671

Unavailable

6

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

7

WIRE, R. TURN SIGNAL (NOT AVAILABLE)

33406-422-671

Unavailable

8

HOLDER, TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-422-003

Unavailable

9

TURN SIGNAL ASSY., R. FR. (12V 23/8W) (NOT AVAILABLE) This part replaces 33400-422-672.

33400-422-679

Unavailable

9

TURN SIGNAL ASSY., R. FR. (12V 23/8W) (NOT AVAILABLE)

33400-422-679

Unavailable

9

TURN SIGNAL ASSY., R. FR. (12V 23/8W) (NOT AVAILABLE) This part replaces 33450-422-672.

33400-422-679

Unavailable

10

WIRE, L. TURN SIGNAL (NOT AVAILABLE)

33456-422-671

Unavailable

11

TURN SIGNAL, R. RR. (12V 23W) (NOT AVAILABLE) This part replaces 33600-422-013.

33600-422-679

Unavailable

11

TURN SIGNAL, R. RR. (12V 23W) (NOT AVAILABLE) This part replaces 33600-422-672.

33600-422-679

Unavailable

11

TURN SIGNAL, R. RR. (12V 23W) (NOT AVAILABLE)

33600-422-679

Unavailable

11

TURN SIGNAL, R. RR. (12V 23W) (NOT AVAILABLE) This part replaces 33650-422-672.

33600-422-679

Unavailable

12

SOCKET B, TURN SIGNAL (NOT AVAILABLE)

33605-422-003

Unavailable

13

CABLE, R. TURN SIGNAL (NOT AVAILABLE)

33606-422-003

Unavailable

14

RUBBER, RR. TURN SIGNAL MOUNTING

33607-422-000

Unavailable

15

PROTECTOR, WIRE TUBE (NOT AVAILABLE)

33619-422-000

Unavailable

16

TURN SIGNAL, R. RR. (12V 23W) (NOT AVAILABLE)

33600-422-679

Unavailable

16

TURN SIGNAL, R. RR. (12V 23W) (NOT AVAILABLE) This part replaces 33650-422-672.

33600-422-679

Unavailable

17

WIRE, L. TURN SIGNAL (NOT AVAILABLE)

33656-422-003

Unavailable

18

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

19

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

19

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

20

BOLT, FR. This part replaces 90129-422-004.

90129-422-611

Unavailable

21

BOLT, RR. This part replaces 90155-422-004.

90155-422-611

Unavailable

22

NUT, TURN SIGNAL (NOT AVAILABLE)

90156-422-000

Unavailable

23

SCREW, TAPPING (3X8)

93901-32120

$1.49

24

SCREW, TAPPING (4X30)

93901-34710

$1.49

25

NUT, HEX. (14MM)

94001-14000-0S

$1.98

26

NUT, HEX. (12MM)

94002-12000-0S

$2.06

27

WASHER, PLAIN (14MM)

94101-14000

$1.49

28

WASHER, PLAIN (12MM)

94102-12000

$1.49

29

WASHER, SPRING (12MM)

94111-12000

$1.49

30

WASHER, SPRING (14MM) (NOT AVAILABLE)

94111-14000

Unavailable
