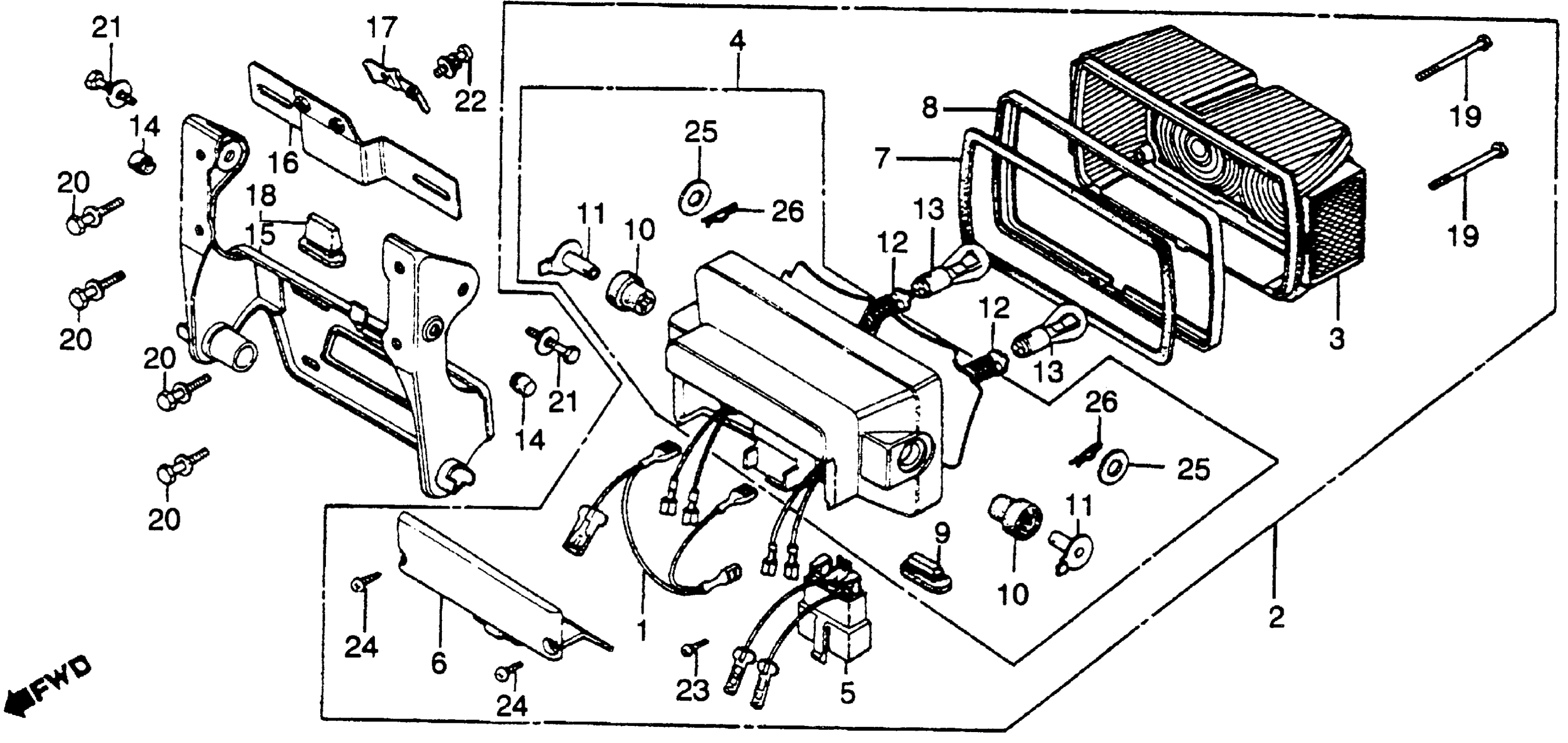

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 TAILLIGHT Diagram
#
Description
Price
1
CABLE, GROUND (NOT AVAILABLE)
32101-422-003
Unavailable
2
TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)
33701-422-673
Unavailable
3
LENS, TAILLIGHT
33702-422-671
Unavailable
4
BASE, TAILLIGHT (NOT AVAILABLE)
33703-422-673
Unavailable
5
CONNECTOR (NOT AVAILABLE)
33704-422-003
Unavailable
6
COVER, TAILLIGHT (NOT AVAILABLE)
33708-422-003
Unavailable
7
GASKET, TAILLIGHT LENS
33709-422-003
Unavailable
8
RIM, TAILLIGHT (NOT AVAILABLE)
33710-422-003
Unavailable
9
RUBBER, SETTING (NOT AVAILABLE)
33711-422-013
Unavailable
10
RUBBER B, SETTING (NOT AVAILABLE)
33713-422-013
Unavailable
11
COLLAR, TAILLIGHT SETTING
33715-422-013
Unavailable
12
WIRE, TAILLIGHT (NOT AVAILABLE)
33718-422-003
Unavailable
13
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.
34906-MG9-771
$4.15
14
RUBBER, RR. COWL CUSHION (NOT AVAILABLE)
84104-422-000
Unavailable
15
BRACKET, TAILLIGHT (NOT AVAILABLE)
84700-422-672
Unavailable
20
BOLT-WASHER (6X45) (NOT AVAILABLE)
93495-06045-00
Unavailable
