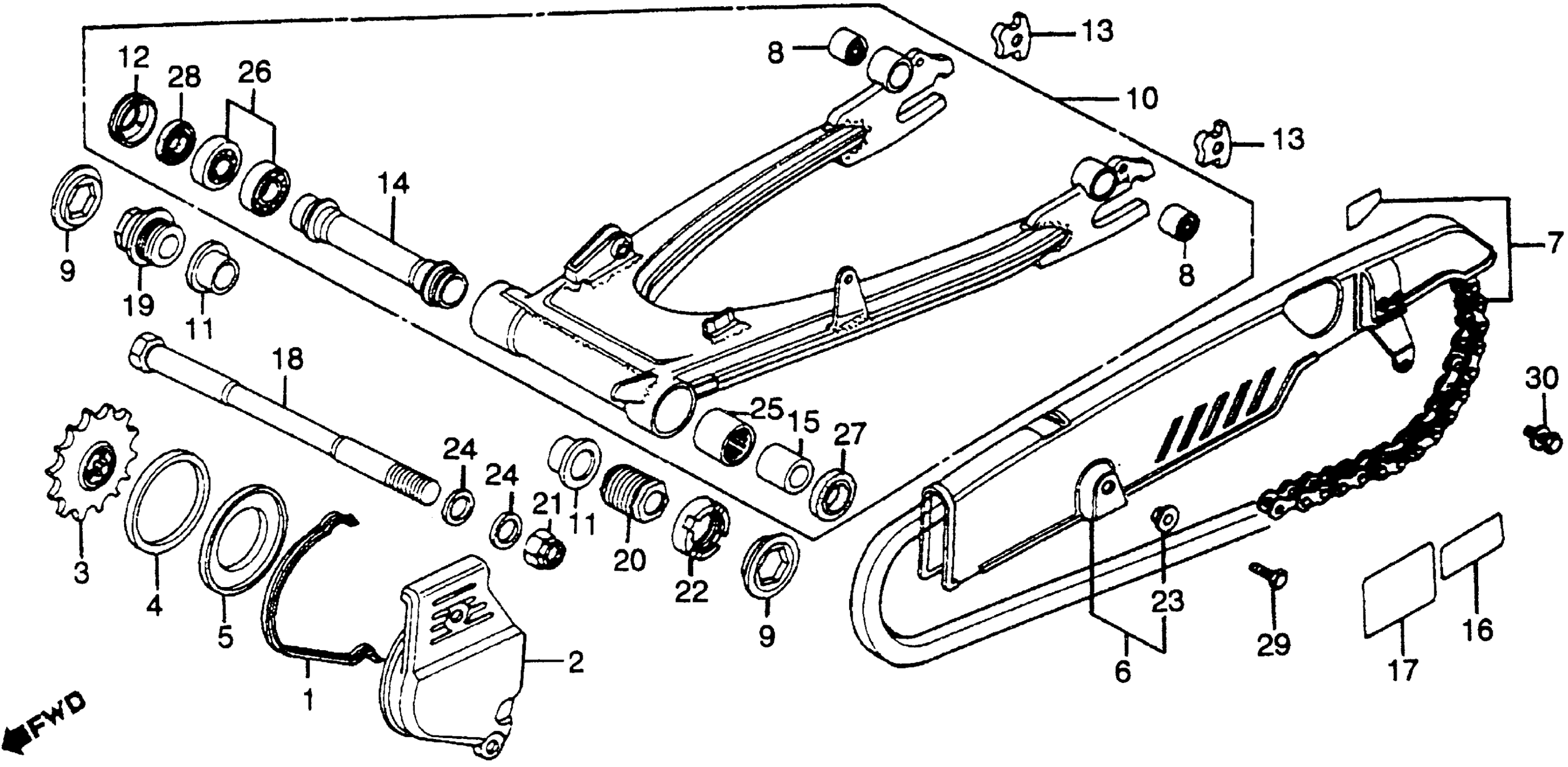

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 SWINGARM + CHAIN CASE 80 Diagram

#

Description
Price

1

GASKET, L. RR. COVER (NOT AVAILABLE)

11343-422-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-422-000

Unavailable

3

SPROCKET, DRIVE (18T) (NOT AVAILABLE)

23801-469-000

Unavailable

4

RING, DAMPER (NOT AVAILABLE)

23821-445-770

Unavailable

5

GUIDE, DAMPER RING (NOT AVAILABLE)

23822-469-000

Unavailable

6

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-422-000

Unavailable

7

CHAIN SET, DRIVE (102L) (DAIDO) (NOT AVAILABLE)

40535-469-721

Unavailable

7

CHAIN SET, DRIVE (102L) (DAIDO) (NOT AVAILABLE) This part replaces 40535-469-722.

40535-469-721

Unavailable

8

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

9

CAP, PIVOT (NOT AVAILABLE)

50355-469-000

Unavailable

10

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-469-000ZA

Unavailable

11

COLLAR, SWINGARM SIDE (NOT AVAILABLE)

52102-469-000

Unavailable

12

RETAINER, SWINGARM PIVOT BEARING (NOT AVAILABLE)

52103-469-000

Unavailable

13

STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.

52136-ME1-670

Unavailable

14

COLLAR A, SWINGARM CENTER (NOT AVAILABLE)

52141-469-000

Unavailable

15

COLLAR B, SWINGARM CENTER (NOT AVAILABLE)

52142-469-000

Unavailable

16

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-469-670

Unavailable

17

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-425-770

Unavailable

18

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-469-000

Unavailable

19

PIECE, R. SWINGARM PIVOT (NOT AVAILABLE)

90123-469-000

Unavailable

20

PIECE, L. SWINGARM PIVOT (NOT AVAILABLE)

90124-469-000

Unavailable

21

NUT, SELF-LOCK (16MM) (NOT AVAILABLE)

90354-425-830

Unavailable

22

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

23

WASHER (6X20) WASHER, CHAIN CASE SETTING

90512-KF9-900

$3.06

23

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

24

WASHER, PLAIN (16MM)

90559-469-000

$5.35

25

BEARING A, SWINGARM PIVOT (TOYO) (NOT AVAILABLE)

91017-469-003

Unavailable

25

BEARING A, SWINGARM PIVOT (TOYO) (NOT AVAILABLE) This part replaces 91017-469-004.

91017-469-003

Unavailable

25

BEARING A, SWINGARM PIVOT (TOYO) (NOT AVAILABLE) This part replaces 91017-469-005.

91017-469-003

Unavailable

26

BEARING B, SWINGARM PIVOT (NOT AVAILABLE)

91018-469-003

Unavailable

27

DUST SEAL (24X38X8) (NOT AVAILABLE)

91213-469-003

Unavailable

28

OIL SEAL (24X34X5.5) (NOT AVAILABLE) This part replaces 91214-469-003.

91203-148-003

Unavailable

29

BOLT, HEX. (6X10) This part replaces 92000-06010-0G.

92101-06010-0G

Unavailable

29

BOLT, HEX. (6X10)

92101-06010-0G

Unavailable

29

BOLT, HEX. (6X10) This part replaces 92200-06010-0G.

92101-06010-0G

Unavailable

30

BOLT-WASHER (6X10) This part replaces 93411-06010-07.

93401-06010-07

Unavailable

30

BOLT-WASHER (6X10) This part replaces 93481-06010-07.

93401-06010-07

Unavailable
