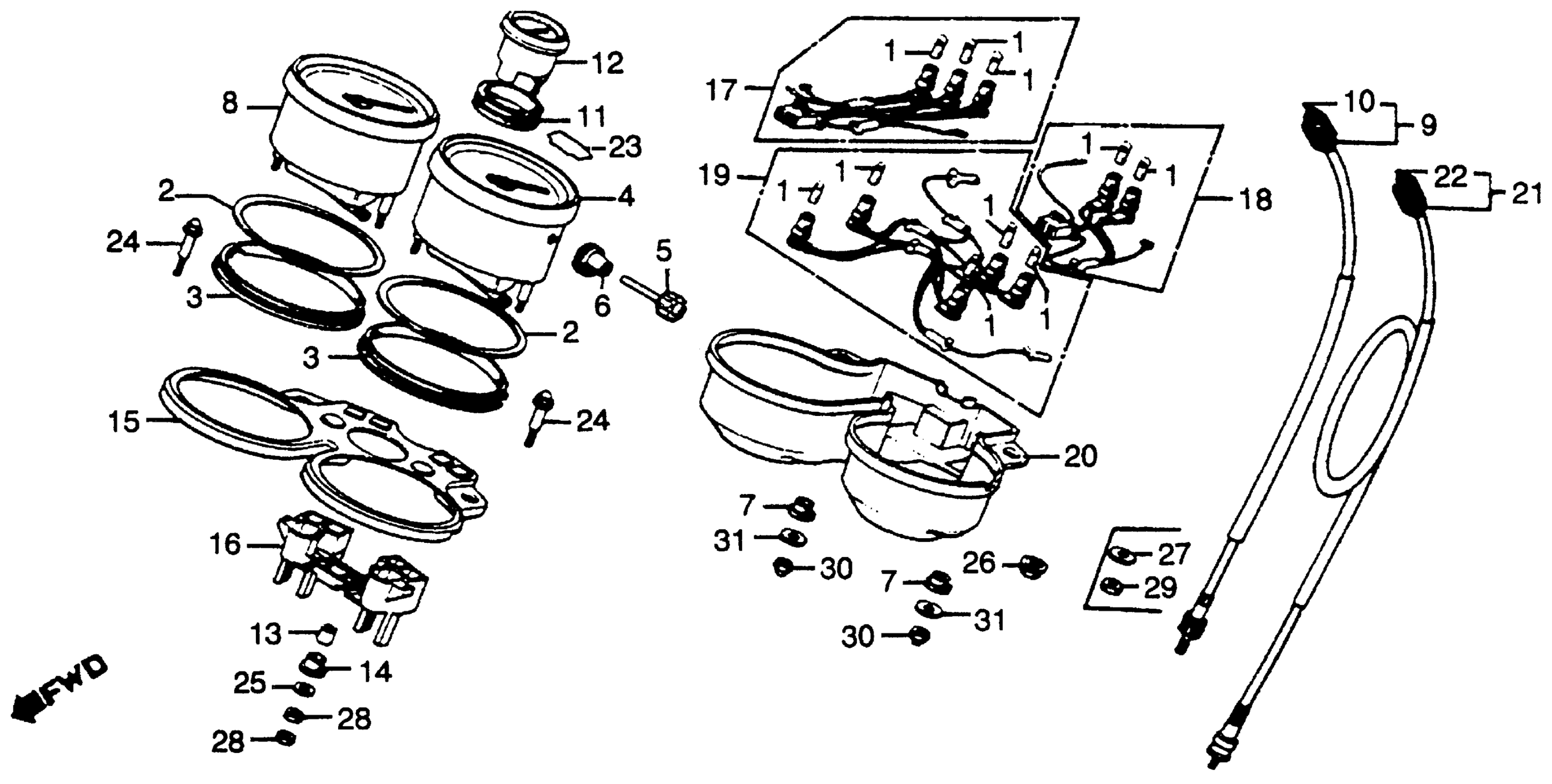

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V 3.4W) (STANLEY)

34902-259-000

$2.18

2

RING, METER (NOT AVAILABLE)

37114-422-008

Unavailable

3

CUSHION, METER (NOT AVAILABLE)

37115-469-000

Unavailable

4

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE) This part replaces 37200-469-670.

37200-469-671

Unavailable

4

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-469-671

Unavailable

5

KNOB, TRIP METER

37220-422-008

Unavailable

6

GROMMET, TRIP METER KNOB (NOT AVAILABLE)

37221-422-008

Unavailable

7

RUBBER, METER MOUNTING (NOT AVAILABLE)

37244-422-000

Unavailable

8

TACHOMETER ASSY. This part replaces 37250-MB7-740.

37250-MB7-830

Unavailable

8

TACHOMETER ASSY. This part replaces 37250-422-008.

37250-MB7-830

Unavailable

8

TACHOMETER ASSY. This part replaces 37250-422-018.

37250-MB7-830

Unavailable

9

CABLE ASSY., TACHOMETER This part replaces 37260-422-000.

44830-165-415

Unavailable

9

CABLE ASSY., TACHOMETER

44830-165-415

Unavailable

10

CABLE, TACHOMETER (INNER) (NOT AVAILABLE)

37261-422-300

Unavailable

11

CUSHION, VOLTMETER (NOT AVAILABLE)

37415-469-000

Unavailable

12

VOLTMETER ASSY. (NOT AVAILABLE)

37420-422-008

Unavailable

13

COLLAR, VOLTMETER SETTING (NOT AVAILABLE)

37423-422-000

Unavailable

14

RUBBER, VOLTMETER SETTING (NOT AVAILABLE)

37424-422-000

Unavailable

15

PLATE, METER STAY (NOT AVAILABLE)

37610-469-000

Unavailable

16

BOX, PILOT (NOT AVAILABLE)

37611-422-008

Unavailable

17

WIRE A, METER (NOT AVAILABLE)

37612-422-008

Unavailable

18

WIRE B, METER (NOT AVAILABLE)

37613-422-008

Unavailable

19

WIRE C, METER (NOT AVAILABLE)

37614-422-008

Unavailable

20

COVER, METER (LOWER) (NOT AVAILABLE)

37617-422-008

Unavailable

21

CABLE ASSY., SPEEDOMETER

44830-KB4-700

Unavailable

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-010.

44830-KB4-700

Unavailable

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-610.

44830-KB4-700

Unavailable

22

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE)

44831-356-000

Unavailable

23

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

24

BOLT, METER SETTING (NOT AVAILABLE)

90153-422-000

Unavailable

25

WASHER, SPECIAL (4MM) (NOT AVAILABLE)

90555-357-000

Unavailable

26

NUT-WASHER (6MM) (NOT AVAILABLE)

91414-422-000

Unavailable

28

NUT, HEX. (4MM)

94001-04000-0S

$1.49

30

NUT, CAP (5MM)

94021-05070-0S

$1.49

31

WASHER, PLAIN (5MM)

94103-05700

$1.49
