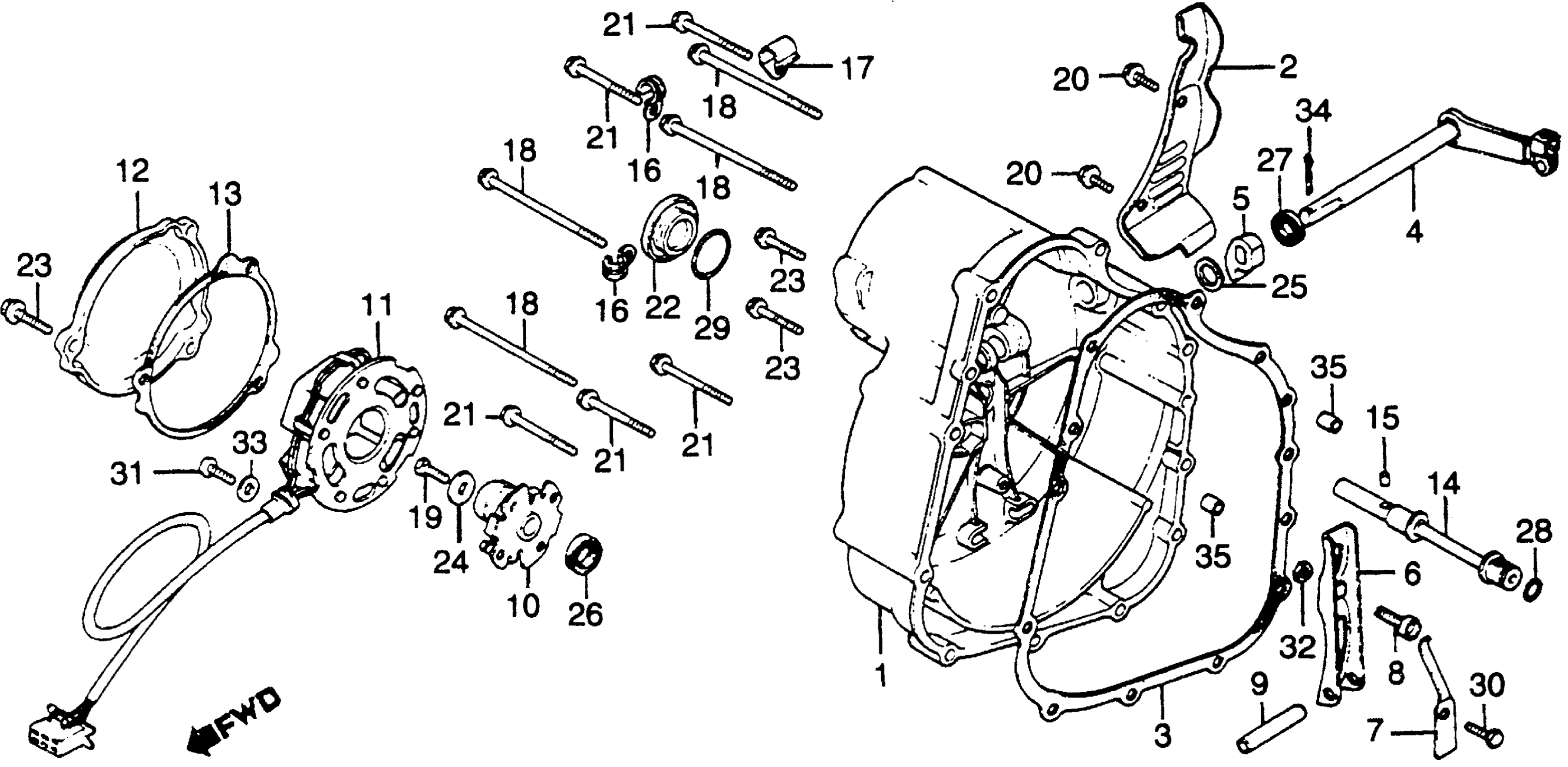

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 RIGHT COVER + ADVANCER Diagram

#

Description
Price

1

COVER, R. (NOT AVAILABLE)

11330-422-000

Unavailable

2

COVER, R. OIL HOSE (NOT AVAILABLE)

11336-469-000

Unavailable

3

GASKET, R. CRANKCASE COVER This part replaces 11394-422-000.

11394-422-306

Unavailable

3

GASKET, R. CRANKCASE COVER

11394-422-306

Unavailable

4

LEVER, CLUTCH (NOT AVAILABLE)

22710-422-000

Unavailable

5

CAM, CLUTCH LIFTER (NOT AVAILABLE)

22821-107-000

Unavailable

6

LEVER, CLUTCH ADJ. (NOT AVAILABLE)

22831-422-000

Unavailable

7

PLATE, CLUTCH (NOT AVAILABLE)

22835-422-000

Unavailable

8

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22841-422-000

Unavailable

9

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-422-000

Unavailable

10

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-469-024

Unavailable

11

GENERATOR ASSY., PULSE (TOYO) (NOT AVAILABLE)

30300-422-004

Unavailable

12

COVER, POINT (NOT AVAILABLE)

30371-422-000

Unavailable

13

GASKET, POINTS COVER This part replaces 30372-422-000.

30372-422-306

Unavailable

13

GASKET, POINTS COVER

30372-422-306

Unavailable

14

SHAFT, ADVANCER (NOT AVAILABLE)

30373-422-010

Unavailable

15

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

16

CLIP, ALTERNATOR CABLE

32921-039-000

$4.75

18

BOLT, FLANGE (6X80)

96000-06080-02

Unavailable

19

BOLT, HEX. (NOT AVAILABLE)

90020-422-000

Unavailable

20

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

20

BOLT, FLANGE (6X10)

96001-06010-02

$1.54

21

BOLT, FLANGE (6X35) This part replaces 96000-06035-02.

96001-06035-02

$1.79

21

BOLT, FLANGE (6X35)

96001-06035-02

$1.79

22

CAP, CLUTCH ADJUSTING (NOT AVAILABLE)

90042-422-000

Unavailable

23

BOLT, FLANGE (6X25) This part replaces 96000-06025-02.

96001-06025-02

$1.49

23

BOLT, FLANGE (6X25)

96001-06025-02

$1.49

24

WASHER, CAMSHAFT SIDE

90417-115-000

$2.84

25

WASHER (10MM) (NOT AVAILABLE)

90471-333-000

Unavailable

26

OIL SEAL (15X24X5) This part replaces 91201-246-003.

91201-246-005

$6.63

26

OIL SEAL (15X24X5)

91201-246-005

$6.63

26

OIL SEAL (15X24X5) This part replaces 91205-VA4-801.

91201-246-005

$6.63

27

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

27

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

28

O-RING (9.8X2.4)

91305-422-000

$2.47

29

O-RING (23.5X2.6)

91305-425-003

$3.69

29

O-RING (23.5X2.6) This part replaces 91305-714-000.

91305-425-003

$3.69

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

31

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

31

SCREW, PAN (6X14)

93500-06014-0A

$1.49

32

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

32

NUT, HEX. (6MM)

94002-06000-0S

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

PIN, SPLIT (2.0X15)

94201-20150

$1.49

35

PIN, DOWEL (6X10)

94301-06100

$2.25
