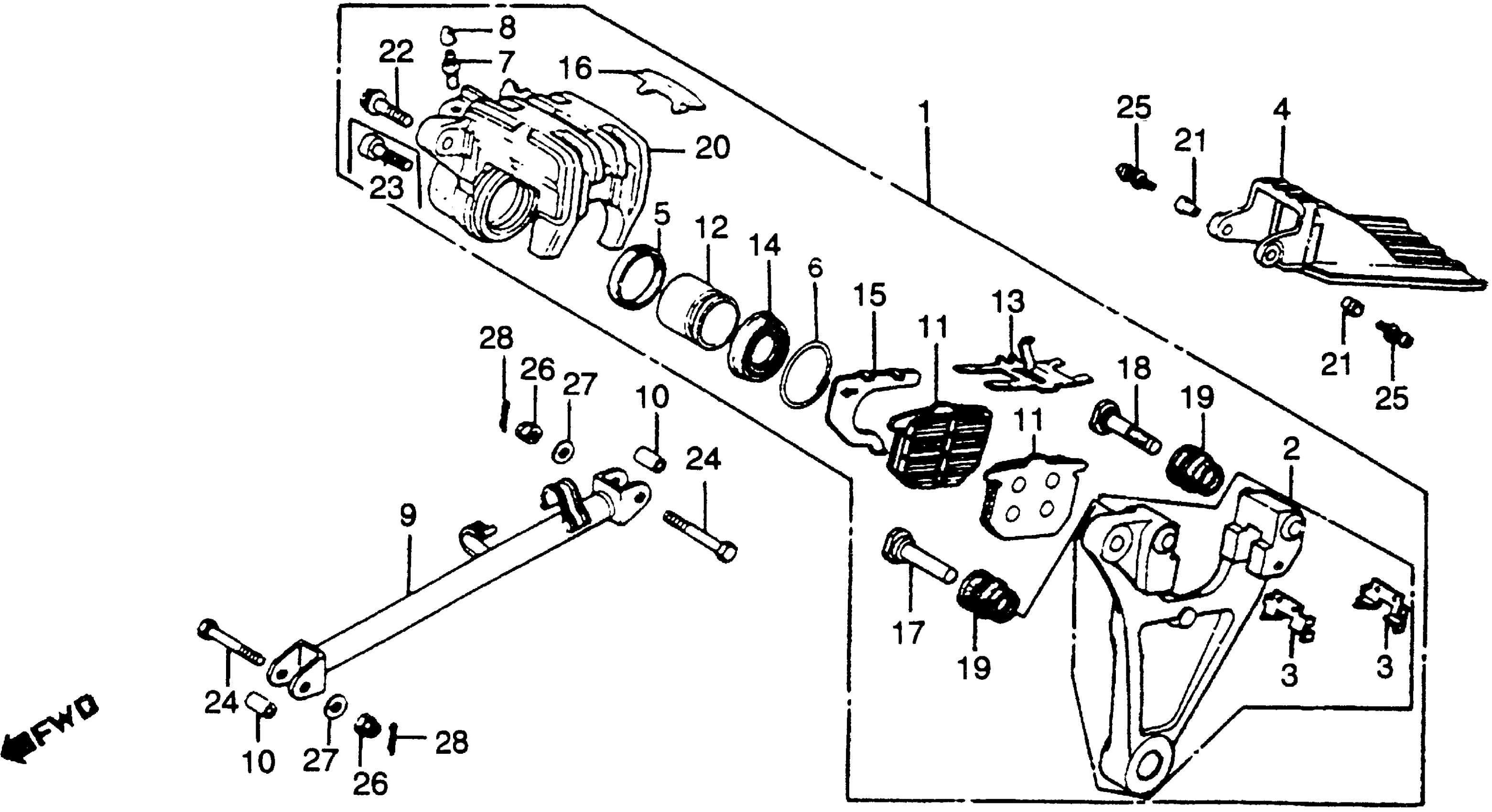

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 REAR BRAKE CALIPER Diagram

PAD SET, BRAKE This part replaces 06435-415-405.

06435-461-405

Unavailable

PAD SET, BRAKE

06435-461-405

Unavailable

PAD SET, BRAKE This part replaces 451A0-415-670.

06435-461-405

Unavailable

CALIPER ASSY., RR. (JB) (NISSHIN)

43100-445-771

Unavailable

BRACKET, RR. (NOT AVAILABLE)

43110-410-006

Unavailable

RETAINER, RR. BRACKET (NISSHIN) (NOT AVAILABLE)

43112-410-006

Unavailable

COVER, RR. DISK (NOT AVAILABLE)

43140-410-000

Unavailable

SEAL, PISTON (38MM)

43209-371-006

$10.85

CLIP, DUST COVER

43218-371-006

$13.86

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER SCREW

43353-548-003

$4.93

LINK, TORQUE (NOT AVAILABLE)

43431-422-000

Unavailable

COLLAR, LINK

43435-392-000

$5.90

PAD (JB) (NISSHIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-415-772

Unavailable

PISTON (NISSHIN) (NOT AVAILABLE)

43107-445-771

Unavailable

SPRING, PAD

45108-415-006

Unavailable

BOOT, PISTON

45109-371-006

$26.38

SHIM B, PAD

45116-371-006

Unavailable

CAP, INDICATOR

45119-371-000

Unavailable

PIN A (NISSHIN) (NOT AVAILABLE)

45131-410-006

Unavailable

PIN B (NISSHIN)

45132-410-006

Unavailable

COVER, DUST

45133-371-006

$7.68

CALIPER, R. (NOT AVAILABLE) This part replaces 45201-410-006.

45201-442-701

Unavailable

CALIPER, R. (NOT AVAILABLE)

45201-442-701

Unavailable

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

BOLT (8X25)

90116-410-006

$6.07

BOLT, RR. BRAKE STOPPER ARM

90124-392-000

Unavailable

SCREW-WASHER (5X18) (NOT AVAILABLE)

93892-05018-07

Unavailable

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, COTTER (2.0X15) This part replaces 94201-20140.

94201-20150

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49
