- CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021
LEVERS + SWITCH + CABLE

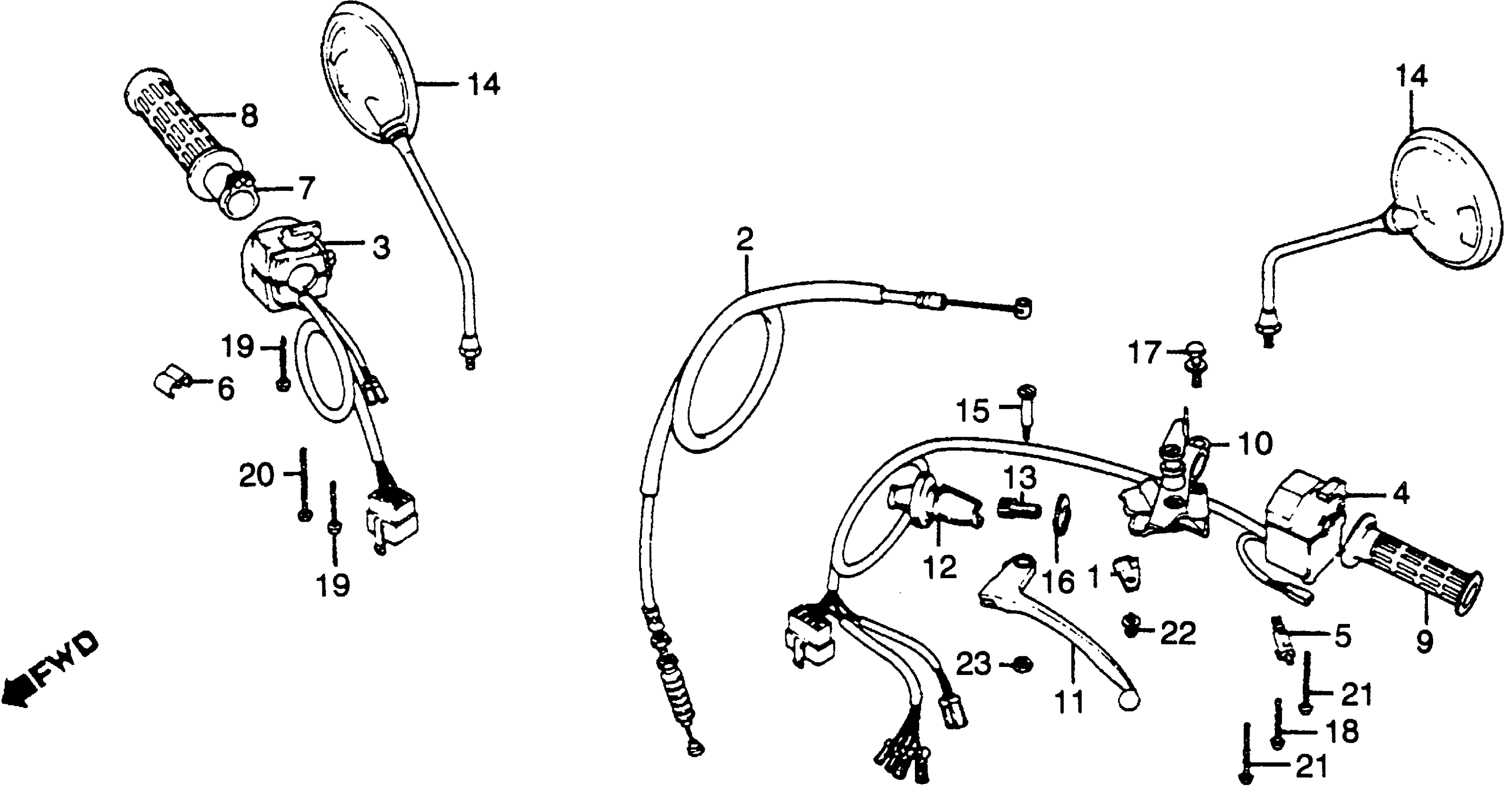

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 LEVERS + SWITCH + CABLE Diagram
#
Description
Price
1
HOLDER, CHOKE CABLE (NOT AVAILABLE)
17963-422-000
Unavailable
2
CABLE, CLUTCH
22870-MG5-405
Unavailable
2
CABLE, CLUTCH This part replaces 22870-422-670.
22870-MG5-405
Unavailable
3
SWITCH ASSY., STARTER STOP (NOT AVAILABLE)
35130-422-672
Unavailable
4
SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)
35200-422-672
Unavailable
6
CLIP, CABLE (NOT AVAILABLE)
46465-422-000
Unavailable
10
BRACKET ASSY., HANDLE LEVER (NOT AVAILABLE) | Use up to Frame SN 2000203
53170-422-010
Unavailable
10
BRACKET ASSY., HANDLE LEVER (NOT AVAILABLE) | Use from Frame SN 2000204
53170-422-020
Unavailable
11
LEVER, L. HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 2000203
53178-422-010
Unavailable
11
LEVER, L. HANDLEBAR | Use from Frame SN 2000204 This part replaces 53178-MC3-700.
53178-MA6-000
$15.60
11
LEVER, L. HANDLEBAR | Use from Frame SN 2000204 This part replaces 53178-422-020.
53178-MA6-000
$15.60
12
BOOT, HANDLEBAR This part replaces 53180-422-010.
53180-422-020
Unavailable
12
BOOT, HANDLEBAR
53180-422-020
Unavailable
13
BOLT, CABLE ADJUSTING
53192-422-000
Unavailable
14
MIRROR, L.
88120-422-000
Unavailable
15
BOLT, L. HANDLEBAR CONTROL LEVER PIVOT BOLT, L. HANDLEBAR LEVER PIVOT | Use up to Frame SN 2000203
90113-422-000
$8.96
16
NUT, FIXING
90321-422-000
Unavailable
17
BOLT-WASHER (6X25)
93401-06025-07
Unavailable
17
BOLT-WASHER (6X25) This part replaces 93481-06025-07.
93401-06025-07
Unavailable
