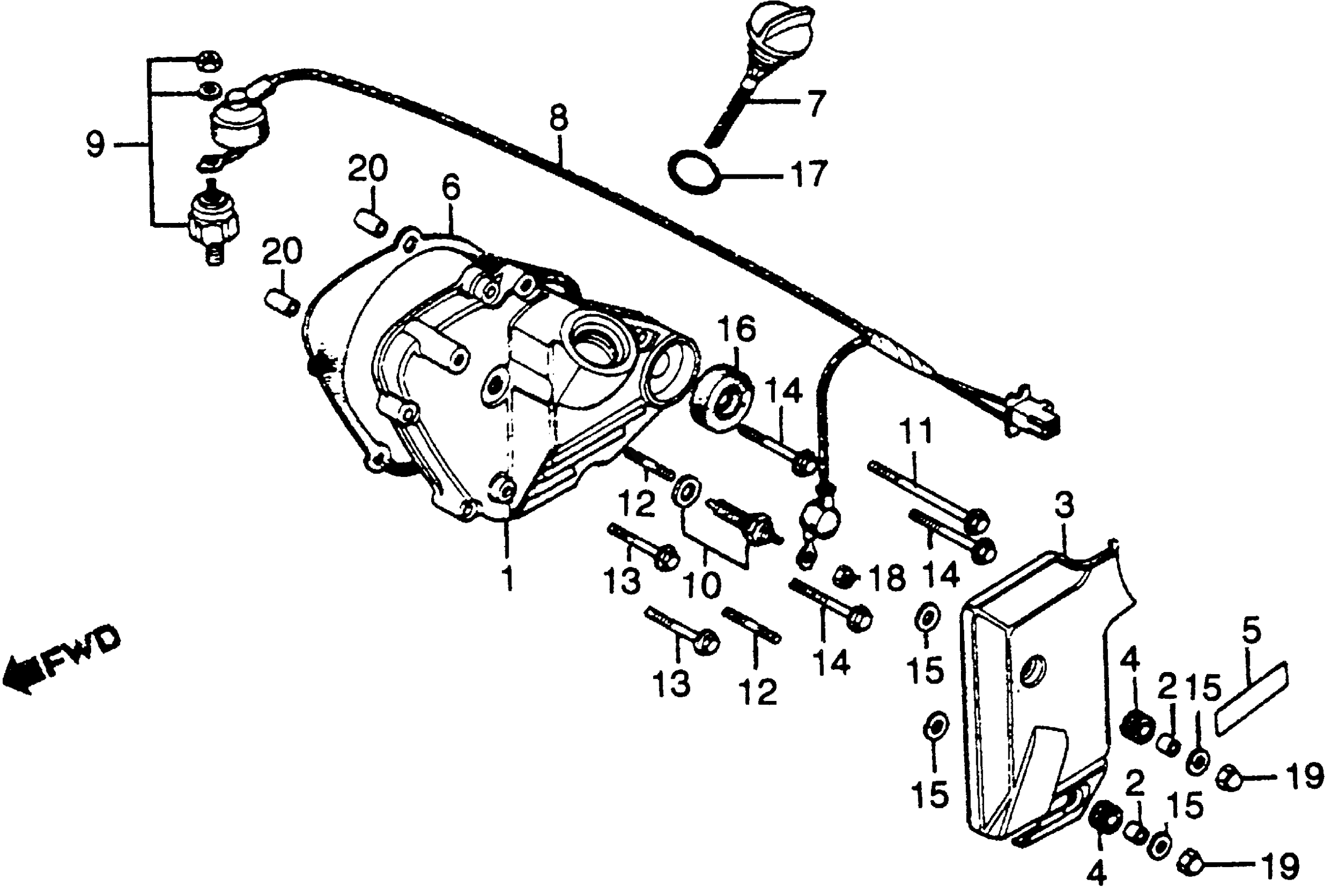

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 LEFT COVER Diagram

COVER, L. (NOT AVAILABLE)

11341-422-000

Unavailable

COLLAR, ADJUSTING COVER

11346-371-300

$10.56

COVER, L. OIL HOSE (NOT AVAILABLE)

11346-422-000

Unavailable

GROMMET, ADJUSTING COVER

11347-371-300

$1.95

LABEL, OIL LEVEL GAUGE CAUTION (NOT AVAILABLE)

11347-422-000

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11395-422-000.

11395-422-306

Unavailable

GASKET, L. CRANKCASE COVER

11395-422-306

Unavailable

DIPSTICK, OIL (NOT AVAILABLE)

15650-422-000

Unavailable

SUB-WIRE, OIL PRESSURE SWITCH (NOT AVAILABLE)

32974-422-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$44.49

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

SWITCH ASSY., NEUTRAL (TEC)

35600-MM5-003

$18.90

SWITCH ASSY., NEUTRAL (TEC) This part replaces 35600-422-003.

35600-MM5-003

$18.90

SWITCH ASSY., NEUTRAL (TEC) This part replaces 35600-422-013.

35600-MM5-003

$18.90

SWITCH ASSY., NEUTRAL (TEC) This part replaces 35600-422-023.

35600-MM5-003

$18.90

BOLT, FLANGE (6X55) This part replaces 96000-06055-02.

96001-06055-02

$2.36

BOLT, STUD (6X25) (NOT AVAILABLE)

90022-422-000

Unavailable

BOLT, FLANGE (6X28) This part replaces 96000-06028-02.

96001-06028-02

$1.95

BOLT, FLANGE (6X28)

96001-06028-02

$1.95

BOLT, FLANGE (6X35) This part replaces 96000-06035-02.

96001-06035-02

$1.79

BOLT, FLANGE (6X35)

96001-06035-02

$1.79

WASHER, HOSE COVER

90439-422-000

Unavailable

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-006.

91206-286-013

$3.01

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (21.5X3.2)

91307-425-003

$2.59

NUT, HEX. (4MM)

94001-04000-0S

$1.49

NUT, CAP (6MM)

94021-06020

$1.73

PIN, DOWEL (8X14)

94301-08140

$2.25
