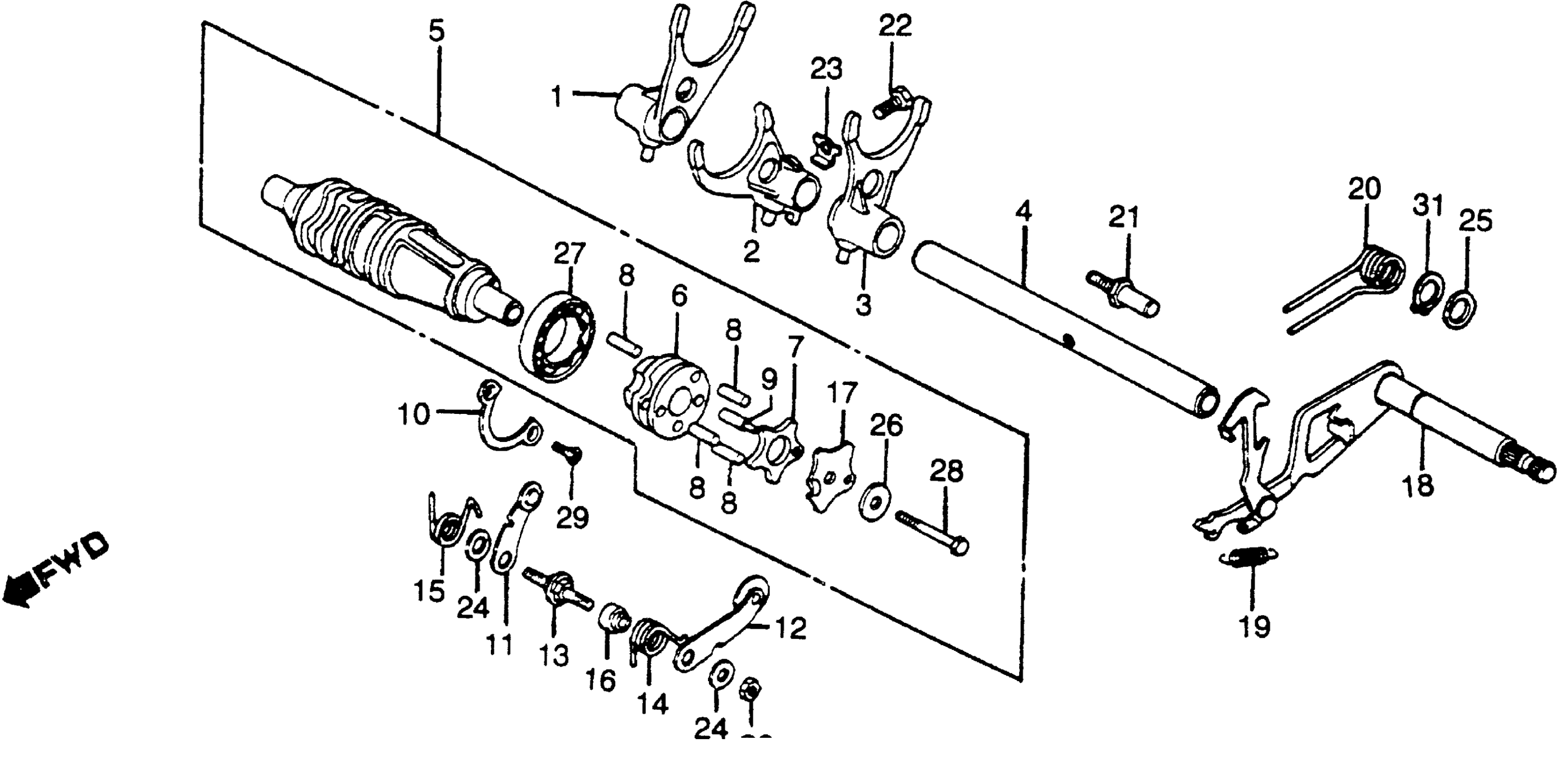

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-422-000

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24212-422-000

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-422-000

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-422-000

Unavailable

5

DRUM ASSY., GEARSHIFT (NOT AVAILABLE)

24300-422-000

Unavailable

6

CENTER, GEARSHIFT DRUM (NOT AVAILABLE)

24303-422-300

Unavailable

7

PLATE, DRUM STOPPER CAM (NOT AVAILABLE)

24305-422-000

Unavailable

8

PIN, GEARSHIFT DRUM (NOT AVAILABLE)

24306-235-300

Unavailable

9

PIN, GEARSHIFT DRUM (4MM) (NOT AVAILABLE)

24308-422-000

Unavailable

10

PLATE, GEARSHIFT DRUM SETTING (NOT AVAILABLE)

24320-422-000

Unavailable

11

ARM, NEUTRAL STOPPER (NOT AVAILABLE)

24420-422-000

Unavailable

12

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-329-030

Unavailable

13

SHAFT, SHIFT DRUM STOPPER (NOT AVAILABLE)

24434-329-010

Unavailable

14

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-422-000

Unavailable

15

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24436-422-000

Unavailable

16

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24437-422-000

Unavailable

17

PLATE, STOPPER ROLLER (NOT AVAILABLE)

24439-422-000

Unavailable

18

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-422-000

Unavailable

19

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-422-000

Unavailable

20

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-300-020

Unavailable

21

PIN, SHIFT RETURN SPRING (NOT AVAILABLE)

24652-300-000

Unavailable

22

BOLT, SPECIAL (8X18) (NOT AVAILABLE)

90041-422-000

Unavailable

23

WASHER, LOCK (8MM)

90406-422-000

$2.63

24

WASHER, SHIFT DRUM STOPPER

90453-292-010

$5.03

25

WASHER (14MM)

90451-155-000

$3.78

25

WASHER (14MM) This part replaces 90454-500-000.

90451-155-000

$3.78

26

WASHER (6X19) (NOT AVAILABLE)

90481-259-000

Unavailable

27

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

28

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

28

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

29

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

29

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

CIRCLIP, OUTER (14MM)

94510-14000

$1.49
