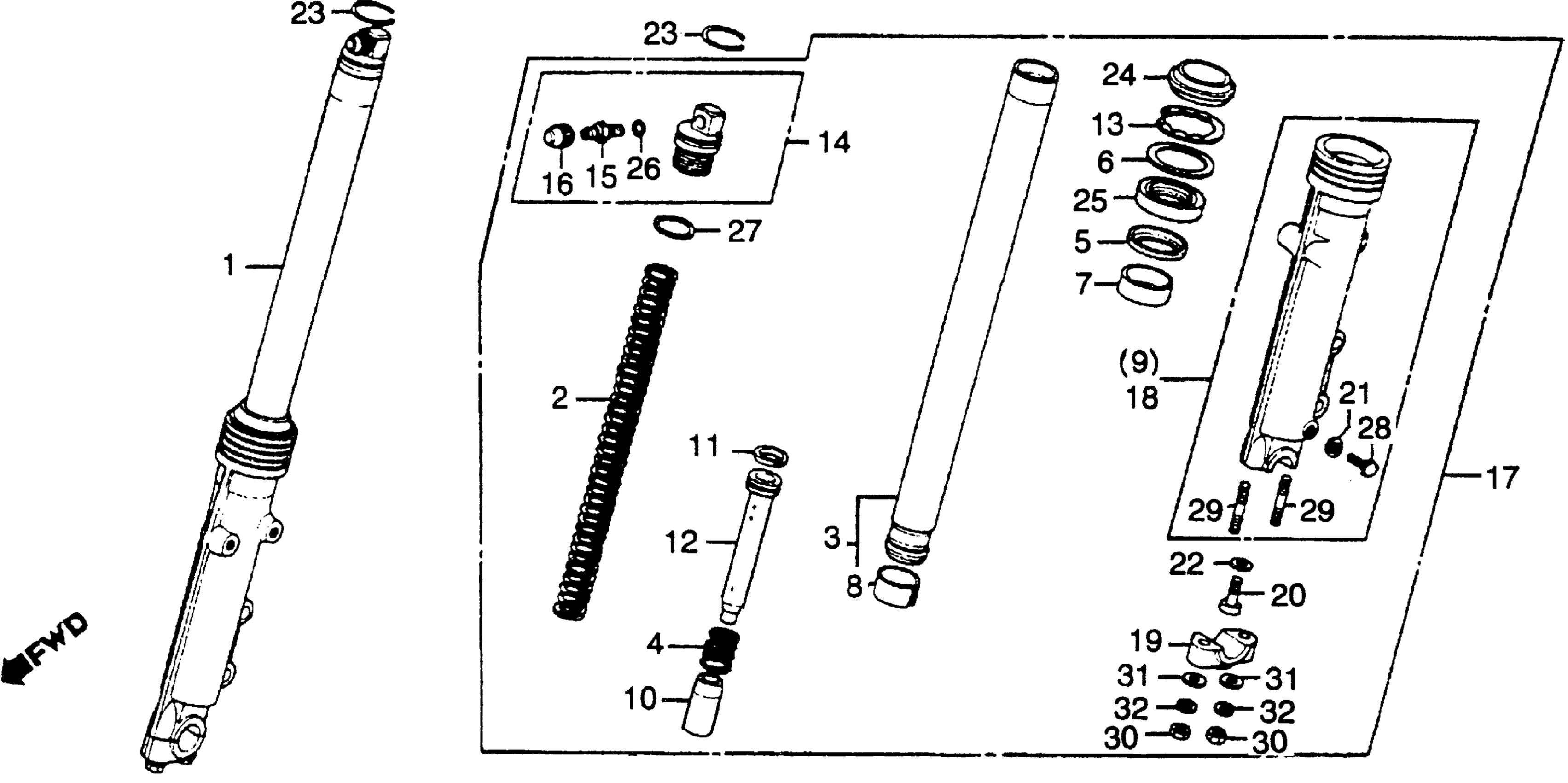

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 FRONT FORK 80 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-469-003

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-438-003

Unavailable

3

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE) This part replaces 51410-469-003.

51410-469-013

Unavailable

3

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-469-013

Unavailable

4

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

5

RING, BACK-UP

51412-422-003

$7.49

5

RING, BACK-UP This part replaces 51412-422-405.

51412-422-003

$7.49

5

RING, BACK-UP This part replaces 51412-428-305.

51412-422-003

$7.49

5

RING, BACK-UP This part replaces 51412-428-315.

51412-422-003

$7.49

6

PLATE, BACK-UP (SHOWA)

51413-469-003

Unavailable

7

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$19.63

8

BUSH, SLIDER (SHOWA)

51415-469-003

Unavailable

9

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-469-003

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

11

RING, PISTON

51437-400-771

$6.30

12

PIPE, SEAT (SHOWA) (NOT AVAILABLE)

51440-469-003

Unavailable

13

CIRCLIP (INNER) (51.5MM)

51447-469-003

$4.17

14

BOLT ASSY., FR. FORK (NOT AVAILABLE) This part replaces 51454-469-003.

51454-469-013

Unavailable

14

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51454-469-013

Unavailable

15

VALVE, AIR (SHOWA) This part replaces 51456-469-003.

51456-469-013

$33.69

15

VALVE, AIR

51456-469-013

$33.69

16

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

17

FORK ASSY., L. FR. This part replaces 51500-469-003.

51500-469-033

Unavailable

17

FORK ASSY., L. FR. This part replaces 51500-469-023.

51500-469-033

Unavailable

18

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51521-469-003

Unavailable

19

HOLDER 1B, FR. FORK AXLE (NOT AVAILABLE) This part replaces 51634-410-003.

95014-41100

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

20

BOLT, SOCKET (8X27)

90116-383-721

$5.13

21

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

RING, SNAP (31.4MM) (NOT AVAILABLE)

90601-469-000

Unavailable

24

DUST SEAL (35MM) This part replaces 91254-400-771.

91254-434-003

$13.96

24

DUST SEAL (35MM) (SHOWA)

91254-434-003

$13.96

25

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

25

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

26

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

26

O-RING (5.8X1.9) O-RING (5.6X1.9) (ARAI)

91305-323-000

$2.92

26

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

27

O-RING (25.7X28) (SHOWA)

91356-428-003

$3.60

28

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

29

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

29

BOLT, STUD (8X50)

92900-08028-3B

$1.59

30

NUT, HEX. (8MM)

94030-08000

$1.49

31

WASHER, PLAIN (8MM)

94101-08000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49
