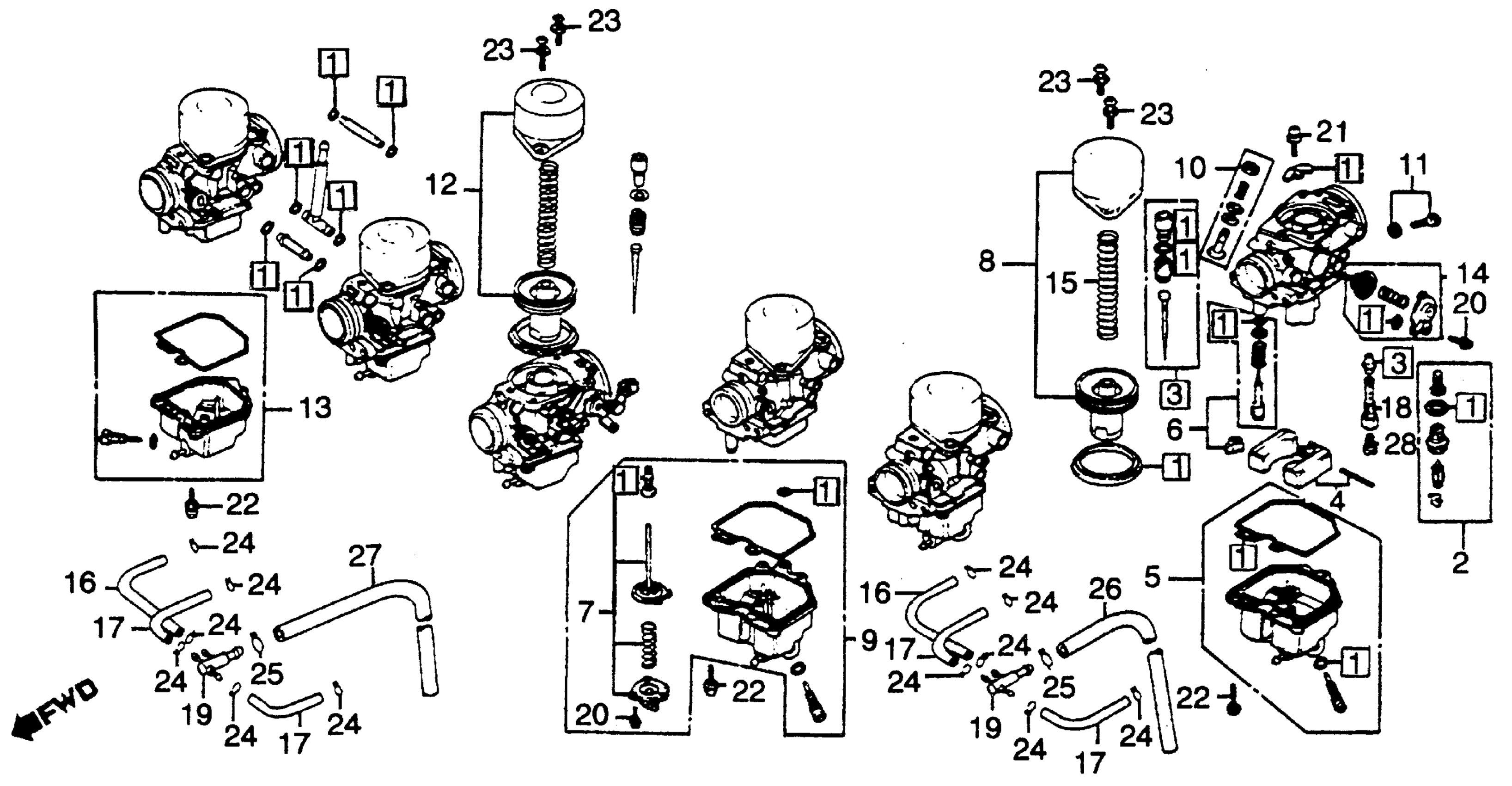

Honda CBXA (80) SUPER SPORT, JPN, VIN# SC03-2000021 CARBURETOR COMP. PARTS 80 Diagram

#

Description
Price

1

GASKET SET

16010-469-004

Unavailable

2

VALVE SET, FLOAT

16011-422-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-469-004

Unavailable

4

FLOAT SET

16013-679-005

Unavailable

5

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-422-004

Unavailable

6

SCREW SET A

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-428-771.

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-469-004.

16016-KC2-970

$25.35

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-422-004

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-469-004.

16044-469-004

Unavailable

8

PISTON SET, VACUUM

16044-469-004

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-422-004

Unavailable

10

SCREW SET C (NOT AVAILABLE)

16029-PC6-005

Unavailable

10

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

11

SCREW SET D (NOT AVAILABLE)

16038-422-004

Unavailable

12

PISTON SET, VACUUM

16044-469-004

Unavailable

13

CHAMBER SET C, FLOAT (NOT AVAILABLE)

16045-422-004

Unavailable

14

VALVE SET, AIR CUT (NOT AVAILABLE)

16048-MA2-004

Unavailable

14

VALVE SET, AIR CUT (NOT AVAILABLE) This part replaces 16048-422-004.

16048-MA2-004

Unavailable

15

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-422-004

Unavailable

16

TUBE, FUEL This part replaces 16143-469-004.

16199-KG4-405

$9.49

16

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

16

TUBE, FUEL (3.5X120)

16199-KG4-405

$9.49

17

TUBE, FUEL (3.5X60) (NOT AVAILABLE)

16144-469-004

Unavailable

18

HOLDER, NEEDLE JET

16165-417-004

$24.74

19

JOINT, TUBE (NOT AVAILABLE)

16310-469-000

Unavailable

20

SCREW-WASHER (4X12)

93892-04012-00

$1.49

21

SCREW-WASHER (4X12)

93892-04014-00

$1.49

22

SCREW-WASHER (4X16)

93892-04016-00

$1.49

23

SCREW-WASHER (5X16)

93892-05016-00

$1.49

24

CLIP, TUBE (B7)

95002-02070

$1.80

25

CLIP, TUBE (B10)

95002-02100

$1.90

26

BULK HOSE, VACUUM (8X8000) (8X430)

95005-80008-10M

Unavailable

27

BULK HOSE, VACUUM (8X1000) (8X560)

95005-80001-20M

$23.91

28

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

28

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

28

JET (#110) This part replaces 99102-393-1100.

99101-MBA-1100

$9.11
