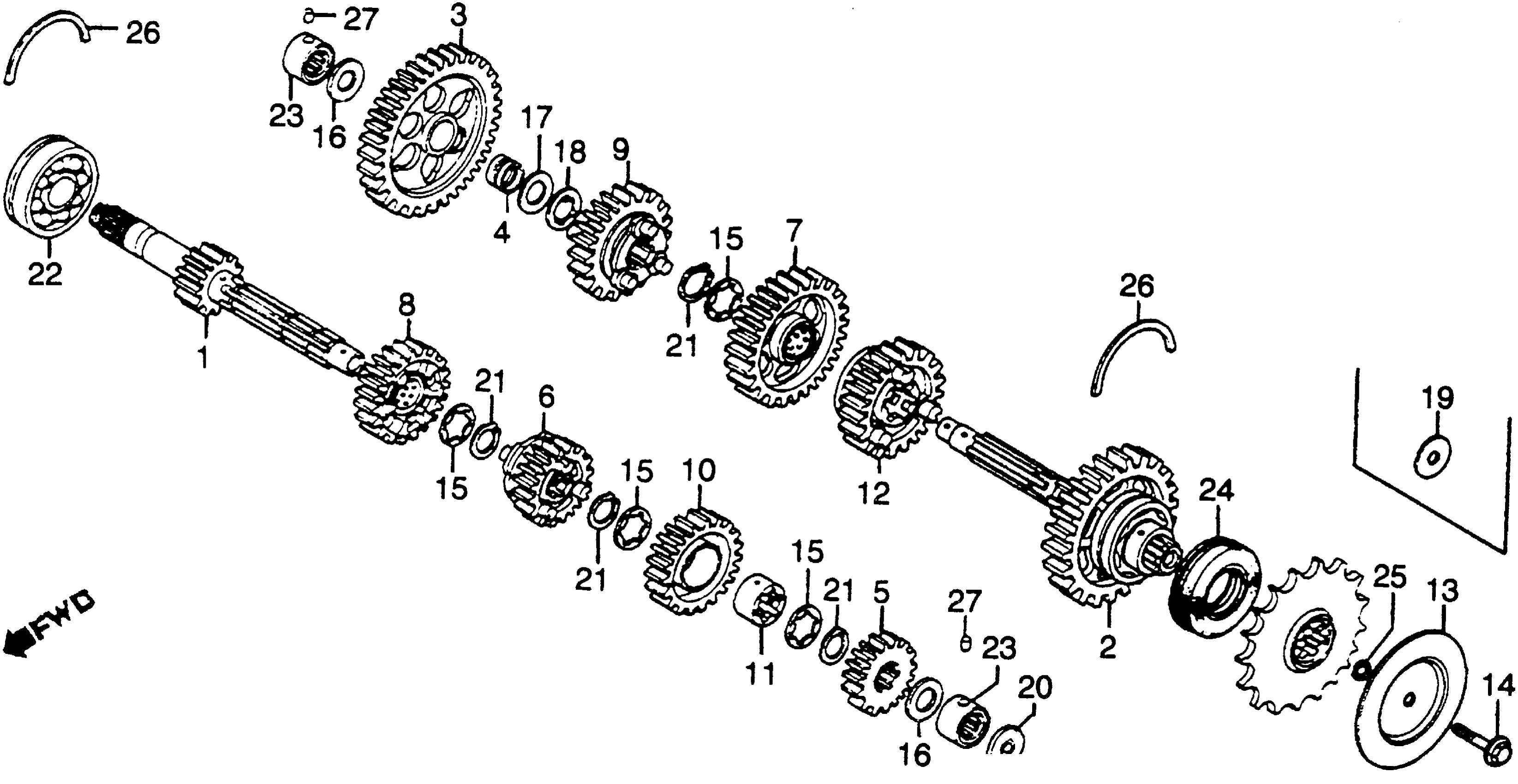

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (16T) (NOT AVAILABLE)

23211-422-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (35T) (NOT AVAILABLE)

23220-422-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (39T) (NOT AVAILABLE)

23421-422-000

Unavailable

4

COLLAR (24X17) (NOT AVAILABLE)

23425-422-000

Unavailable

5

GEAR, MAINSHAFT SECOND (20T) (NOT AVAILABLE)

23431-422-000

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) (NOT AVAILABLE) This part replaces 23451-422-000.

23451-422-010

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) (NOT AVAILABLE)

23451-422-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE)

23460-422-000

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE) This part replaces 23470-422-000.

23470-422-010

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE)

23470-422-010

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (30T) (NOT AVAILABLE)

23481-422-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (27T) (NOT AVAILABLE) This part replaces 23491-422-000.

23491-422-010

Unavailable

10

GEAR, MAINSHAFT FIFTH (27T) (NOT AVAILABLE)

23491-422-010

Unavailable

11

COLLAR, SPLINE (28X17) (NOT AVAILABLE)

23495-422-000

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)

23501-422-000

Unavailable

14

BOLT, SPECIAL (10MM) This part replaces 90037-422-000.

90037-422-003

$7.32

14

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

15

WASHER, THRUST (28MM)

90451-422-000

$8.36

16

WASHER, THRUST (22.5MM) (NOT AVAILABLE) This part replaces 90453-704-000.

90453-426-000

Unavailable

17

WASHER, THRUST (24MM) (NOT AVAILABLE)

90455-422-000

Unavailable

18

WASHER, LOCK (24MM) (NOT AVAILABLE)

90456-422-000

Unavailable

19

WASHER (10.2MM) (NOT AVAILABLE)

90459-422-000

Unavailable

20

PLATE, ORIFICE (NOT AVAILABLE)

90558-422-000

Unavailable

21

CIRCLIP (28MM)

90601-422-000

$2.98

22

BEARING, RADIAL BALL (6206) (NOT AVAILABLE)

91006-422-004

Unavailable

23

BEARING, NEEDLE (22MM) (NOT AVAILABLE) | Use from Engine SN 2000232 This part replaces 91022-422-008.

91022-422-004

Unavailable

23

BEARING, NEEDLE (22MM) (NOT AVAILABLE)

91022-422-004

Unavailable

24

OIL SEAL (40X62X13) This part replaces 91205-422-013.

91205-425-003

$32.89

24

OIL SEAL (40X62X13) This part replaces 91205-422-015.

91205-425-003

$32.89

24

OIL SEAL (40X62X13)

91205-425-003

$32.89

25

O-RING (9.8X2.4)

91305-422-000

$2.47

26

SET-RING (62MM) (NOT AVAILABLE) This part replaces 95015-26200.

90602-428-000

Unavailable

26

SET-RING (62MM) (NOT AVAILABLE)

90602-428-000

Unavailable

27

ROLLER (6X10)

96220-60100

$0.53
