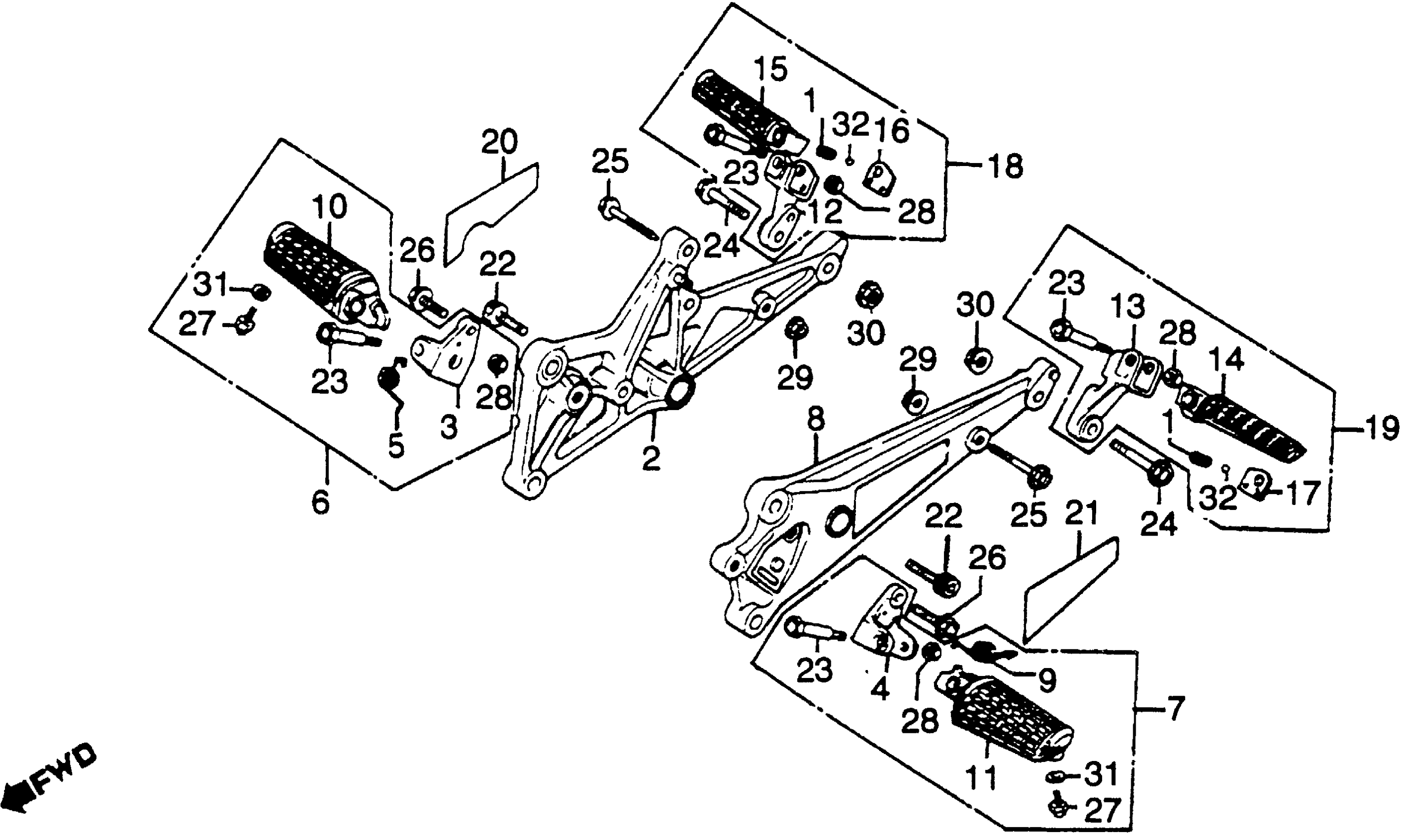

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. STEP (NOT AVAILABLE) | Use up to Frame SN 2006330 This part replaces 50610-422-670.

50610-422-671

Unavailable

2

HOLDER, R. STEP (NOT AVAILABLE)

50610-422-671

Unavailable

3

BRACKET, R. STEP (NOT AVAILABLE)

50613-422-000

Unavailable

4

BRACKET, L. STEP (NOT AVAILABLE)

50614-422-000

Unavailable

5

SPRING, R. FOOTPEG RETURN

50617-MJ4-000

Unavailable

5

SPRING, R. FOOTPEG RETURN This part replaces 50617-422-000.

50617-MJ4-000

Unavailable

6

STEP ASSY., R. (NOT AVAILABLE)

50620-422-000

Unavailable

7

STEP ASSY., L. (NOT AVAILABLE)

50630-422-000

Unavailable

8

HOLDER, L. STEP (NOT AVAILABLE) | Use up to Frame SN 2006330 This part replaces 50640-422-670.

50640-422-671

Unavailable

8

HOLDER, L. STEP (NOT AVAILABLE)

50640-422-671

Unavailable

9

SPRING, L. FOOTPEG RETURN This part replaces 50644-422-000.

50644-MJ4-000

Unavailable

10

ARM, R. STEP (NOT AVAILABLE)

50660-422-000

Unavailable

11

ARM, L. STEP (NOT AVAILABLE)

50670-422-000

Unavailable

12

BRACKET, R. PILLION STEP (NOT AVAILABLE)

50711-422-000

Unavailable

13

BRACKET, L. PILLION FOOTPEG (NOT AVAILABLE)

50712-422-000

Unavailable

14

ARM, L. PILLION STEP (NOT AVAILABLE)

50714-422-000

Unavailable

15

ARM, R. PILLION STEP

50717-422-000

Unavailable

16

PLATE, R. PILLION FOOTPEG CLICK (NOT AVAILABLE)

50718-422-000

Unavailable

17

PLATE, L. PILLION FOOTPEG CLICK (NOT AVAILABLE)

50719-422-000

Unavailable

18

STEP ASSY., R. PILLION (NOT AVAILABLE)

50720-422-000

Unavailable

19

STEP ASSY., L. PILLION (NOT AVAILABLE)

50730-422-000

Unavailable

20

LABEL, MUFFLER CAUTION (NOT AVAILABLE)

87504-422-671

Unavailable

21

LABEL, DRIVE CHAIN CAUTION (NOT AVAILABLE) | Use up to Frame SN 2018205 This part replaces 87507-422-670.

87507-422-671

Unavailable

21

LABEL, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87507-422-671

Unavailable

22

BOLT, SOCKET (10X35) (NOT AVAILABLE)

90109-422-670

Unavailable

23

BOLT, MAIN FOOTPEG PIVOT

90115-422-000

Unavailable

24

BOLT, FLANGE (10X50) This part replaces 90176-MA5-000.

96400-10050-00

$2.08

24

BOLT, FLANGE (10X50) This part replaces 90176-422-000.

96400-10050-00

$2.08

24

BOLT, FLANGE (10X50)

96400-10050-00

$2.08

25

BOLT, SPECIAL FLANGE (8X40) (NOT AVAILABLE)

90177-422-000

Unavailable

26

BOLT, SPECIAL FLANGE (10X22) (NOT AVAILABLE)

90182-422-670

Unavailable

27

BOLT, CAP (8X12) This part replaces 92500-08012-0A.

92501-08012-0A

$3.05

27

BOLT, CAP (8X12)

92501-08012-0A

$3.05

28

NUT, HEX. (8MM)

94002-08000-0S

$1.49

29

NUT, FLANGE (8MM)

94050-08080

$1.49

30

NUT, FLANGE (10MM)

94050-10080

$3.24

31

WASHER, PLAIN (8MM)

94102-08000

$1.49

32

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
