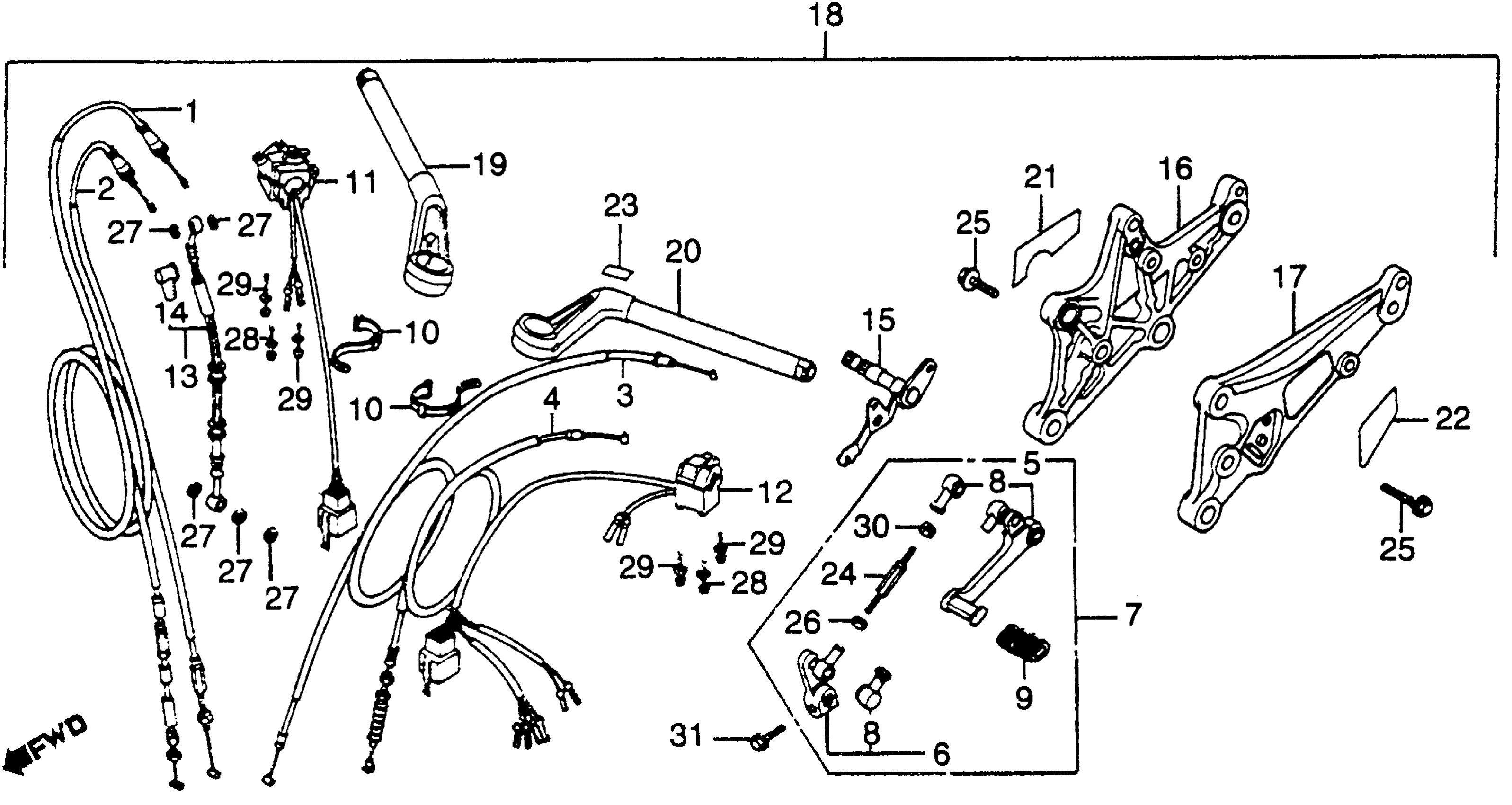

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 SPORTS HANDLEBAR KIT Diagram

#

Description
Price

1

CABLE A, THROTTLE | (Optional).

17910-422-000

Unavailable

2

CABLE B, THROTTLE (NOT AVAILABLE) | (Optional).

17920-422-000

Unavailable

3

CABLE, CHOKE (NOT AVAILABLE) | (Optional).

17950-422-010

Unavailable

4

CABLE, CLUTCH (NOT AVAILABLE) | (Optional).

22870-422-000

Unavailable

5

PEDAL, GEARSHIFT (NOT AVAILABLE) | (Optional).

24700-422-000

Unavailable

6

ARM, GEARSHIFT (NOT AVAILABLE) | (Optional).

24710-422-000

Unavailable

7

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE) | (Optional).

24720-422-000

Unavailable

8

COVER, DUST | (Optional).

24724-422-000

$6.68

9

RUBBER, CHANGE PEDAL | (Optional).

24781-371-000

$5.13

10

BAND B1, WIRE | (Optional).

32161-404-000

$2.23

11

SWITCH ASSY., STARTER STOP (NOT AVAILABLE) | (Optional).

35130-422-812

Unavailable

12

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) | (Optional).

35200-422-812

Unavailable

13

HOSE B, FR. BRAKE (NOT AVAILABLE) HOSE B, FR. BRAKE (NICHIRIN) | (Optional).

45126-422-013

Unavailable

14

BOOT, MASTER CYLINDER | (Optional).

45522-422-000

$8.68

15

SPINDLE, RR. BRAKE (NOT AVAILABLE) | (Optional).

46510-422-000

Unavailable

16

HOLDER, R. STEP (NOT AVAILABLE) | (Optional).

50610-422-010

Unavailable

17

HOLDER, L. STEP (NOT AVAILABLE) | (Optional).

50640-422-010

Unavailable

18

HANDLEBAR KIT, SPORTS (NOT AVAILABLE) | (Optional).

53010-422-815

Unavailable

19

HANDLEBAR ASSY., R. (NOT AVAILABLE) | (Optional). This part replaces 53120-422-000.

53120-422-010

Unavailable

19

HANDLEBAR ASSY., R. (NOT AVAILABLE) | (Optional).

53120-422-010

Unavailable

20

HANDLEBAR ASSY., L. (NOT AVAILABLE) | (Optional). This part replaces 53160-422-000.

53160-422-010

Unavailable

21

LABEL, MUFFLER CAUTION (NOT AVAILABLE) | (Optional).

87504-422-310

Unavailable

21

LABEL, MUFFLER CAUTION (FRENCH) (NOT AVAILABLE) | (Optional).

87504-422-620

Unavailable

22

LABEL, DRIVE CHAIN CAUTION (NOT AVAILABLE) | (Optional). This part replaces 87507-422-670.

87507-422-671

Unavailable

22

LABEL, DRIVE CHAIN CAUTION (NOT AVAILABLE) | (Optional).

87507-422-671

Unavailable

22

LABEL, DRIVE CHAIN CAUTION (FRENCH) (NOT AVAILABLE) | (Optional).

87507-422-720

Unavailable

24

BOLT, TIE ROD (NOT AVAILABLE) | (Optional).

90065-422-000

Unavailable

25

BOLT, SPECIAL FLANGE (10X38) (NOT AVAILABLE) | (Optional).

90178-422-000

Unavailable

26

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) | (Optional).

90201-700-000

$1.49

27

WASHER, OIL BOLT | (Optional).

90545-300-000

$3.99

28

SCREW-WASHER (5X28) | (Optional).

93891-05028-07

$1.49

29

SCREW-WASHER (5X45) | (Optional).

93891-05045-07

$1.49

30

NUT, HEX. (6MM) | (Optional). This part replaces 94002-06020.

94002-06020-0S

$1.49

30

NUT, HEX. (6MM) | (Optional).

94002-06020-0S

$1.49

31

BOLT, FLANGE (6X25) | (Optional). This part replaces 95700-06025-00.

95701-06025-00

$1.80

31

BOLT, FLANGE (6X25) | (Optional).

95701-06025-00

$1.80
