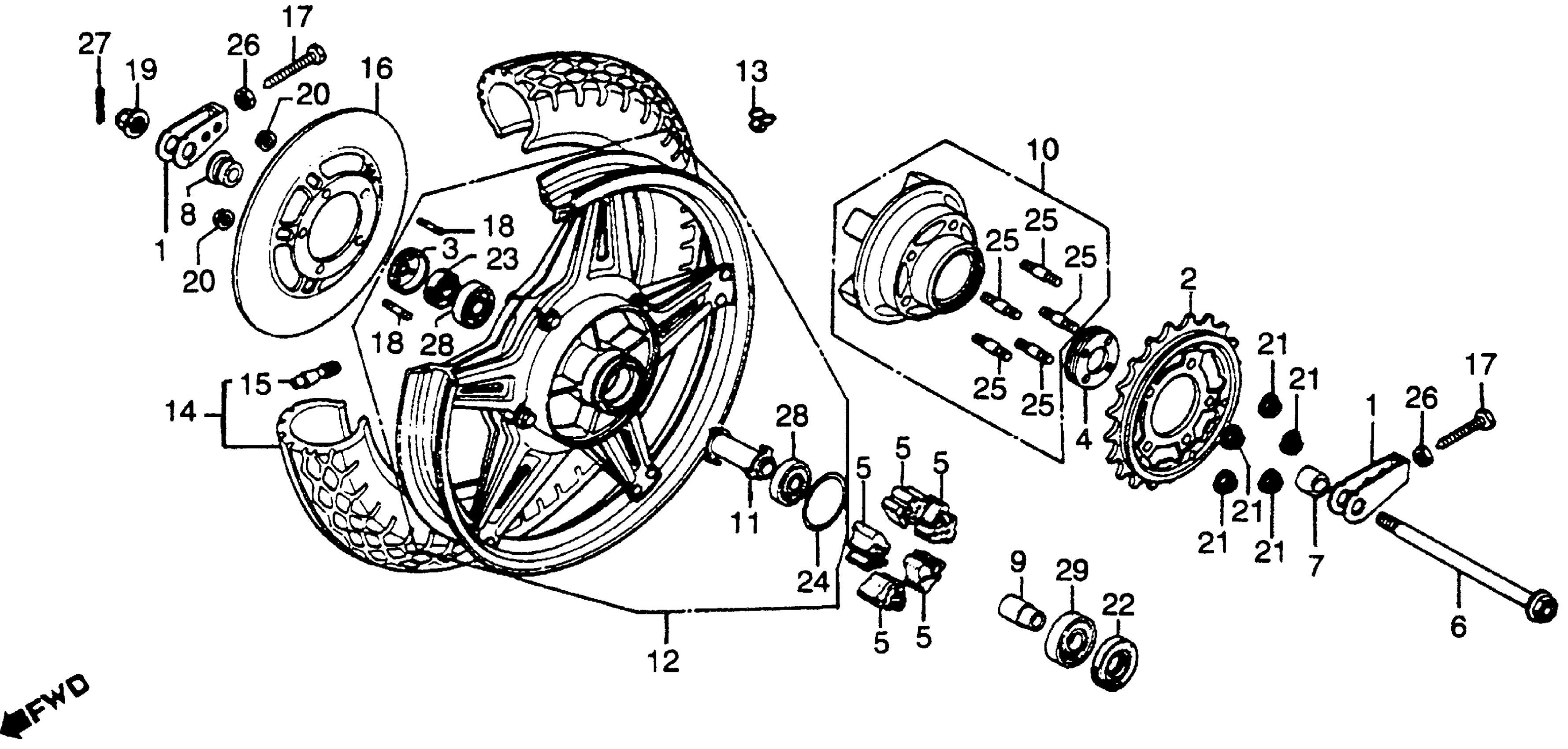

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 REAR WHEEL 79 Diagram

#

Description
Price

1

ADJUSTER, CHAIN (NOT AVAILABLE)

40543-422-000

Unavailable

2

SPROCKET, FINAL DRIVEN (35T) (NOT AVAILABLE)

41200-422-000

Unavailable

2

SPROCKET, FINAL DRIVEN (35T) (NOT AVAILABLE) | (Optional). This part replaces 41200-422-810.

41200-422-000

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

4

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-422-000

Unavailable

5

DAMPER, RR. WHEEL

41241-422-000

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-422-000.

42301-445-000

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-445-000

Unavailable

7

COLR, RR. WHEEL SIDE This part replaces 42311-422-000.

42311-425-700

Unavailable

8

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

9

SLEEVE, RR. AXLE

42605-393-000

Unavailable

10

FLANGE ASSY., FINAL DRIVEN (NOT AVAILABLE)

42610-422-000

Unavailable

11

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-422-010

Unavailable

12

WHEEL, RR. (NOT AVAILABLE) This part replaces 42650-422-305.

42650-422-315

Unavailable

12

WHEEL, RR. (NOT AVAILABLE)

42650-422-315

Unavailable

13

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

13

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

14

TIRE ASSY., RR. (4.25H18) (DUNLOP) (NOT AVAILABLE)

42710-422-672

Unavailable

14

TIRE ASSY., RR. (4.25H18) (4PR) (BS) (NOT AVAILABLE) | Use from Frame SN 2019410

42710-422-673

Unavailable

14

TIRE ASSY., RR. (4.25V18) (DUNLOP) (NOT AVAILABLE) | (Optional).

42710-422-722

Unavailable

14

TIRE ASSY., RR. (4.25V18) (4PR) (BS) (NOT AVAILABLE) | (Optional). Use from Frame SN 2019410

42710-422-723

Unavailable

15

VALVE, RIM (BS)

42753-425-003

$11.00

15

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

16

DISK, RR. BRAKE (NOT AVAILABLE)

43121-422-000

Unavailable

17

BOLT, CHAIN ADJUSTING (NOT AVAILABLE)

90119-422-000

Unavailable

18

BOLT, STUD (8X45) (NOT AVAILABLE)

90125-329-010

$3.26

19

NUT, AXLE (18MM)

90305-393-000

Unavailable

20

NUT, HEX. (8MM)

90309-357-000

$3.40

21

NUT, FLANGE (12MM)

90309-375-003

$8.61

22

OIL SEAL (34X55X9)

90753-283-000

$16.11

23

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

24

O-RING (68X2.6)

91258-300-013

$5.84

25

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

26

NUT, HEX. (10MM)

94001-10000-0S

$1.49

27

PIN, SPLIT (4.0X30)

94201-40300

$1.49

28

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

29

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable
