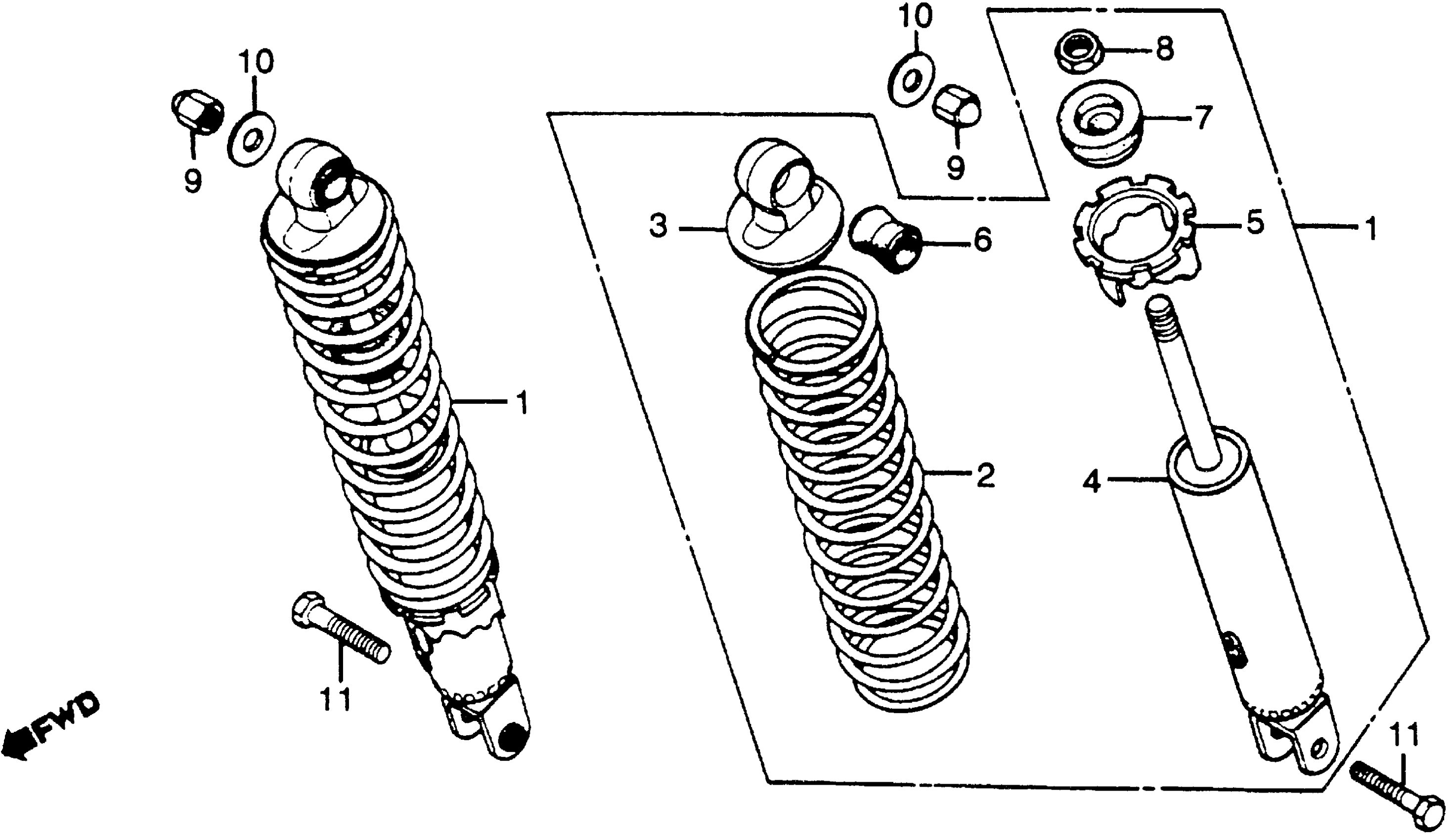

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 REAR SHOCK ABSORBER 79 Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-422-013

Unavailable

2

SPRING, SHOCK ABSORBER (NOT AVAILABLE)

52401-422-013

Unavailable

3

JOINT (UPPER)

52403-410-013

Unavailable

4

DAMPER, RR. (NOT AVAILABLE)

52410-422-003

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE)

52422-422-003

Unavailable

6

RUBBER, JOINT

52484-292-000

$5.61

7

RUBBER, STOPPER (NOT AVAILABLE)

52517-410-003

Unavailable

8

NUT, HEX. (11MM) (NOT AVAILABLE)

90301-376-003

Unavailable

9

NUT, FLANGE (10MM)

90309-315-000

Unavailable

10

WASHER (10.3MM)

90521-292-000

$3.26

11

BOLT, HEX. (10X32) This part replaces 93200-10032-0B.

93201-10032-0B

$2.93

11

BOLT, HEX. (10X32)

93201-10032-0B

$2.93
