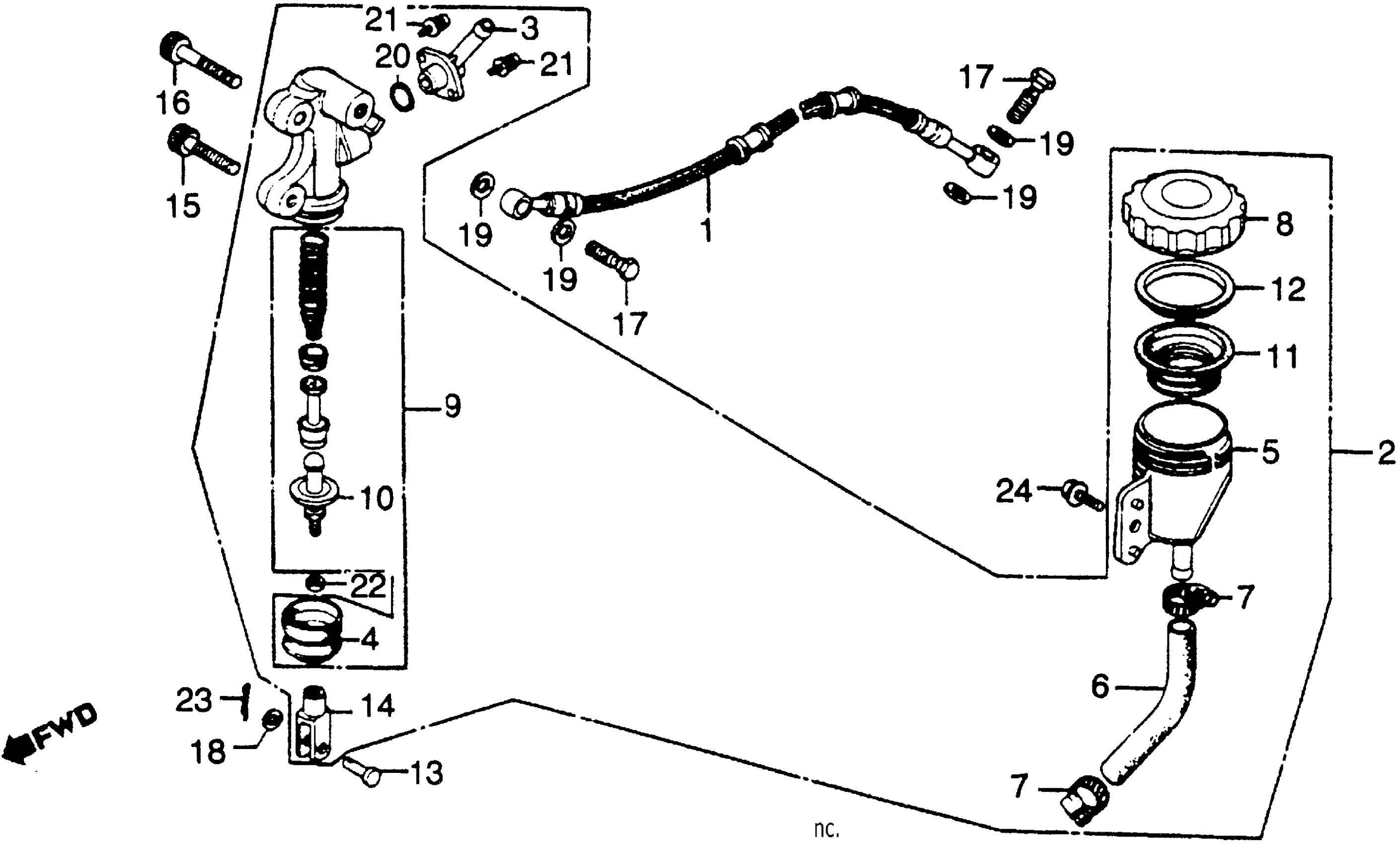

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE (NICHIRIN) (NOT AVAILABLE) This part replaces 43310-422-003.

43310-469-003

Unavailable

MASTER CYLINDER ASSY., RR. (NA USE ALT:43510-422-P00)

43500-422-673

Unavailable

CONNECTOR, MASTER CYLINDER

43503-422-006

Unavailable

BOOT, MASTER CYLINDER

43504-371-013

$9.54

CUP, MASTER CYLINDER OIL This part replaces 43511-422-006.

43511-461-006

Unavailable

CUP, MASTER CYLINDER OIL

43511-461-006

Unavailable

HOSE, MASTER CYLINDER OIL

43512-422-016

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE This part replaces 43513-410-003.

43514-964-006

$17.93

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

$17.93

CAP, OIL CUP

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 43513-422-671.

43513-MJ6-006

Unavailable

MASTER CYLINDER SET

43520-422-305

Unavailable

ROD, PUSH (NOT AVAILABLE)

43530-422-006

Unavailable

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

PIN, BRAKE ROD

46503-371-000

Unavailable

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-371-000

Unavailable

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

BOLT, SOCKET (8X28) This part replaces 90105-422-000.

90105-MA6-750

$5.43

BOLT, SPECIAL SOCKET (NOT AVAILABLE)

90106-422-000

Unavailable

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

WASHER (7X12)

90501-310-000

$1.74

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-00

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
