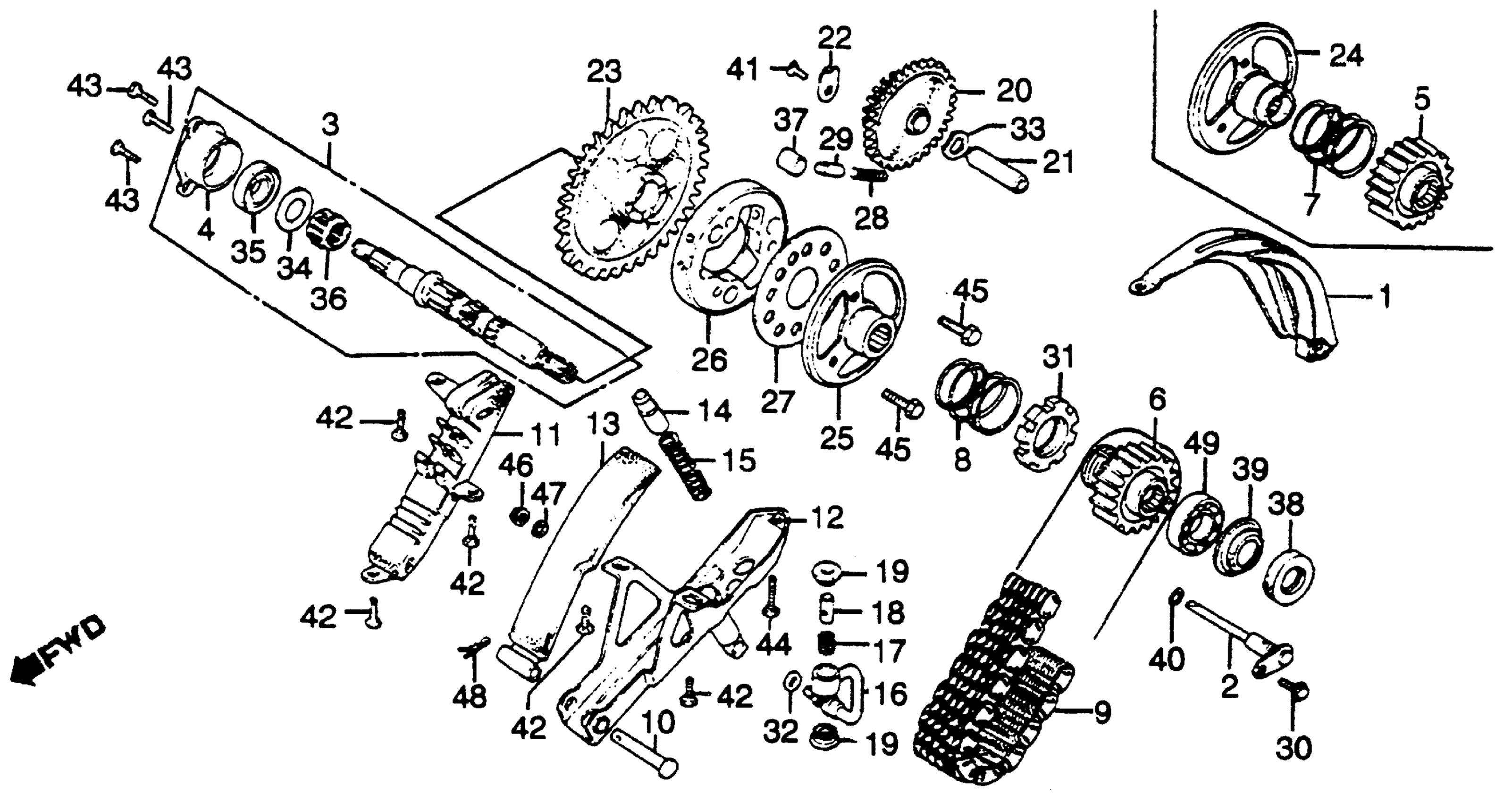

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 PRIMARY SHAFT Diagram

#

Description
Price

1

PLATE, OIL DRIP (NOT AVAILABLE)

11145-422-000

Unavailable

2

NOZZLE, OIL SUPPLY (NOT AVAILABLE)

15511-422-000

Unavailable

3

SHAFT, PRIMARY (NOT AVAILABLE)

23100-422-000

Unavailable

4

HOLDER, PRIMARY SHAFT BEARING (NOT AVAILABLE)

23102-422-000

Unavailable

5

SPROCKET, PRIMARY DRIVEN (23T) (NOT AVAILABLE) | Use up to Engine SN 2020728

23111-422-000

Unavailable

6

SPROCKET, PRIMARY DRIVEN (23T) (NOT AVAILABLE) | Use from Engine SN 2020729 This part replaces 23111-422-010.

23111-422-020

Unavailable

6

SPROCKET, PRIMARY DRIVEN (23T) (NOT AVAILABLE) | Use from Engine SN 2020729

23111-422-020

Unavailable

7

SPRING, PRIMARY SPROCKET SIDE (NOT AVAILABLE) | Use up to Engine SN 2020728

23122-422-000

Unavailable

8

SPRING, PRIMARY SPROCKET SIDE (NOT AVAILABLE) | Use from Engine SN 2020729

23122-422-010

Unavailable

9

CHAIN, PRIMARY (NOT AVAILABLE)

23131-422-004

Unavailable

10

PIN (8X44) (NOT AVAILABLE)

23138-431-000

Unavailable

11

GUIDE, PRIMARY CHAIN (UPPER) (NOT AVAILABLE)

23141-422-000

Unavailable

12

BASE, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23160-422-010

Unavailable

13

GUIDE, PRIMARY CHAIN (LOWER) (NOT AVAILABLE)

23166-422-000

Unavailable

14

BAR ASSY., TENSIONER PUSH (NOT AVAILABLE)

23167-422-010

Unavailable

15

SPRING, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23168-422-000

Unavailable

16

PIPE, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23175-422-000

Unavailable

17

RUBBER, SEAL (NOT AVAILABLE) This part replaces 23176-422-000.

23170-422-305

Unavailable

18

PIN, GUIDE (NOT AVAILABLE)

23177-422-000

Unavailable

19

RUBBER, SEAL (NOT AVAILABLE)

23170-422-305

Unavailable

19

RUBBER, SEAL (NOT AVAILABLE) This part replaces 23178-422-000.

23170-422-305

Unavailable

20

GEAR, STARTER REDUCTION (NOT AVAILABLE)

28101-422-000

Unavailable

21

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-422-000

Unavailable

22

PLATE, IDLE SHAFT STOPPER (NOT AVAILABLE)

28107-422-000

Unavailable

23

GEAR, STARTER CLUTCH (NOT AVAILABLE) This part replaces 28111-422-000.

28111-MA2-000

Unavailable

24

FLANGE, STARTER CLUTCH (NOT AVAILABLE) | Use up to Engine SN 2020728

28115-422-000

Unavailable

25

FLANGE, STARTER CLUTCH (NOT AVAILABLE) | Use from Engine SN 2020729

28115-422-010

Unavailable

26

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-422-000

Unavailable

27

PLATE, STARTER CLUTCH (NOT AVAILABLE)

28124-422-000

Unavailable

28

SPRING, STARTER CLUTCH ROLLER

28125-422-000

Unavailable

29

CAP, STARTER CLUTCH ROLLER SPRING

28126-516-020

$19.34

30

BOLT, FLANGE (6X14) This part replaces 90004-415-000.

96001-06014-00

$1.72

30

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

30

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

31

NUT, PRIMARY SPROCKET LOCK (NOT AVAILABLE) | Use from Engine SN 2020729 This part replaces 90056-422-000.

90056-422-010

Unavailable

31

NUT, PRIMARY SPROCKET LOCK (NOT AVAILABLE) | Use from Engine SN 2020729

90056-422-010

Unavailable

32

WASHER, FUEL FEED PIPE

90416-500-000

Unavailable

33

WASHER, WAVE (10MM)

90435-422-000

$3.44

34

WASHER, SPECIAL (25MM) (NOT AVAILABLE)

90557-422-000

Unavailable

35

BEARING, RADIAL BALL (5205A)

91002-422-008

$68.41

36

BEARING, NEEDLE (27X33X22) (NOT AVAILABLE)

91024-422-000

Unavailable

37

ROLLER (15X16) (NOT AVAILABLE)

91101-422-000

Unavailable

38

OIL SEAL (25X38X7) (NOT AVAILABLE) This part replaces 91201-422-003.

91201-422-005

Unavailable

38

OIL SEAL (25X38X7) (NOT AVAILABLE)

91201-422-005

Unavailable

39

OIL SEAL (25X52) (NOT AVAILABLE)

91209-422-005

Unavailable

40

O-RING (7X1.7)

91312-107-000

$3.18

41

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

41

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

41

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

42

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

42

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

42

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

42

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

42

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

42

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

43

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

43

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

43

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

43

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

44

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

44

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

45

BOLT, HEX. (8X18) This part replaces 92000-08018-0A.

92101-08018-0A

$1.53

45

BOLT, HEX. (8X18)

92101-08018-0A

$1.53

46

NUT, FLANGE (6MM)

94050-06000

$1.49

47

WASHER, PLAIN (6MM)

94101-06800

$1.49

48

PIN, LOCK (8MM)

94251-08000

$1.49

49

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

49

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75
