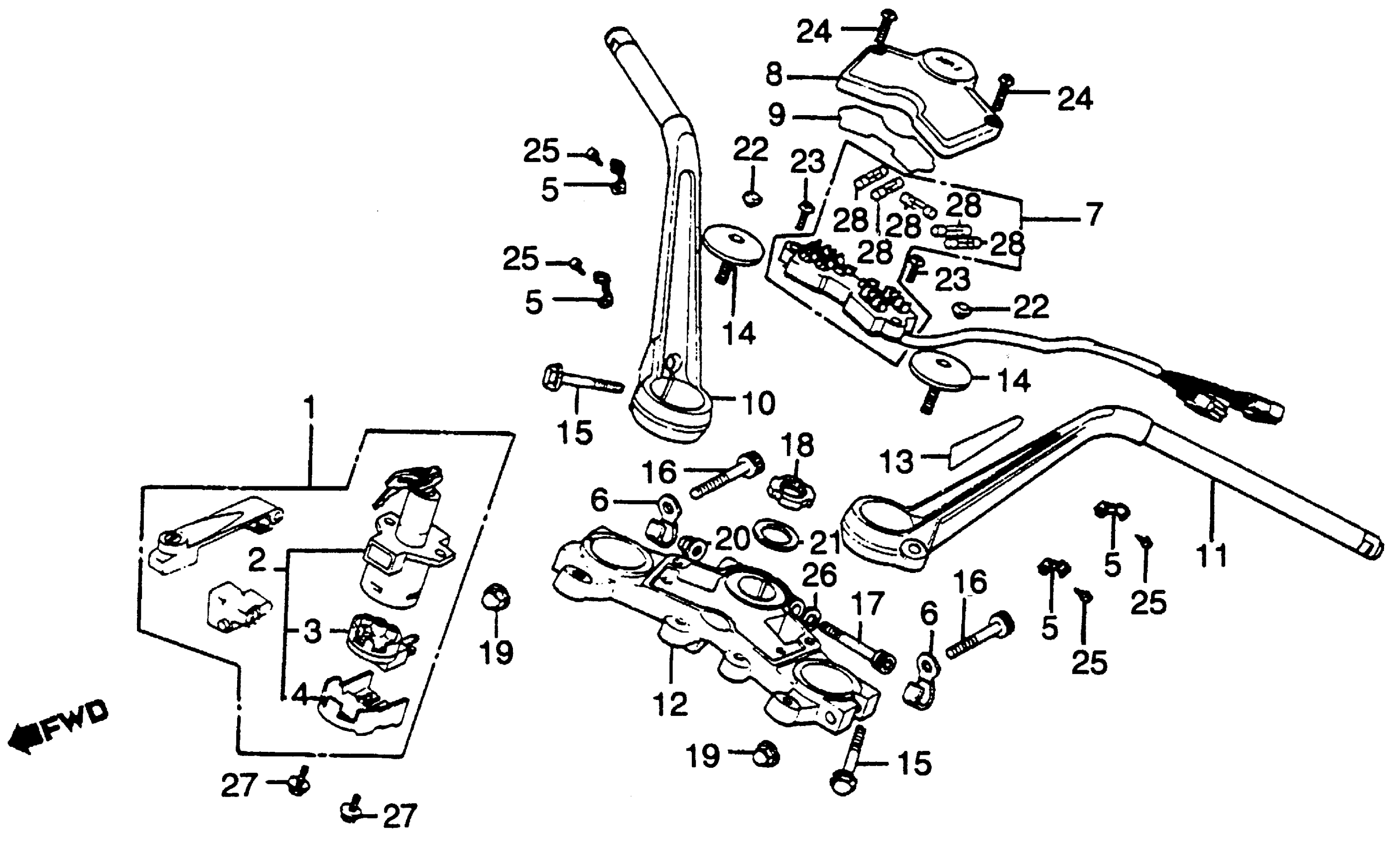

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE) | Use up to Frame SN 2007079 This part replaces 35010-422-000.

35010-449-860

Unavailable

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-422-010.

35010-449-860

Unavailable

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-422-020.

35010-449-860

Unavailable

1

LOCK SET (NOT AVAILABLE)

35010-449-860

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK | Use up to Frame SN 2007079 This part replaces 35100-422-007.

35100-422-017

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK | Use up to Frame SN 2007079

35100-422-017

Unavailable

3

BASE, CONTACT (NOT AVAILABLE)

35101-422-007

Unavailable

4

COVER, SWITCH

35102-431-007

Unavailable

5

CLIP, WIRE (NOT AVAILABLE)

35205-422-000

Unavailable

6

CLAMP, SWITCH WIRE (NOT AVAILABLE)

35210-422-000

Unavailable

7

BOX ASSY., FUSE This part replaces 38200-422-005.

38200-KE8-000

Unavailable

8

COVER, FUSE PLATE (NOT AVAILABLE)

38210-422-000

Unavailable

9

LABEL, FUSE (NOT AVAILABLE) This part replaces 38215-422-000.

38215-MA2-300

Unavailable

10

HANDLEBAR ASSY., R. This part replaces 53120-422-670.

53120-422-671

Unavailable

11

HANDLEBAR ASSY., L. This part replaces 53160-422-670.

53160-422-671

Unavailable

12

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-422-000

Unavailable

14

BOLT, HANDLE SETTING (NOT AVAILABLE)

90107-422-000

Unavailable

15

BOLT, FLANGE (8X40)

90118-VM6-000

$4.85

15

BOLT, FLANGE (8X40) This part replaces 90118-965-000.

90118-VM6-000

$4.85

15

BOLT, FLANGE (8X40) This part replaces 90157-422-000.

90118-VM6-000

$4.85

16

BOLT, SOCKET (7X55)

90167-422-000

Unavailable

17

BOLT, SOCKET (8X75) (NOT AVAILABLE)

90168-422-000

Unavailable

18

NUT, STEERING STEM (NOT AVAILABLE)

90304-371-000

Unavailable

19

NUT, CAP. (7MM) This part replaces 90360-422-000.

90360-428-900

Unavailable

20

NUT, CAP (8MM)

90443-KF9-900

$4.27

20

NUT, CAP (8MM) This part replaces 90443-379-690.

90443-KF9-900

$4.27

21

WASHER, STEERING STEM

90503-283-000

$4.37

22

CAP, SOCKET BOLT

91456-371-770

$3.47

23

SCREW, PAN (5X16)

93500-05016-0A

$1.49

24

SCREW, PAN (5X20)

93500-05020-0G

$1.49

25

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-34180

Unavailable

26

WASHER, PLAIN (8MM)

94102-08700

$1.49

27

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

27

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

28

FUSE B (15A)

98200-21500

$1.49
