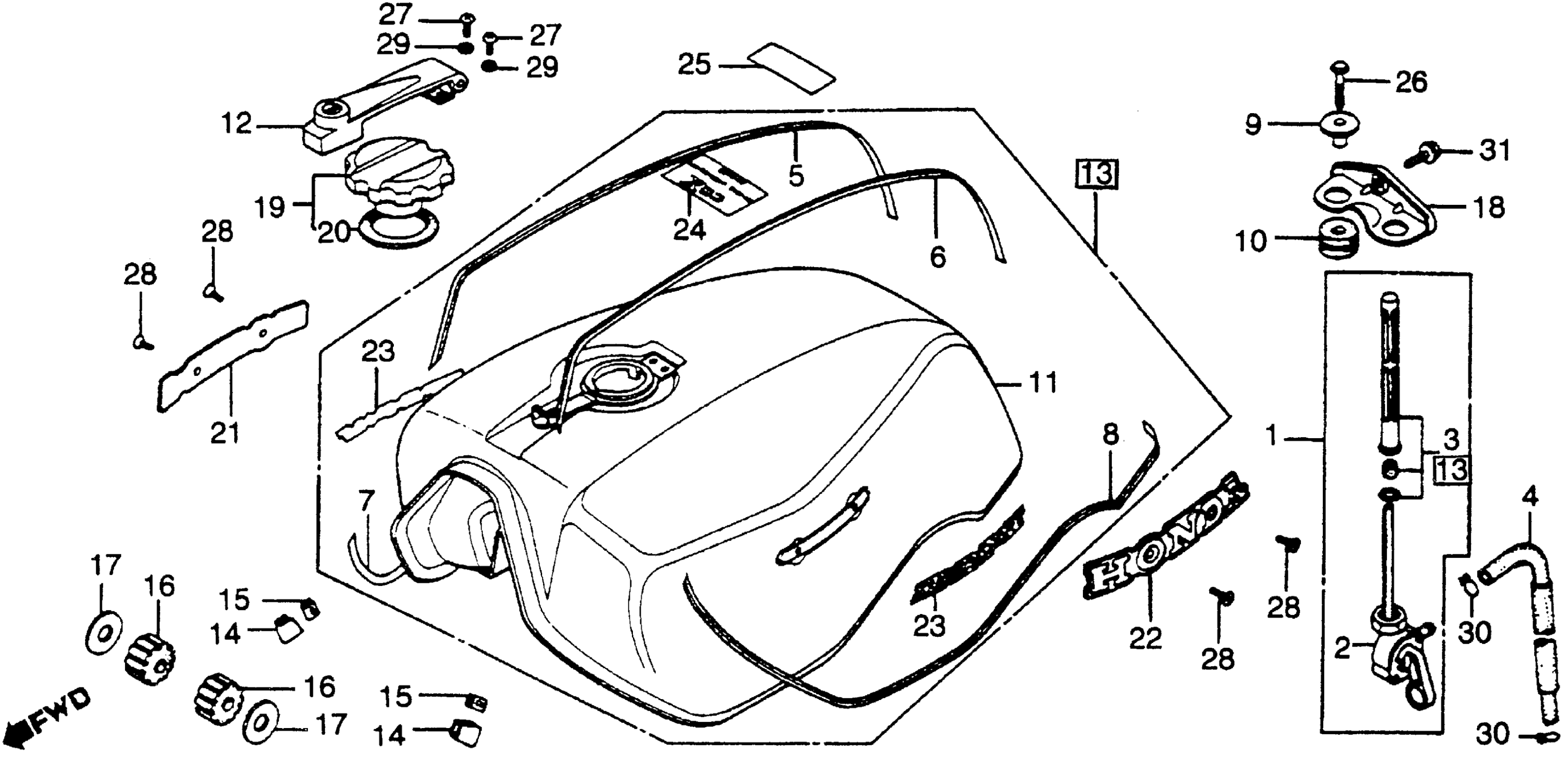

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. | Use up to Frame SN 2012453 This part replaces 16950-422-005.

16950-422-015

Unavailable

1

PETCOCK ASSY. | Use up to Frame SN 2012453

16950-422-015

Unavailable

1

PETCOCK ASSY.

16950-422-015

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE) | (Optional).

16950-469-005

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE) | Use up to Frame SN 2012453 This part replaces 16951-422-005.

16951-422-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE)

16951-422-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE) | (Optional).

16951-469-005

Unavailable

3

FILTER SET, FUEL This part replaces 16952-422-005.

16952-469-005

Unavailable

3

FILTER SET, FUEL

16952-469-005

Unavailable

3

FILTER SET, FUEL | (Optional).

16952-469-005

Unavailable

4

TUBE, FUEL (7.3X190) (NOT AVAILABLE) | (Optional).

16955-469-000

Unavailable

5

STRIPE, R. FUEL TANK (UPPER) (T.M.) (NOT AVAILABLE)

17503-422-300

Unavailable

6

STRIPE, L. FUEL TANK (UPPER) (T.M.) (NOT AVAILABLE)

17504-422-300

Unavailable

7

STRIPE, R. FUEL TANK *A71* (T.M.) (GOLD AND ORANGE) (NOT AVAILABLE)

17506-422-300ZA

Unavailable

7

STRIPE, R. FUEL TANK *A23* (T.M.) (SPECIFIED ORANGE AND BLACK) (NOT AVAILABLE) STRIPE, R. FUEL TANK *A71*

17506-422-300ZB

Unavailable

8

STRIPE, L. FUEL TANK *A71* (T.M.) (GOLD AND ORANGE) (NOT AVAILABLE)

17507-422-300ZA

Unavailable

8

STRIPE, L. FUEL TANK *A23* (T.M.) (SPECIFIED ORANGE AND BLACK) (NOT AVAILABLE) STRIPE, L. FUEL TANK *A71*

17507-422-300ZB

Unavailable

9

COLLAR, RR. TANK (NOT AVAILABLE)

17508-422-000

Unavailable

10

CUSHION, RR. FUEL TANK (NOT AVAILABLE)

17509-422-000

Unavailable

11

TANK SUB-ASSY., FUEL *NH101MU* (PERSEUS SILVER METALLIC-U) (NOT AVAILABLE) This part replaces 17520-422-000ZA.

17520-422-010ZA

Unavailable

11

TANK SUB-ASSY., FUEL *R101CU* (CANDY GLORY RED-U) (NOT AVAILABLE) This part replaces 17520-422-000ZB.

17520-422-010ZB

Unavailable

11

TANK SUB-ASSY., FUEL *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17520-422-000ZC.

17520-422-010ZC

Unavailable

11

TANK SUB-ASSY., FUEL *NH101MU* (PERSEUS SILVER METALLIC-U) (NOT AVAILABLE)

17520-422-010ZA

Unavailable

11

TANK SUB-ASSY., FUEL *R101CU* (CANDY GLORY RED-U) (NOT AVAILABLE)

17520-422-010ZB

Unavailable

11

TANK SUB-ASSY., FUEL *NH1* (BLACK) (NOT AVAILABLE)

17520-422-010ZC

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-422-007.

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-422-017.

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE)

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-611.

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-612.

17530-443-305

Unavailable

14

MOLDING, FR. FUEL TANK

17541-422-000

Unavailable

15

CLIP B, FUEL TANK MOLDING

17545-323-010

Unavailable

16

RUBBER, FR. FUEL TANK (NOT AVAILABLE)

17611-422-000

Unavailable

17

WASHER, FUEL TANK CUSHION (NOT AVAILABLE)

17613-422-000

Unavailable

18

STAY, RR. FUEL TANK (NOT AVAILABLE)

17615-422-000

Unavailable

19

CAP, FUEL FILLER This part replaces 17620-422-023.

17620-469-000

Unavailable

19

CAP, FUEL FILLER This part replaces 17620-449-003.

17620-469-000

Unavailable

19

CAP, FUEL FILLER

17620-469-000

Unavailable

20

GASKET, FUEL FILLER CAP

17632-422-000

Unavailable

21

EMBLEM, R. FUEL TANK | Use up to Frame SN 2006885 This part replaces 87121-422-000.

87121-422-010

Unavailable

21

EMBLEM, R. FUEL TANK | Use up to Frame SN 2006885

87121-422-010

Unavailable

21

EMBLEM, R. FUEL TANK

87121-422-010

Unavailable

22

EMBLEM, L. FUEL TANK | Use up to Frame SN 2006885 This part replaces 87122-422-000.

87122-422-010

Unavailable

22

EMBLEM, L. FUEL TANK | Use up to Frame SN 2006885

87122-422-010

Unavailable

22

EMBLEM, L. FUEL TANK

87122-422-010

Unavailable

23

LABEL, FUEL TANK (T.M.)

87123-422-000

Unavailable

24

LABEL, FUEL TANK TOP (T.M.)

87126-422-000

Unavailable

25

LABEL, DRIVE CAUTION

87560-422-300

Unavailable

26

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

26

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

27

SCREW, PAN (4X6)

93500-04006-0A

$1.49

28

SCREW, OVAL (3X6) SCREW, OVAL (4X6)

93700-03006-0G

$1.49

29

WASHER, SPRING (4MM)

94111-04000

$1.49

30

CLIP, TUBE (B12) | (Optional).

95002-02120

$2.00

31

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

31

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80
