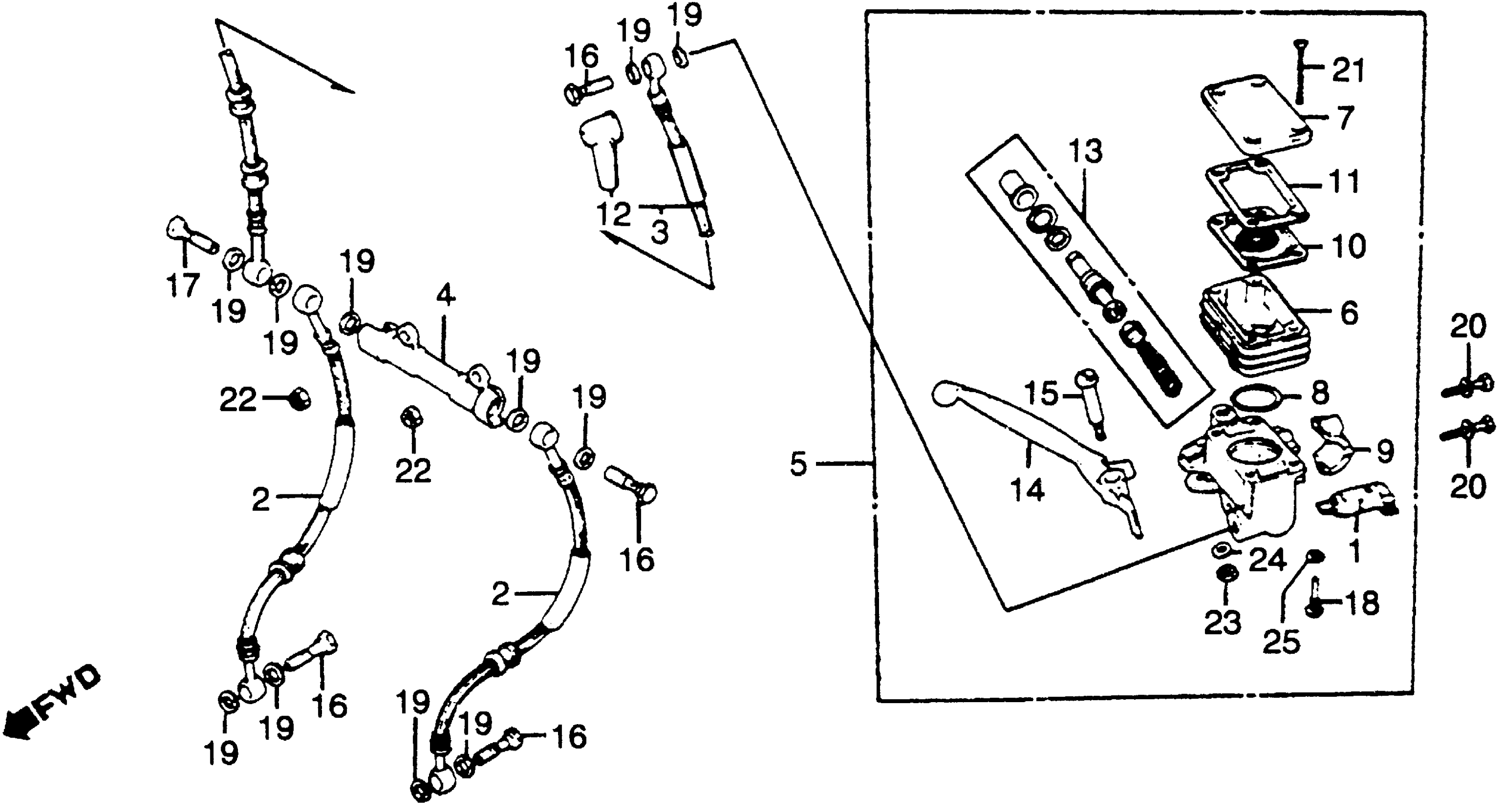

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP This part replaces 35340-422-003.

35340-422-013

$17.65

1

SWITCH ASSY., FR. STOP

35340-422-013

$17.65

2

HOSE A, FR. BRAKE (NICHIRIN) (NOT AVAILABLE) This part replaces 45125-422-013.

45125-469-003

Unavailable

3

HOSE B, FR. BRAKE (NICHIRIN) (NOT AVAILABLE) This part replaces 45126-422-672.

45126-469-671

Unavailable

4

JOINT (TWO-WAY) (NOT AVAILABLE)

45127-422-003

Unavailable

5

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-422-405) | Use up to Frame SN 2009211 This part replaces 45500-422-671.

45500-422-674

Unavailable

5

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-422-405) This part replaces 45500-422-672.

45500-422-674

Unavailable

5

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-422-405)

45500-422-674

Unavailable

6

CUP, OIL | Use up to Frame SN 2009211 This part replaces 45511-422-006.

45511-463-006

Unavailable

6

CUP, OIL | Use up to Frame SN 2009211 This part replaces 45511-422-016.

45511-463-006

Unavailable

6

CUP, OIL This part replaces 45511-422-016.

45511-463-006

Unavailable

6

CUP, OIL | Use up to Frame SN 2009211

45511-463-006

Unavailable

6

CUP, OIL

45511-463-006

Unavailable

7

CAP SET, OIL CUP CAP, OIL CUP This part replaces 45513-422-671.

45519-422-671

Unavailable

7

CAP SET, OIL CUP CAP, OIL CUP

45519-422-671

Unavailable

8

O-RING (39.7X3.5)

45516-422-006

$9.13

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

9

HOLDER, MASTER CYLINDER This part replaces 45517-422-006.

45517-MA5-671

$29.30

10

DIAPHRAGM This part replaces 45520-422-006.

45520-422-026

Unavailable

10

DIAPHRAGM This part replaces 45520-422-016.

45520-422-026

Unavailable

10

DIAPHRAGM

45520-422-026

Unavailable

11

PLATE, DIAPHRAGM

45521-422-006

Unavailable

12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

13

MASTER CYLINDER SET, FR. This part replaces 45530-422-305.

45530-463-305

Unavailable

13

MASTER CYLINDER SET, FR.

45530-463-305

Unavailable

14

LEVER, R. HANDLEBAR This part replaces 53175-422-000.

53175-438-010

Unavailable

14

LEVER, R. HANDLEBAR This part replaces 53175-438-000.

53175-438-010

Unavailable

14

LEVER, R. HANDLEBAR

53175-438-010

Unavailable

15

BOLT, R. HANDLEBAR CONTROL LEVER PIVOT (NOT AVAILABLE)

90114-422-000

Unavailable

16

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

16

BOLT, OIL

90145-300-010

$9.68

17

BOLT, OIL This part replaces 90145-422-010.

90145-422-020

Unavailable

18

SCREW, PAN (4X13.5) (NOT AVAILABLE)

90183-422-000

Unavailable

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

BOLT-WASHER (6X25)

93401-06025-07

Unavailable

20

BOLT-WASHER (6X25) This part replaces 93481-06025-07.

93401-06025-07

Unavailable

21

SCREW, FLAT (4X37) SCREW, CAP (4X35)

93600-04037-1G

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

23

NUT, HEX. (6MM)

94002-06000-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (4MM)

94111-04000

$1.49
