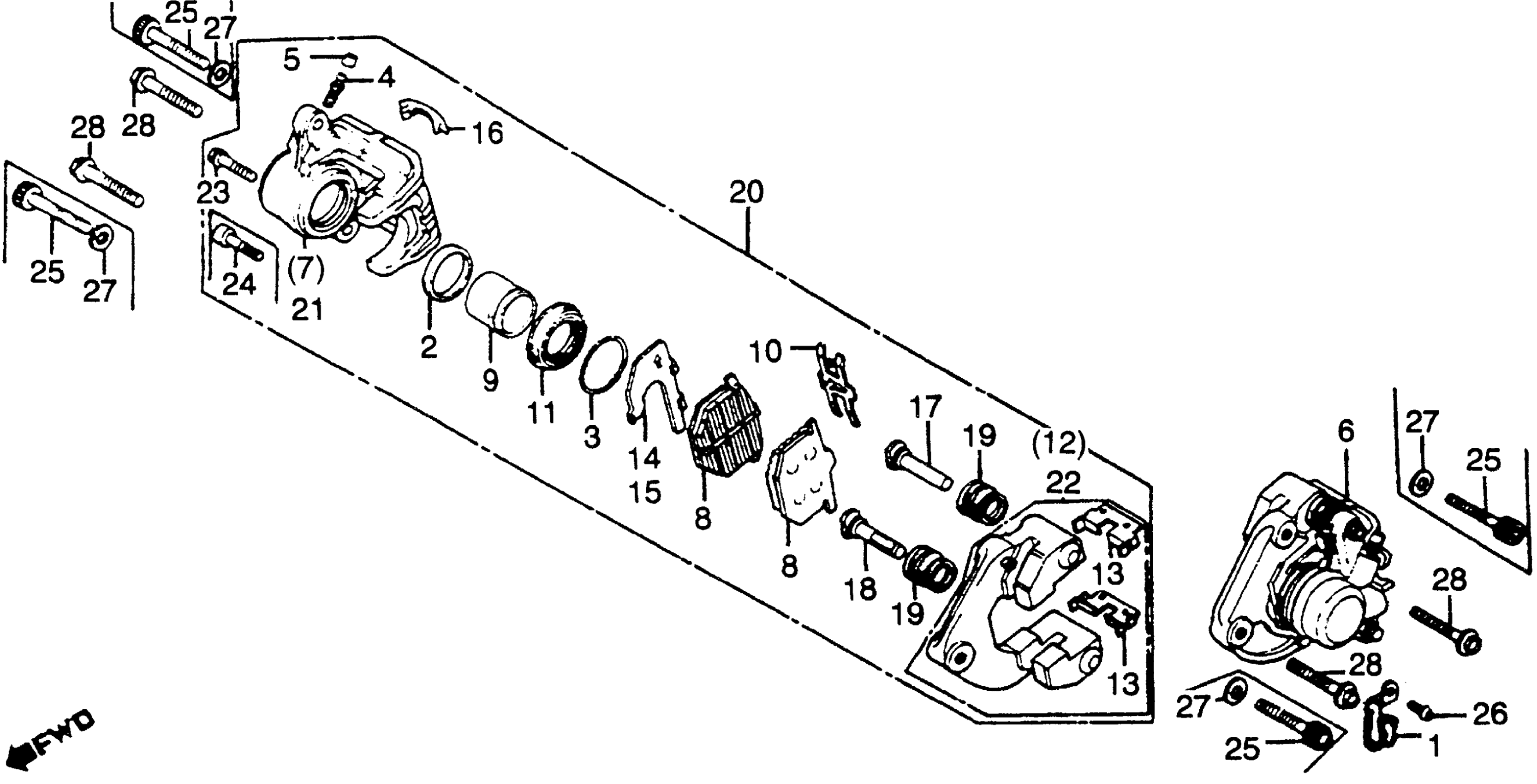

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, BRAKE This part replaces 06455-371-405.

06455-410-406

Unavailable

NI

PAD SET, BRAKE This part replaces 06455-422-405.

06455-410-406

Unavailable

NI

PAD SET, BRAKE This part replaces 431A0-422-670.

06455-410-406

Unavailable

1

CLIP, CABLE

32906-049-000

Unavailable

2

SEAL, PISTON

43209-431-671

$12.28

3

CLIP, DUST COVER

43218-371-006

$13.86

4

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

5

CAP, BLEEDER SCREW

43353-548-003

$4.93

6

CALIPER ASSY., L. FR. (NOT AVAILABLE) CALIPER ASSY., L. FR. (JB) | Use up to Frame SN 2011455 This part replaces 45100-422-016.

45100-422-026

Unavailable

6

CALIPER ASSY., L. FR. (NOT AVAILABLE) CALIPER ASSY., L. FR. (JB)

45100-422-026

Unavailable

7

CALIPER, L. (NOT AVAILABLE) | Use up to Frame SN 2011455 This part replaces 45101-415-006.

45101-415-026

Unavailable

7

CALIPER, L. (NOT AVAILABLE) This part replaces 45101-415-016.

45101-415-026

Unavailable

7

CALIPER, L. (NOT AVAILABLE)

45101-415-026

Unavailable

8

PAD COMP This part replaces 45105-410-004.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-007.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-026.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-305.

45105-410-005

Unavailable

9

PISTON

45107-415-006

Unavailable

10

SPRING, PAD

45108-415-006

Unavailable

11

BOOT, PISTON

45109-371-006

$26.38

12

BRACKET, L. FR. (NOT AVAILABLE) This part replaces 45110-422-006.

45110-422-016

Unavailable

12

BRACKET, L. FR. (NOT AVAILABLE)

45110-422-016

Unavailable

13

RETAINER, BRACKET

45112-410-006

Unavailable

14

SHIM A, PAD

45114-371-006

Unavailable

15

SHIM B, PAD

45116-371-006

Unavailable

16

CAP, INDICATOR

45119-371-000

Unavailable

17

PIN A (NISSHIN) (NOT AVAILABLE)

45131-410-006

Unavailable

18

PIN B (NISSHIN)

45132-410-006

Unavailable

19

COVER, DUST

45133-371-006

$7.68

20

CALIPER ASSY., R. FR. (NOT AVAILABLE) CALIPER ASSY., R. FR. (JB) | Use up to Frame SN 2011455 This part replaces 45200-422-016.

45200-422-026

Unavailable

20

CALIPER ASSY., R. FR. (NOT AVAILABLE) CALIPER ASSY., R. FR. (JB)

45200-422-026

Unavailable

21

CALIPER, R. (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN 2011455 This part replaces 45201-422-006.

45201-422-026

Unavailable

21

CALIPER, R. (NISSHIN) (NOT AVAILABLE) This part replaces 45201-422-016.

45201-422-026

Unavailable

21

CALIPER, R. (NISSHIN) (NOT AVAILABLE)

45201-422-026

Unavailable

22

BRACKET, R. FR. (NOT AVAILABLE) This part replaces 45210-422-006.

45210-422-016

Unavailable

22

BRACKET, R. FR. (NOT AVAILABLE)

45210-422-016

Unavailable

24

BOLT, SOCKET (8X23)

90116-422-006

Unavailable

25

BOLT, SOCKET (10X32) (NOT AVAILABLE)

90164-422-000

Unavailable

26

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

26

SCREW, PAN (6X8)

93500-06008

$1.49

26

SCREW, PAN (6X8)

93500-06008-0A

$1.49

26

SCREW, PAN (6X8)

93500-06008-0H

$1.49

26

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

27

WASHER, PLAIN (10MM)

94102-10700

$1.49
